ETC/Elec Theatre Controls S4WRDFB-A-1
Source 4WRD LED Light Engine with Barrell in White with Edison Connector

OUR PART #:  S4WRDFB-A-1

NOTE: Actual product is white and may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.
Learn More
Our Price: $972.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls S4WRDFB-A-1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NOTE: Actual product is white and may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

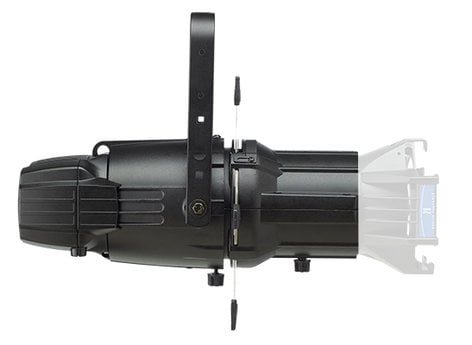

The ETC S4WRDFB is a combination of ETC's full-size, tungsten Source Four light fixture with the Source 4WRD Watt Reduction Device kit. The Source 4WRD replaces the standard Source Four burner assembly to convert the HPL source to a white-light LED, which provides a significant reduction in power consumption. This model, the S4WRDFB-A-1 is the Source 4WRD LED Light Engine with Barrell in White that comes with an Edison (Parallel-blade U-ground) connector.

With the Source 4WRD installed, this light is theatrically dimmable via DMX or line dimmable – with a traditional LED curve – to allow flexibility for your installation. Plus, since this light is an LED source, it will run cool and efficiently without the need for regular lamp replacements. This model comes terminated with a parallel blade U-ground connector.

ETC S4WRDFB Includes:

  • Source Four fixture body
  • Source 4WRD retrofit kit
  • Barrel
  • C-Clamp

ETC S4WRDFB Features:

  • Same optics, same accessories, same flexibility as Source Four fixture
  • As bright as a 575-watt, extended life HPL lamp
  • 70% less power, no re-lamping, no-hassle swap out

ETC S4WRDFB Specifications:

  • Physical:
    • Rugged, die cast aluminum construction
    • Seven segment display for simple DMX setup
    • Two button user interface
    • Easy mounting with single screw attachment
    • Replaces Source Four burner assembly
    • IP20 rating for indoor use only
    • UL and cUL Listed
      • UL1598C
  • Electrical:
    • 114-125V, 60 Hz
    • 155 Watt draw at full (182 Watt theoretical max draw)
    • 30,000 hour L70 rating (ETC estimate)
    • DMX in and thru via RJ45 connector (DMX is not self-terminating)
    • AC and DMX dimmable
    • Two fixtures per circuit (D20 module) when using AC dimming
    • 14 fixtures per non-dim circuit (R20 module) when using DMX dimming
    • Inrush: 30A (first half-cycle) at 120V
    • Typical Power Consumption at 120V:
      • Idle Power / Current:
        • DMX Mode: 1.2W/0.046A
        • AC Mode: 0W
      • Full Intensity Power / Current: 155.7W/1.35A
  • Optical:
    • Tool free field adjustment
    • LED lamp consisting of four CREE LED modules
      • LED lamp is fragile and should not be touched
    • 3000K, 80CRI output
    • Uses the Source Four ellipsoidal's existing reflector and optical system
  • Thermal:
    • 41° F to 104° F operating range (5° to 40° C)
      • Fixture must be above freezing temperatures for one hour before being energized
    • Quiet fan cooling
    • Fixture is designed for continuous operation up to 104° F (40° C) ambient temperature and requires free flow of air around fixture housing
