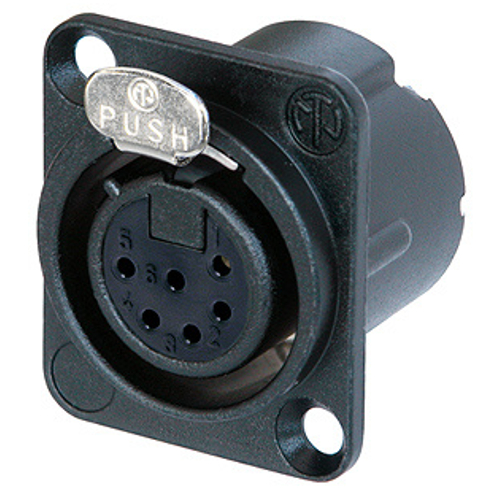

Neutrik NC6FD-LX-B
DLX Series 6-Pin Female XLR Panel Connector with Black Housing and Gold Contacts

OUR PART #:  NC6FD-LX-B

Neutrik's NC6FD-LX-B is a 6-pin female XLR receptacle with solder cups, black metal housing, and gold contacts.
Learn More
Our Price: $13.70
List Price: $15.37
You save 11%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC6FD-LX-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Neutrik's NC6FD-LX-B is a 6-pin female XLR receptacle with solder cups, black metal housing, and gold contacts.

The Neutrik DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

Neutrik NC6FD-LX-B Features:

  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Duplex ground contact for excellent contact integrity between chassis and cable connector
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Larger solder contacts for easier termination
  • Optional connection to easily join pin1 to chassis ground
  • D-style housing provides installation compatibility with industry standard D mounting dimensions

Neutrik NC6FD-LX-B Specifications:

  • Electrical Specifications:
    • Capacitance between contacts: = 7 pF
    • Contact resistance: = 5 mOhms
    • Dielectric strength: 1.5 kVdc
    • Insulation resistance: > 10 GOhms (initial)
    • Rated current per contact: 7.5 A
    • Rated voltage: < 50 V
  • Mechanical Specifications:
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 1.0 mm²
    • Wiresize: max. 18 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
    • Chassis shape: D
  • Material Specifications:
    • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA 6.6 30% GR)
    • Locking element: Steel Ck67
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black chromium
  • Environmental Specifications:
    • Flammability: UL 94 HB
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30°C to +80°C
