Juice Goose LA-060
Surge Protector for Two Low Impedance (8 Ohm to 16 Ohm) Speakers

OUR PART #:  LA-060

The LA-060 from Juice Goose is a surge protector designed to protect two pairs of leads (four wires) for 8-16 Ohm low impedance speakers.
Learn More
Our Price: $92.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Juice Goose LA-060
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The LA-060 from Juice Goose is a surge protector designed to protect two pairs of leads (four wires) for 8-16 Ohm low impedance speakers. The unit is rated for operating currents up to five amps (350 watts at 70 volts) for each of two wire pairs. For higher current requirements, terminals may be bridged to protect a single pair of speaker leads with maximum current up to ten amps.

The LA-060 is designed with three stage component protection - varistors (MOV), wire wound inductors, and silicone avalanche diodes (SAD) - to provide sub nanosecond response to surges up to 5,000 amps. This design is tuned to have ultra low impedance of only 0.02 Ohms per wire pair.

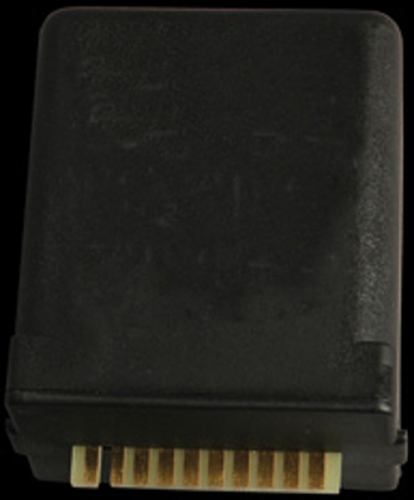

The LA-060 also features a gold plated circuit card designed to mount into the gold plated female connector on the PCB-1B base (sold separately). The base assembly can be mounted to any stable, flat surface. Whenver the protection module needs replacement, simply unplug the module from the base and replace it with a new one.

Juice Goose LA-060 Surge Protector Specifications:

  • Peak Surge Current (10 times) 8x20us: 5 kA
  • Life Expectancy 8x20us (2 kA): 50 occurrences
  • Response Time: < 1 ns
  • Resistance: 0.02 Ohms
  • Series Inductance: 136 uh per pair
  • Terminal Wire Size: 26 tp 10 AWG
