SPL Sound Performance Lab Phonitor e
Headphone Amplifier

OUR PART #:  PHONITOR-E

The SPL Phonitor e is the ultimate headphone amplifier. It offers connections for headphone operated both balanced and unbalanced.
Learn More
Selected Model Price: $1,499.00
List Price: $1,799.00
Save up to 17%!
Write the first review.

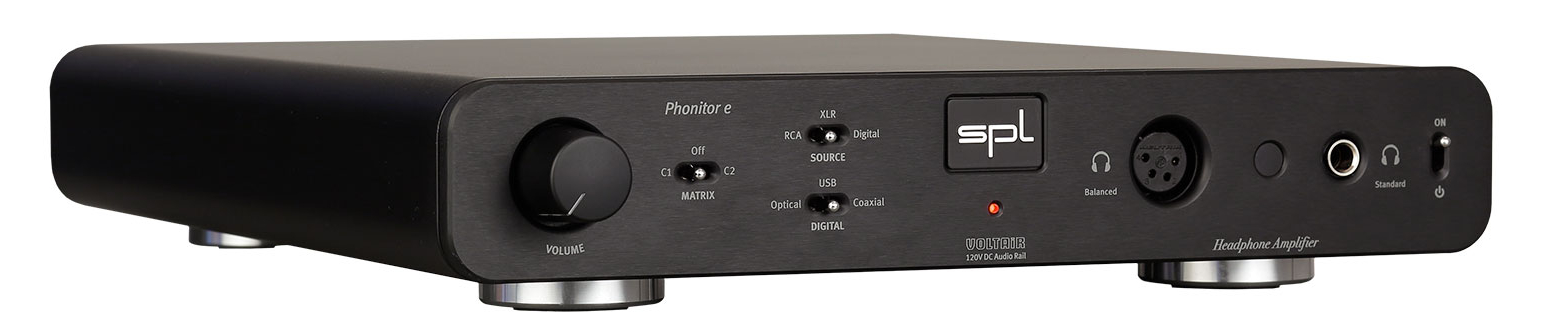

SPL Sound Performance Lab Phonitor e
Select a Model: (shipping times are approximate)

Related Products

The SPL Phonitor e is the ultimate headphone amplifier. It offers connections for headphone operated both balanced and unbalanced. With up to 3.7 W output power the Phonitor e delivers an impressive performance.

Up to five input sources can be connected to the Phonitor e. Two analog stereo inputs (XLR und RCA) and, if the optional DAC is installed, three more digital stereo inputs (USB, coaxial and optical).

SPL Phonitor e Features:

  • 120 V Rail headphone amplifier
  • Separate connections for headphones driven balanced and unbalanced
  • Suited for all headphones with impedances >10 ohms
  • Balanced and unbalanced analog inputs (XLR and RCA)
  • Phonitor Matrix with two presets for speaker-equivalent listening
  • Volume remotely adjustable (learns any IR remote control)
  • Maximum output power: 2 x 3.7 W (into 120 ohms)
  • Frequency response: 10 Hz - 300 kHz
  • THD+N: 0.00091 %
  • Dynamic range: 135.5 dB
  • Standby/power on switch
  • Linear power supply with toroidal transformer
  • Front and Lid made from aluminum, housing made from sheet metal
  • Made in Germany

SPL Phonitor e Specifications:

  • XLR Input
    • Neutrik XLR, balanced, Pin 2 = (+)
      • Impedance: ca. 20 kohms
    • CMR: -82 dBu (at 1 kHz)
    • Max. Input Level: +32.5 dBu
  • RCA Input
    • RCA,  unbalanced
    • Impedance: ca. 10 kohms
    • Max. Input Level: +32.5 dBu
  • Power Supply
    • Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz
    • Fuses: 230 V: T 500 mA; 115 V: T 1 A
    • Power consumption: max 30 VA
    • Stand-by power consumption: 0.7 W
  • Dimensions (incl. feet) (W x H x D): 10.95 x 2.24 x11.19" (278 x 57 x 335 mm)
  • Weight:
    • 3.3 kg; 7.3 lbs (unit only)
    • 4.4 kg; 9.7 lbs (shipping)
