SPL Sound Performance Lab Phonitor x
Headphone Amplifier and Preamplifier

OUR PART #:  PHONITOR-X

The SPL Phonitor x is the ultimate headphone amplifier. It offers connections for headphones operated both balanced and unbalanced.
Learn More
Selected Model Price: $2,499.00
List Price: $2,799.00
Save up to 11%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

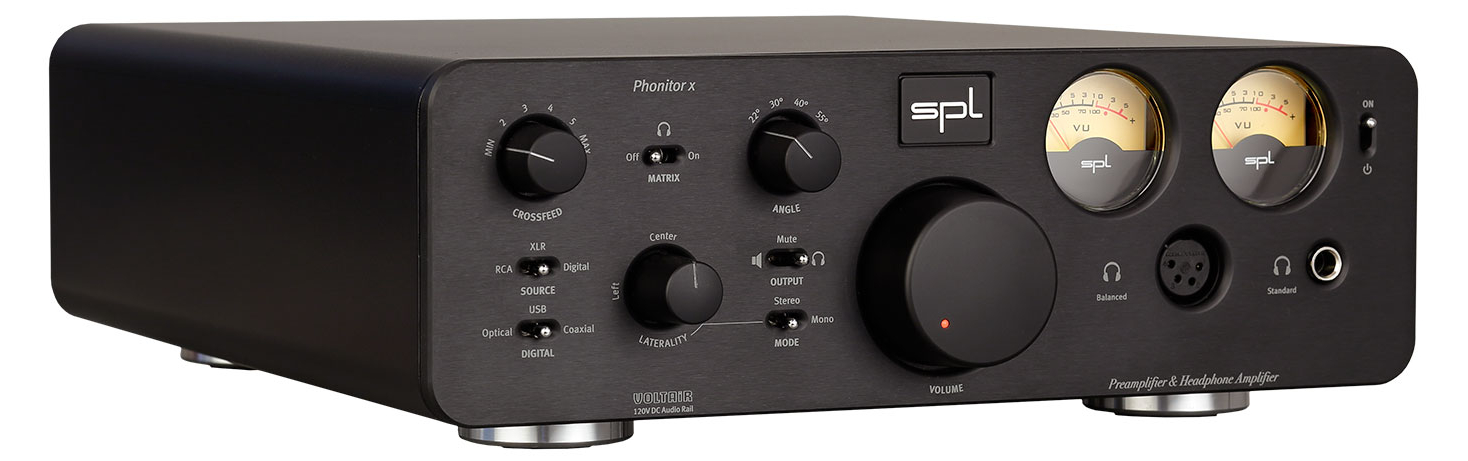

SPL Sound Performance Lab Phonitor x
Select model: (shipping times are approximate)
Qty:

Similar Products

The SPL Phonitor x is the ultimate headphone amplifier. It offers connections for headphones operated both balanced and unbalanced. With up to 3.7 W output power the Phonitor x delivers an impressive performance. The revolutionary Phonitor Matrix delivers the most realistic playback on headphones. As almost all music was mixed for speaker playback the Phonitor Matrix lets you experience music on headphones as being played back through speakers. The Phonitor x is not just a headphone amplifier, but also an excellent preamplifier that can also drive power amplifiers or active monitors. Up to five input sources can be connected to the Phonitor x. Two analog stereo inputs (XLR und RCA) and, if the optional DAC is installed, three more digital stereo inputs (USB, coaxial and optical).

SPL Phonitor x Features:

  • 120V rail headphone amplifier and preamplifier
  • Separate connections and power amplifiers for headphone driven balanced and unbalanced
  • Suited for all headphones with impedances >10 ohms
  • Balanced and unbalanced analog inputs (XLR and RCA)
  • Balanced and unbalanced analog outputs (XLR and RCA)
  • Innovative Phonitor Matrix: speaker-equivalent listening on headphones
  • Laterality control: super-fine balance control
  • Mono switch function
  • Volume remotely adjustable (learns any IR remote control)
  • Maximum output power: 2 x 3.7 W (into 120 ohms)
  • Frequency response: 10 Hz - 300 kHz (-3 dB)
  • THD+N: 0.00091 % (HP), 0.00085 % (Line)
  • Dynamic range: 135.5 dB (HP), 136.3 dB (Line)
  • AMP CTR connection with Performer power amplifier for coupled On/Off switching
  • Standby/power on switch
  • Linear power supply with toroidal transformer
  • Front and Lid made from aluminum, housing made from sheet metal
  • Made in Germany

SPL Phonitor x Specifications:

  • XLR Input
    • Neutrik XLR, balanced, Pin 2 = (+)
    • Impedance: ca. 20 kohms
    • CMR: -82 dBu (at 1 kHz)
    • Max. Input Level: +32.5 dBu
  • RCA Input
    • RCA, unbalanced (single-ended)
    • Impedance: ca. 10 kohms
    • Max. Input Level: +32.5 dBu
  • Speaker/Line Outputs
    • Neutrik XLR, balanced, Pin 2 = (+)
    • RCA, unbalanced (single-ended)
    • Frequency Range: 4 Hz to 300 kHz (-3 dB)
    • Crosstalk at 1 kHz: -106 dB
    • THD & N: 0.00085 % (at 0 dBu, 1 kHz, 100 kohms load)
    • Noise (A-weighted): -103.8 dB
    • Dynamic Range: 136.3 dB
  • Power Supply
    • Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz
    • Fuses: 230 V: T 500 mA; 115 V: T 1 A
    • Power consumption: max 40 VA
    • Stand-by power consumption: 0.7 W
  • Dimensions (incl. feet) (W x H x D): 10.95 x 3.94 x11.19" (278 x 100 x 335 mm)
  • Weight
    • 4.3 kg; 9.5 lbs (unit only)
    • 5.4 kg; 11.9 lbs (shipping)
