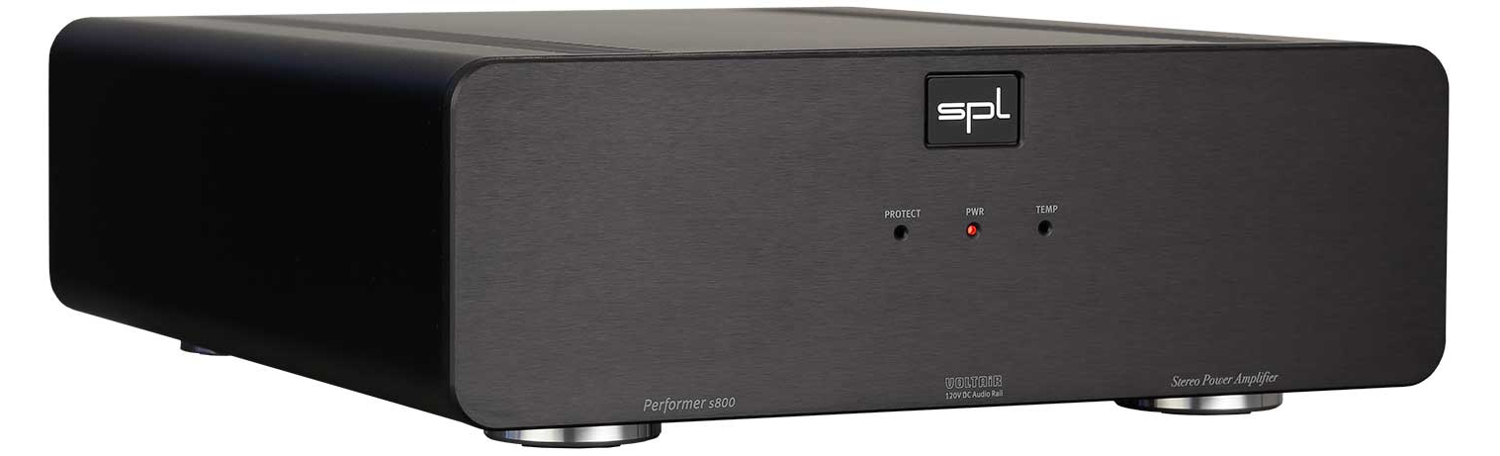

SPL Performer s800 Stereo Power Amplifier

The SPL Performer s800 is a stereo power amplifier that delivers 2 x 285 W to 4 ohms loudspeakers. In bridge mode it delivers 450 W into 4 or 8 ohms.

SPL Performer s800 Features:

• Bi polar transistor power amplifier with VOLTAiR 120V technology
• 2 x 285 W into 4 ohms; 2 x 185 W into 8 ohms (stereo operation)
• 450 W into 8 ohms (mono operation – Bridge Mode)
• Toroidal transformer with 855 VA
• 40800 µF capacitance for faithful reproduction of impulse peaks
• Gold-plated loudspeaker binding posts with protection covers
• Neutrik XLR connectors for balanced in- and outputs
• Direct secondary through of the input (e.g. for bi-wiring)
• Input trim switch for attenuation up to -5.5 dB in 0.5 dB steps
• AMP CTL connector for remote power on/off switching (e.g. with Director or Phonitor x)
• Overheat protection with Temp LED
• DC (direct current) voltage protection with Protect LED
• Front and Lid made from aluminum, housing made from sheet metal
• Made in Germany

SPL Performer s800 Specifications:

• Line Inputs and Line Outputs:
  • Neutrik XLR, balanced, Pin 2 = (+)
  • Input impedance: 10 kohms
  • Input trimming: 0 dB to -5.5 dB in 0.5 dB steps
  • Input sensitivity: +6 dBu
  • Output impedance: defined by connected device
  • Crosstalk: -110 dB (@ 1 kHz)
• Loudspeaker Outputs: 2 pairs binding posts with 4mmcable hole (screwable) and banana plug; fully encapsulated
• Total harmonic distortion
  • < 0.03 % at 1 kHz, at 185 W, 8 ohms
  • < 0.19 % at 20 kHz, at 185 W, 8 ohms
  • < 0.011 % at 1 kHz, at 450 W, 8 ohms
  • < 0.12 % at 20 kHz at 450 W, 8 ohms
• Power Supply
  • Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz
  • Fuses: 230 V: T 4 A; 115 V: T 8 A
  • Power consumption: max 900 VA
  • Idle power consumption: 40 W
• Dimensions (W x H x D): 10.95 x 3.94 x 14.57" (278 x100 x 370 mm)
• Weight:
  • 12.8 kg; 28.2 lbs (unit only)
  • 14.0 kg; 30.9 lbs (shipping)
