SPL Sound Performance Lab Director
DA Converter and Preamplifier

OUR PART #:  DIRECTOR-SPL

Selected Model Price: $3,499.00
List Price: $3,999.00
Save up to 13%!
Write the first review.

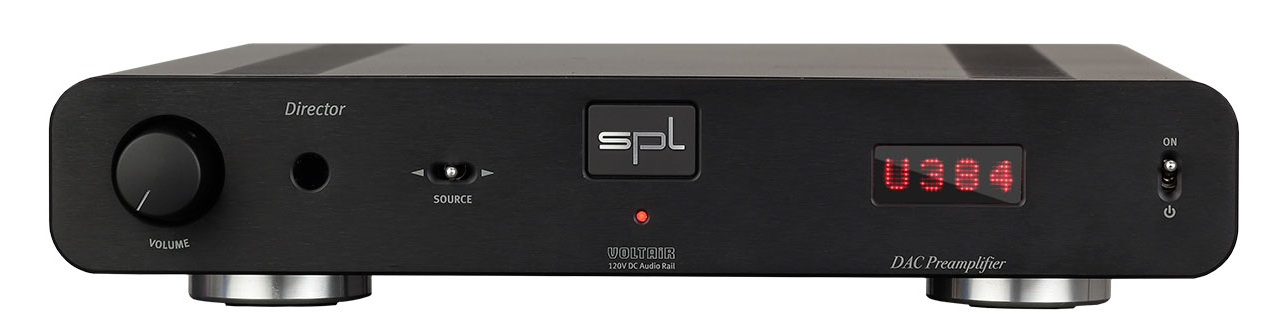

SPL Sound Performance Lab Director
Select a Model: (shipping times are approximate)

Related Products

The SPL Director combines two units in one: a reference-class preamplifier with six inputs (2x analog and 4x digital) and both balanced and unbalanced outputs as well as a reference-class DA converter for PCM up to 384 kHz and up to Double Rate DSD (DSD128).

SPL Director Features:

  • 120V rail preamplifier with integrated DA converter
  • Four digital inputs: USB, AES/EBU, coaxial, optical
  • DAC: up to 384 kHz (PCM) and DSD 2 (Double Rate DSD,DSD128)
  • Win driver; Apple class compliant
  • Two analog inputs (2x RCA)
  • Balanced and unbalanced outputs (XLR, RCA)
  • Analog volume control with motorized ALPS R K27 "BigBlue" potentiometer; remote controllable (learns any IR remote control)
  • Remote controllable source selection (learns any IR remote control)
  • Avago dot matrix display shows selected input and sample rate frequency for digital inputs
  • Frequency range (analog): 4 Hz to 300 kHz (-3 dB)
  • THD: 0,0008 % (analog),  0,0004 % (digital)
  • Dynamic range: 137,6 dB (analog), 120,8 dB (digital)
  • AMP CTR connection to Performer power amplifier for coupled on/off switching
  • Windows® driver, Apple class compliant
  • Standby/power on switch
  • Linear power supply with toroidal transformer
  • Front and Lid made from aluminum, housing made from sheet metal
  • Made in Germany
