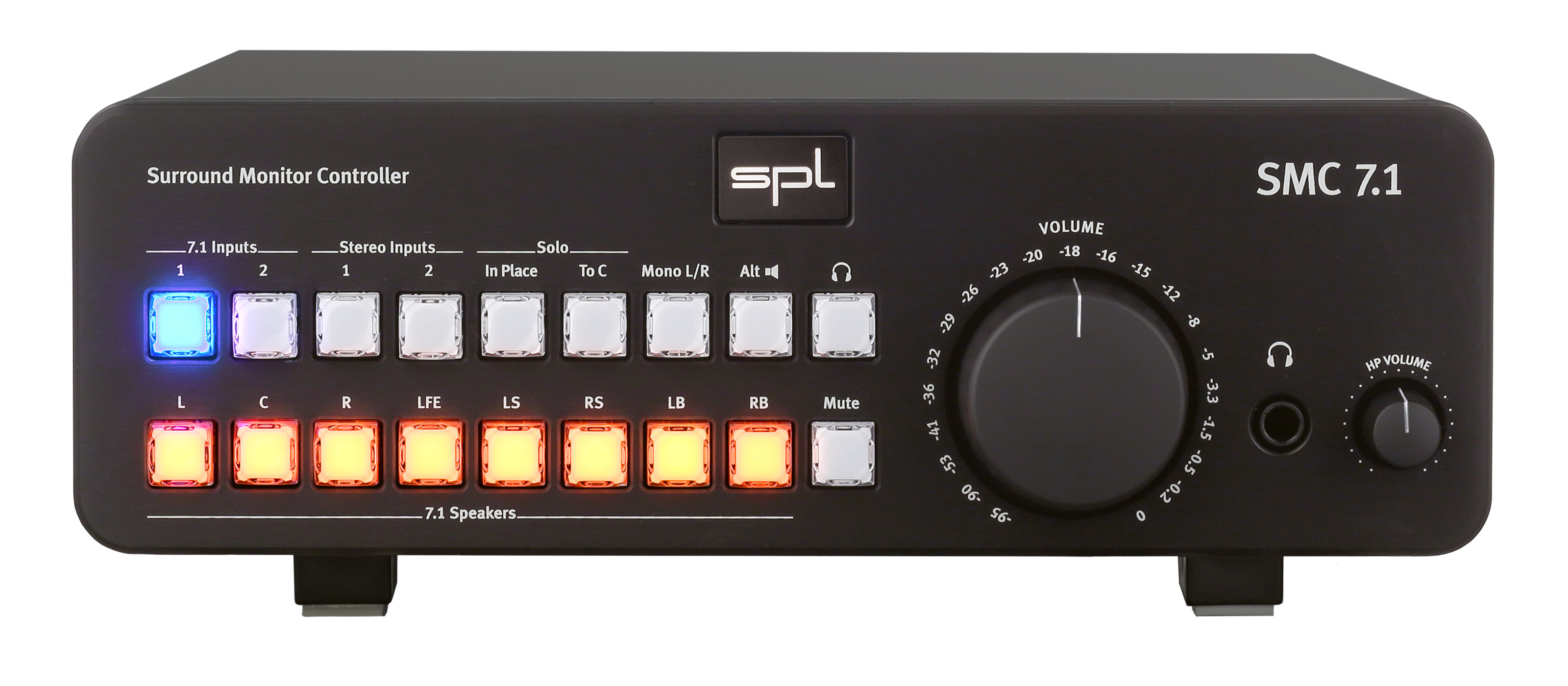

SPL Sound Performance Lab SMC-7.1
7.1 Surround Monitor Controller

OUR PART #:  SMC-7.1

The SPL Surround Monitor Controller SMC 7.1 is an analog studio monitor controller for 7.1 and stereo sources.
Learn More
Selected Model Price: $1,899.00
List Price: $1,999.00
Save up to 5%!
Write the first review.
SPL Sound Performance Lab SMC-7.1
Select a Model: (shipping times are approximate)

Related Products

The SPL Surround Monitor Controller SMC 7.1 is an analog studio monitor controller for 7.1 and stereo sources.

Each of the two balanced 7.1 inputs and the two balanced stereo inputs can be routed to the balanced 7.1 output. The L/R signals of the active input can optionally be routed to the alternative stereo output. With the high-quality headphone amplifier, you can listen to the L/R signal of the active input as well as to single channels of the 7.1 inputs.

The eight-ganged potentiometer controls the volume of all channels directly – no control circuits like VCAs are used.

The SMC 7.1 is built up in high-quality analog technique, which ensures a linear frequency response up to 100 kHz as well as an outstanding dynamic range.

SPL SMC-7.1 Features:

  • Two Balanced 7.1 Inputs
  • Two Balanced Stereo Inputs
  • Balanced 7.1 Output
  • Balanced Stereo Output with Sub Out
  • Extensive Routing Options
  • Solo in Place / Solo to Center
  • High-Quality Headphone Amplifier
  • Dedicated Analog Meter Output
  • Internal Power Supply
  • Made in Germany

SPL SMC-7.1 Specifications:

  • Inputs:
    • Sub-D-25-Input:
      • Sub-D-25 (TASCAM-Standard)
      • Impedance: 20 kOhms
      • CMR: -82 dB
      • Max. Input level: +22 dB
    • XLR-Input:
      • Neutrik XLR, symmetrisch, Pin 2 = (+)
      • Impedance: 20 kOhms
      • CMR: -82 dB
      • Max. Input level: +22 dB
  • Output:
    • Sub-D-25-Output:
      • Sub-D-25 (TASCAM-Standard)
      • Frequency range: 10 Hz to 150 kHz ( -3 dB)
      • Crosstalk at 1 kHz: -92 dB
      • THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)
      • Noise (A-weighted): -93 dB
      • Dynamic range: 115 dB
    • XLR-Output:
      • Neutrik XLR, balanced, Pin 2 = (+)
      • Frequency range: 10 Hz to 150 kHz ( -3 dB)
      • Crosstalk at 1 kHz: -92 dB
      • THD & N: 0,001% (0 dBu, 1 kHz, 100 kOhms load)
      • Noise (A-weighted): -93 dB
      • Dynamic range: 115 dB
    • Headphone Output:
      • 6.35 mm TRS connector
      • Pin wiring: Tip = Left, ring = right, sleeve = GND
      • Impedance: 22 kOhms
      • Frequency range: 10 Hz to 80 kHz ( -3 dB)
      • Crosstalk at 1 kHz: -70 dB
      • THD & N: 0,001% (0 dBu, 1 kHz, 40 kOhms load)
      • Noise (A-weighted): -93 dB
      • Dynamic range: 113 dB
  • Internal operating voltages:
    • Analog: +/- 18 V Power supply
    • Mains voltage (switchable): 230 V AC / 50Hz or 115 V AC / 60Hz
    • Fuses: 230 V = T 500 mA; 115 V = T 1 A
    • Power consumption: max 25 VA
  • Dimensions (WxHxD): 10.95" x 4.6" x 13.1" (278 x 103 x 333 mm)
  • Weight:
    • Unit only: 9.04 lbs (4.1 kg)
    • Shipping: 11.02 lbs (5.0 kg)
