SPL Sound Performance Lab Track One AD
Recording Channel with Digital Output

OUR PART #:  TRACK-ONE-AD

The Track One is a complete mono channel strip for the high-quality recording and processing of vocals and instruments and in spite of its high level of performance...
Learn More
Our Price: $1,199.00
List Price: $1,399.00
You save 14%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

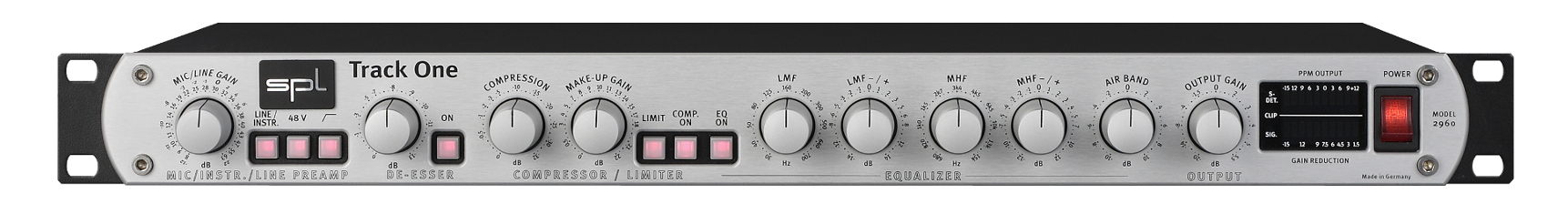

SPL Sound Performance Lab Track One AD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Track One is a complete mono channel strip for the high-quality recording and processing of vocals and instruments and in spite of its high level of performance, it is very competitively priced. It is ideal for the fast and reliable recording of vocals or acoustic instruments but also suitable for live performance and AV post-editing.

SPL Track One AD Features:

  • Preamp stages optimized for all microphone types and instruments
  • SPL’s De-Esser
  • Compressor/limiter stage
  • 3-band EQ stage
  • Output stage with metering
  • Balanced XLR and Jack connectors (parallel use possible)
  • Options: A/D converter and Lundahl input transformer

SPL Track One AD Specifications:

  • Microphone Input
    • Frequency Response: 10 Hz-200 kHz (200 kHz = -3 dB)
    • Common Mode Rejection: 1 kHz: -80 dB / 10 kHz: -68 dB (at -20dBu)
    • THD & N amplification A-weighted: 20dB = 97.5 dBu; 40 dB= -91.0 dBu; 65 dB = -69.6 dBu
    • Dynamic Response: 115 d
  • Instrument Input:
    • Frequency Response: 10Hz - 180 kHz (180 kHz = -3 dB)
    • THD & N amplification A-weighted: 7dB = -98.4dBu; 20 dB = -95.8 dBu; 42 dB = -77.2 dB
    • Input Impedance Line: 12 kOhm / Instr.: 1 MOhm
    • Max. Input Level Line: +25 dBu / Instr.:  =13 dBu
    • Dynamic Response: 115 dBu
    • Outputs: Max output level XLR/jack = +20dBu; Output impedance=50 Ohm
  • Power Supply
    • Toroidal transformer: 15 VA
    • Fuses: 315 mA (230 V / 50 Hz); 630 mA ( 115 V / 60Hz)
  • Dimensions: Stand.-EIA-19 inch/1U housing: 482 x 44 x 210 mm
  • Weight: 3.1 kg
