SPL GAIN-STATION-1-AD Gain Station 1 AD with Digital Output

OUR PART #: GAIN-STATION-1-AD MFR #: 2272-2

Copied to clipboard

The SPL GainStation 1 microphone and instrument preamplifier has the goal of noticeably improving a signal and sending it along its path with a healthy foundation... ...Read more

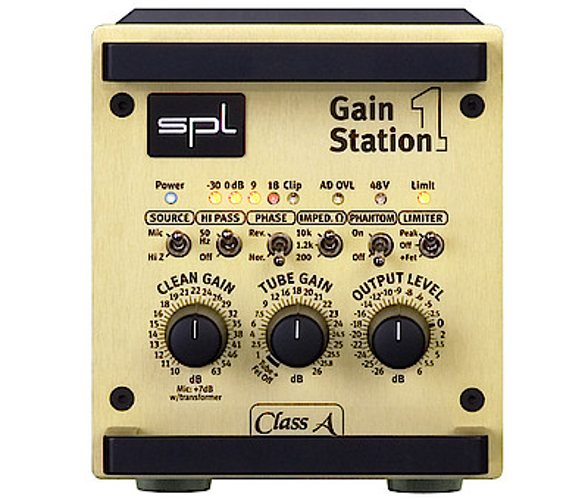

SPL GAIN-STATION-1-AD Gain Station 1 AD With Digital Output Image 1
SPL GAIN-STATION-1-AD Gain Station 1 AD With Digital Output Image 2
SPL GAIN-STATION-1-AD Gain Station 1 AD With Digital Output
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The SPL GainStation 1 microphone and instrument preamplifier has the goal of noticeably improving a signal and sending it along its path with a healthy foundation, requires a great deal of thought and engineering effort.

The GainStation 1 has a very compact design allows for free placing also outside of a rack (e. g. close to the microphone). Musicians can place the GainStation 1 easily on a rack or amplifier.

The AD converter module 1090 offers an S/P-DIF output with both coaxial and optical connectors in parallel.

The heart of the module is a 24-bit converter with a variable sample rate of up to 192 kHz. Highly accurate quartz oscillators ensure a clean, low-jitter master clock.

The internal sample rate can be switched between 44.1, 48, 88.2 and 96 kHz. Other sample rates (32, 176,4 and 192 kHz are set by external syncronization.

The converter can be synced to other digital devices via a S/P-DIF input.

The internal oscillators are automatically disabled when an external clock signal is present to prevent interference.

SPL GainStation 1 AD Features:

  • Separated Solid state and tube preamps. The tube preamp can be added to the solid state stage to add varying amounts of tube saturation from subtle to brutal
  • Peak/FET Limiter
  • Switchable Mic Input Impedance (200 Ohms, 1,2 & 10 kOhms)
  • Custom-made, fully discrete, class A op-amps (no off-the-shelf stuff here). 60V Rail operating voltage—twice as high as most common op-amps—for an incredible dynamic range
  • All switch functions are handled by encapsulated relays with gold-plated contacts
  • An extremely high amplifier slew rate of < 40V/µs, ensuring clean transmission of high-frequency signal portions and rapid transients with virtually no clipping
  • An almost entirely DC-coupled signal path, making signal-degenerating condensers unnecessary.
  • An optimized layout guarantees the shortest possible signal paths, while generously proportioned grounding surfaces ensure low impedance and maximum shielding
  • All resistors are within 0.1% tolerance and were selected after extensive listening tests.
  • A no-compromise power supply with extensive additional shielding and seven separately wound and regulated voltages
  • A tube stage utilizing premium MKP foil condensers and a select 12 AX7 LPS tube for clear, dynamic audio
  • Optional 24/192 AD converter and Lundahl input transformer
  • Made in Germany

SPL GainStation 1 AD Specifications:

  • Frequency response:
    • ‹1Hz-125kHz (Clean Gain 30dB, Tube Gain off, output level 0dB, +/- 0.5dB)
    • ‹1Hz-310kHz (Clean Gain 30dB, Tube Gain off, output level 0dB, +/- 3dB)
    • ‹1Hz-125kHz (Clean Gain 30dB, Tube Gain 1dB, output level 0dB, +/- 0.5dB)
  • THD+N:
    • 0.0005% (Clean Gain 24dB, Tube Gain off, output level +6dB, 20-22kHz)
    • 0.032% (Clean Gain 23dB, Tube Gain 1dB, output level +6dB, 20-22kHz)
  • Noise:
    • -95.4dBu (Clean Gain 10dB, Tube Gain off, A-weighted)
    • -91.8dBu (Clean Gain 30dB, Tube Gain off, A-weighted)
    • -67.2dBu (Clean Gain 60dB, Tube Gain off, A-weighted)
    • -86.4dBu (Clean Gain 20dB, Tube Gain 10dB, A-weighted)
  • EIN: 127.2dB (Clean Gain 60dB, Tube Gain off, A-weighted, 40Ohm)
  • Dynamic response: ›130dB (20-22kHz, A-weighted)
  • Common Mode Rejection: ›80dB (Clean Gain 30dB, Tube Gain off, 1kHz, Input -30dBu)
  • Max. Input Level (Mic Input, Hi-Z Input): +17dBu
  • Maximum Output Level: +34dBu
  • Input Impedance (Instrument input): ›1MOhm
  • Output impedance: ›75Ohm
  • Slew Rate: ›40V/µs (Clean Gain 30dB, Tube Gain off, Output Level +6dB)
  • Phantom power: 48V +/-2V
  • Power consumption (w/o AD converter): 25W
  • Housing & Weight:
    • Dimensions (WxHxD): 4.17“ x 4.8“ x 10.67“ (106 x 122 x 271 mm)
    • Weight (without Lundahl transformer and AD converter): 5.84lbs (2.65 kg)
