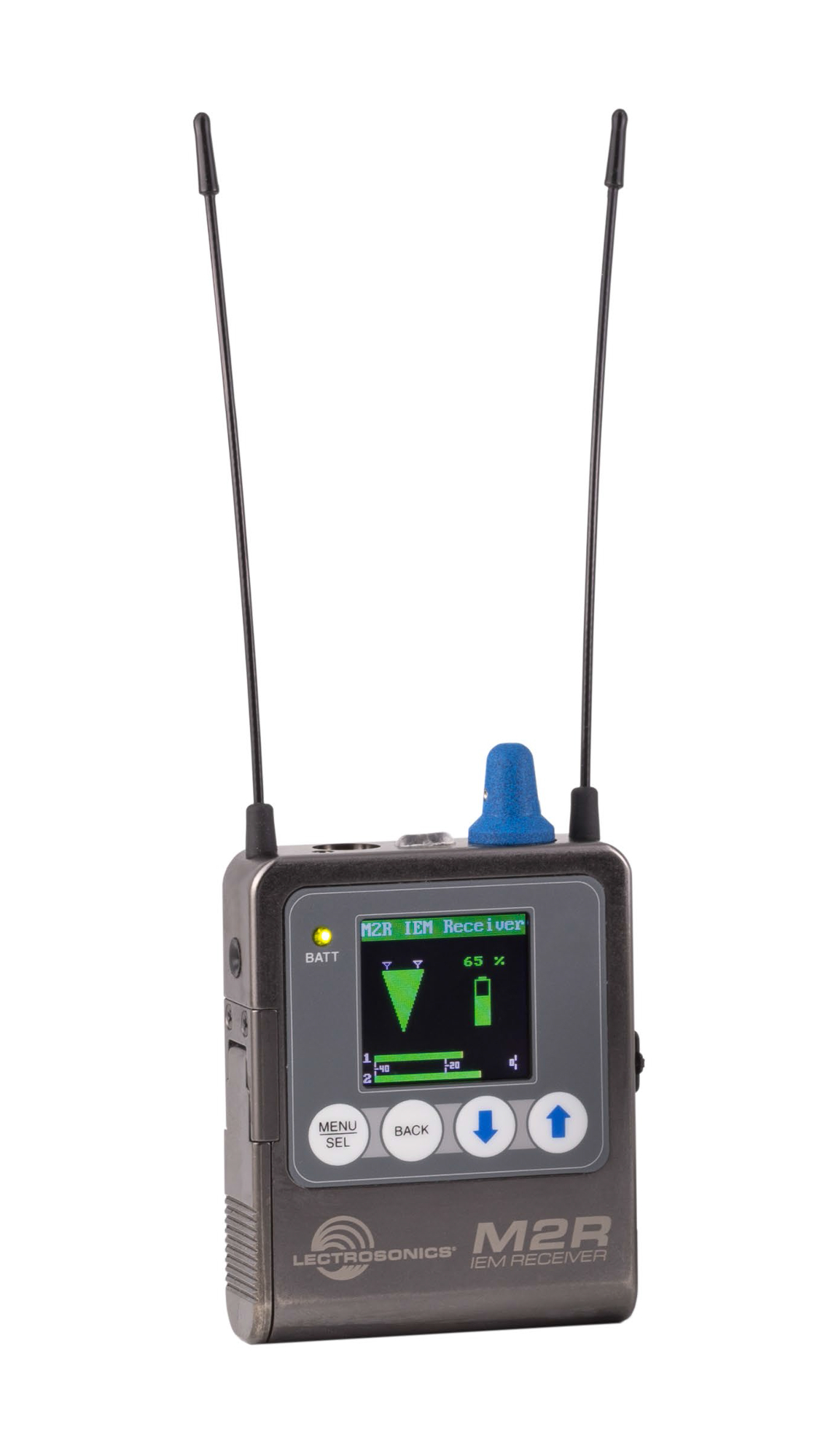

Lectrosonics M2R
Wireless IEM/IFB Receiver Beltpack

OUR PART #:  M2R-LECTROSONICS

The Lectrosonics M2R, part of their Duet digital in-ear monitor (IEM) wireless monitor and IFB system series...
Learn More
Our Price: $1,080.00
List Price: $1,480.00
You save 27%!
Write the first review.
Lectrosonics M2R
Qty:
Please call for availability.

Related Products

The Lectrosonics M2R, part of their Duet digital in-ear monitor (IEM) wireless monitor and IFB system series, is a digital IEM/IFB bodypack receiver that incorporates advanced antenna diversity switching during digital packet headers to offer seamless audio. It features a 24-bit digital audio stream that delivers high resolution sound quality with wide dynamic range, low noise floor, and rock-solid stereo image. With this receiver you can select from stereo, mono from left channel only, or mono from right channel only. This gives the unit alot of versatility in usage. Its headphone jack is fed from a high-quality stereo amplifier with 250 mW available for driving headphones or earphones to sufficient levels for stage performance or other situations with significant background noise. A high-resolution, color LCD provides for a wide range of menu options, such as precise limiter settings, using detailed graphics, and its membrane switches all add up to a user-friendly interface. The M2R runs on 2 AA batteries which allow an operating time of over 4 hours when using alkaline cells.

It employs 2-way IR sync, which means scan data from the receiver can be sent to a transmitter and in turn onto the Ethernet network where it can be used by Wireless Designer™ software for frequency planning and coordination purposes. In addition, the M2R includes a FlexList™ mode, where a number of names and associated frequencies can be stored. This is a feature that benefits monitor engineers by allowing quick locating and listening to any of the performers' on stage mixes.

The M2R works with the UHF frequencies of 470-608 MHz in a single range, using digital modulation for transmission. Its housings and panels are machined aluminum with Ebni finishes and laser-etched marking for durability, yet is lightweight and sleek in order to be comfortable on the user's body.

Lectrosonics M2R Features:

  • IEM (Wireless Monitor) receiver with digital RF
  • 24-bit digital audio
  • IR (infrared) port for fast setup
  • High resolution, color LCD
  • Stereo or mono operation
  • Low latency of 1.4 ms with analog inputs

Lectrosonics M2R Specifications:

  • Operating Spectrum: 470.1 - 607.975 MHz
  • Modulation Type: 8PSK with Forward Error Correction, spread spectrum
  • Occupied Bandwidth: 200 KHz
  • Latency:
    • Digital Source: 1.0ms
    • Analog Source: <1.4 ms
  • Selectable Audio Inputs: 4 analog audio ins or Dante
  • Audio Performance:
    • Frequency Response: 20Hz - 15 KHz, - 3dB
    • THD+N: 0.15% (1kHz @ -10 dBFS)
    • Dynamic Range: >95 dB weighted
    • Adjacent Channel Isolation >85dB
  • Diversity Type: Switched antenna
  • Audio Output: Earphone, 250 mW at 32 Ohms
  • Power requirements: 2 x AA batteries (3.0V)
  • Battery life: 7 hours; (2) Lithium AA
  • Power consumption: 1 W
  • Dimensions (H x W x D - with knob): 3.0" x 2.375" x 0.625" (120 x 60.325 x 15.875mm)
  • Weight: 9.14 oz (259 g) (with batteries)

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
