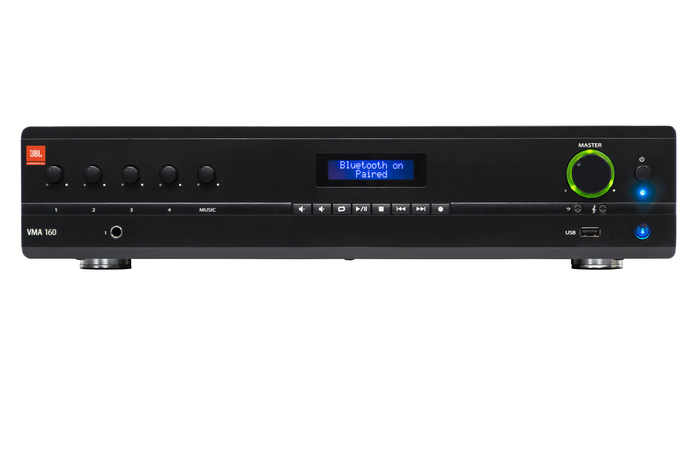

JBL VMA 160
Mixer/Amplifier with (5) Input and (1) Output of 60-Watts

OUR PART #:  VMA160

The JBL VMA 160 is a mixer amplifier with 5 inputs and 1 output of 60-Watts of power.
Learn More
Our Price: $262.49
List Price: $434.00
You save 40%!
Write the first review.
JBL VMA 160
Qty:
In Stock

Related Products

The JBL VMA 160 is a mixer amplifier with 5 inputs and 1 output of 60-Watts of power. The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4 Ohm, 8 Ohm) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.





JBL VMA 160 Features:

  • (5) inputs with (1) output of 60-watts of power
  • Independent bass and treble controls for each outputchannel
  • 100V and 70V output, or 4 Ohm/8 Ohm
  • Paging Chime, and Priority muting
  • Works with JBL CSR-V wall controllers
  • Balanced mic/line inputs; RCA (.775V) inputs
  • Rack mounting hardware included

JBL VMA 160 Specifications:

  • Max Output Power per Channel: into 4 Ohm or 8 Ohm;1kHz, = 0.5% THD - VMA160: 60W
  • Insertion Loss: (70V and 100V outputs) 1dB maximum
  • Number of Inputs: 5
  • Number of Outputs: 1
  • Tone Controls: (Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
  • Input Sensitivity: (to obtain full rated power into 8O load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in):130mVRMS
  • Frequency Response: (measured at 2.83VRMS into rated load impedance at any output) 4/8 O Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
  • Total Harmonic Distortion (THD): (measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz -20kHz
  • Signal to Noise Ratio: (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
  • Input Impedance: (nominal) Mic: 400 Ohm Line: 20 kOhm (balanced) RCA: 50 kOhm
  • Phantom Power: 27VDC
  • Crosstalk: (reference rated power, volume at mid position, 1kHz) -70 dB
  • Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
  • Minimum Load Impedance: (Low Impedance Output, 70V Output, 100V Output) 4 O, 80 O,160 O
  • Operating Temperature/Humidity: 0°C to 35°C @ 95% R.H.(non-condensing)
  • Storage Temperature: -20°C to 85°C
  • Net Weight: 19.4 lb (8.8 kg)
  • Dimensions (WxDxH): 17.0" x 16.3" x 3.5" (432 x 415 x 88 mm)
  • Shipping Weight: 24.6 lb (11.2 kg)
