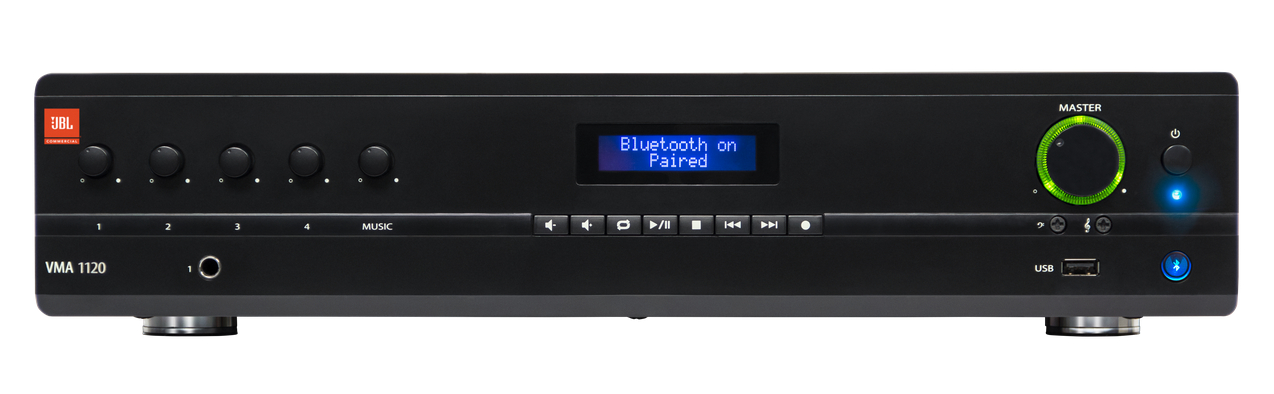

JBL VMA1120
Mixer/Amplifier with 5 Inputs and 1 Output of 120-Watts of Power

OUR PART #:  VMA1120

The JBL VMA1120 is a mixer amplifier with 5 inputs and 1 output of 120-Watts of power.
Learn More
Our Price: $335.07
List Price: $554.00
You save 40%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL VMA1120
Qty:
In Stock

Similar Products

The JBL VMA1120 is a mixer amplifier with 5 inputs and 1 output of 120-Watts of power. The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4 Ohm, 8 Ohm) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

JBL VMA1120 Features:

  • 5 inputs with 1 output of 60, 120, or 240-watts of power
  • Independent bass and treble controls for each output channel
  • 100V and 70V output, or 4 Ohm/8 Ohm
  • Paging Chime, and Priority muting
  • Works with JBL CSR-V wall controllers
  • Balanced mic/line inputs; RCA (.775V) inputs
  • Rack mounting hardware included

JBL VMA1120 Specifications:

  • Max Output Power per Channel: into 4 Ohm or 8 Ohm;1kHz, =0.5% THD - 120W
  • Insertion Loss: (70V and 100V outputs) 1dB maximum
  • Number of Inputs: 5
  • Number of Outputs: 1
  • Tone Controls: (Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
  • Input Sensitivity: (to obtain full rated power into 8O load) Mic Input: 5.5mm VRMS Line Input: 1.3VRMS RCA Input (stereo in):130mVRMS
  • Frequency Response: (measured at 2.83VRMS into rated load impedance at any output) 4/8 O Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
  • Total Harmonic Distortion (THD): (measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%,20Hz - 20kHz
  • Signal to Noise Ratio: (Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
  • Input Impedance: (nominal) Mic: 400 Ohm Line: 20 kOhm (balanced) RCA: 50 kOhm
  • Phantom Power: 27VDC
  • Crosstalk: (reference rated power, volume at mid position, 1kHz) -70 dB
  • Nominal AC Line Voltages: 100V, 120V, 220V, 220-240V, 50/60 Hz
  • Minimum Load Impedance: (Low Impedance Output, 70V Output, 100V Output) 4 O, 40 O, 80 O
  • Operating Temperature/Humidity: 0°C to 35°C @ 95%R.H. (non-condensing)
  • Storage Temperature: -20°C to 85°C
  • Net Weight: 20.2 lb(9.2 kg)
  • Dimensions (WxDxH): 17.0" x 16.3" x 3.5" (432 x 415 x 88 mm)
  • Shipping Weight: 25.5 lb (11.6 kg)
