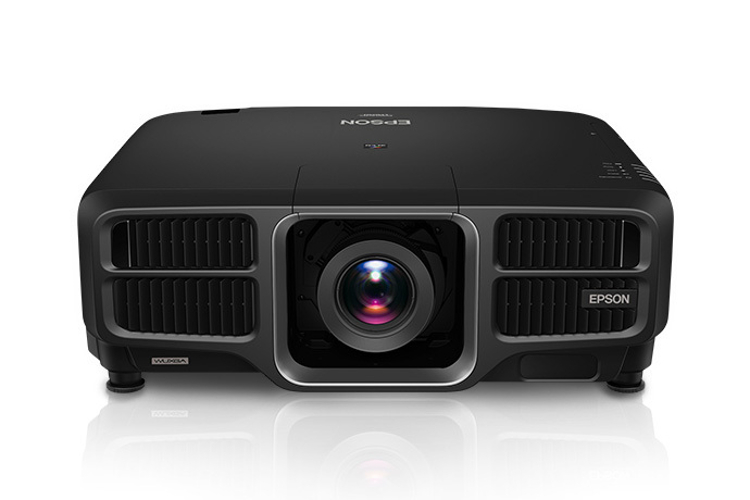

Epson PRO-1505UNL
12000lm WUXGA Laser Projector with No Lens

OUR PART #:  PRO-1505UNL

NOTE: Lens is NOT Included  The Epson Pro L1505UNL large-venue projector combines a laser light source and 3LCD technology for powerful, uncompromising images.
Learn More
Similar Products

NOTE: Lens is NOT Included

The Epson Pro L1505UNL large-venue projector combines a laser light source and 3LCD technology for powerful, uncompromising images. Ideal for events staging, auditoriums and sanctuaries, this sleek, black projector features native WUXGA performance with Epson® 4K Enhancement Technology. Offering extraordinary color brightness, Epson 3LCD projectors ensure brilliant images. Delivering 12,000 lumens of color brightness and 12,000 lumens of white brightness, the L1505U's laser light engine also provides virtually maintenance-free operation up to 30,000 hours. Plus, its exceptional integration capabilities include diverse connectivity such as HDBaseT™ and ten optional powered lenses (sold separately) with lens shift and lens memory.

Epson Pro L1505UNL Includes:

  • Pro L1505UNL projector
  • Power cable
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • EasyMP software CD
  • Quick Setup Sheet
  • Lens lock screw

Epson Pro L1505UNL Features:

  • Bright and colorful: Features 12,000 lumens of color brightness (color light output)1 and 12,000 lumens of white brightness (white light output)
  • Laser light source: Epson Projectors with Laser Light Source can operate for up to 20,000 hours virtually maintenance free
  • 4K enhancement technology: Epson's 4K Enhancement Technology delivers astonishing picture quality — every subtle intricacy is captured
  • SD-SDI: Extends the signal 300 feet and supports 1080p video frame rates
  • HDBaseT: Combines HDMI, ethernet and RS-232 into one cable
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness
  • The Pro L1505UNL has:
    • Color Brightness: 12,000 lumens
    • White Brightness: 12,000 lumens
  • Exceptional Full HD widescreen display — native WUXGA(1920 x 1200) with 4K Enhancement for presentations, videos, digital signage and more
  • Solid-state laser light source — provides virtually maintenance-free operation up to 30,000 hours
  • Innovative 4K Enhancement Technology — doubles the number of pixels from 2.3 million (WUXGA) to 4.6 million for extraordinary image and video quality
  • Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, SDI, VGA and 5-BNC, for easy integration with any system
  • Ten optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (sold separately)
  • Web-based remote management — control and monitor projector status via a Web browser
  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for avariety of applications
  • Professional installation features — full 360° installation flexibility, including Portrait Mode
  • Industry-leading service and support — get peace-of-mind ownership with free next-business-day replacement, plus postage-paid returns
  • RoHS compliant
  • Recyclable product
  • Epson America, Inc. is a SmartWay™ Transport Partner

Epson Pro L1505UNL Specifications:

  • Projection System: High-aperture Epson 3-chip, 3LCD technology
  • Projection Method: Front / rear / ceiling mount
  • Driving Method: Epson Poly-silicon TFT Active Matrix
  • Pixel Number: 2,304,000 dots (1920 x 1200) x 3
  • Color Brightness - Color Light Output: 12000 lumens
  • White Brightness - White Light Output: 12000 lumens
  • Aspect Ratio: Supports 4:3, 16:9, 16:10
  • Native Resolution: 1920 x 1200 (WUXGA)
  • Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x1050
  • Brightness Uniformity: (typical) 90%
  • Pixel Arrangement: Cross stripe
  • Throw Ratio Range: (For Standard Lens Only) 1.57 —2.56
  • Size - projected distance: 50" – 300"
  • Keystone Correction (For Standard Lens):
    • Horizontal: ±30°
    • Vertical: ±45°
  • Contrast Ratio: Normal, Dynamic Mode: Up to 15,000:1
  • Color Processing: 10 bit
  • Color Reproduction: Up to 1 billion colors
  • Effective Scanning Frequency Range:
    • Pixel Clock, Horizontal,Vertical:
      • Pixel Clock: 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
      • Horizontal: 15 KHz – 92 KHz
      • Vertical: 50 Hz – 85 Hz
  • Projection Lens:
    • Type: (For Standard Lens) Powered shift/focus / zoom
    • F-number: (For Standard Lens Only) 1.7 — 2.3
    • Focal Length: (For Standard Lens Only) 24.0 mm — 38.2 mm
    • Zoom Ratio: (For Standard Lens Only) Optical zoom 1 — 1.6x
    • Lens Shift: (For Standard Lens)
      • Vertical: ±67°
      • Horizontal: ±30°
