SPL Madison 16+16 Channel MADI Interface

OUR PART #: MADISON MFR #: 1260

Copied to clipboard

The SPL Madison offers the pure SPL analog sound for every MADI equipped digital console, audio router and PC MADI card. ...Read more

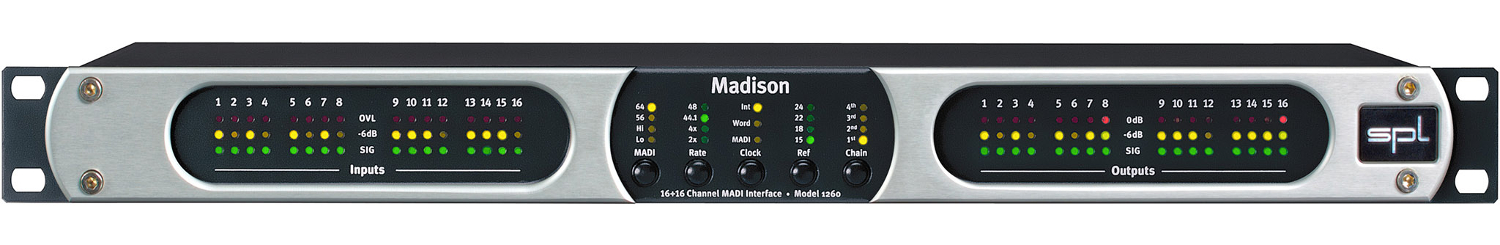

SPL Madison 16+16 Channel MADI Interface Image 1
SPL Madison 16+16 Channel MADI Interface Image 2
SPL Madison 16+16 Channel MADI Interface
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The SPL Madison offers the pure SPL analog sound for every MADI equipped digital console, audio router and PC MADI card.

With 16 input and 16 output channels in a single rack space, the Madison combines state of the art signal conversion with highly reliable clock and MADI processing. And as a true SPL unit it is simple to operate, easy to expand and, of course, an awesome sounding conversion system.

SPL Madison Features:

  • 16 AD and 16 DA converters in 1U
  • Superb sounding converters with a sophisticated analog section on 36V audio rails
  • +24dBu professional output level
  • Best price/performance value
  • Up to 64 I/Os on 1 MADI port (4 units)
  • Latency-neutral MADI chaining
  • 44.1 to 192kHz, ±10% vari-speed
  • SPL clock-shop for jitter-free operation
  • Ultra-compatible, always operational MADI IO with ultra low conversion latencies
  • Four directly selectable reference levels: 15/18/22/24
  • Simple operation and setup right from the front panel controls
  • Ergonomic, distance-readable meters for clear level status indication of any I/O channel
  • Fanless, absolutely silent low-power design (max. 30W)
  • Redundant power supply optionally
  • Four analog, 8-channel multicore DB25 sockets (TASCAM industry standard)
  • Made in Germany

SPL Madison Specifications:

  • Converter and Connections
    • Resolution: 24 Bit
    • Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
    • Clock: Internal clock circuitry from SPL, Wordclock or MADI'
    • Expandability: 4 units via MADI chain for 64 channels
    • 16 analog, balanced inputs, DB25/Tascam
    • MADI optical digital input (up to 64 channels)
  • Audio Outputs
    • 16 analog, balanced outputs, DB25/Tascam
    • MADI optical digital output (up to 64 channels)
    • Analog Inputs/Measurements
    • S/N: 115dB (A-weighted, 48kHz)
    • Dynamic Range: 115dB (-60dBfs, A-weighted, 48kHz)
    • S/(N+D): 102dB ( -1dBfs, 48kHz)
  • Analog Outputs/Measurements
    • S/N: 115dB (A-weighted, 48kHz)
    • Dynamic Range: 115dB (-60dBfs, A-weighted, 48kHz)
    • S/(N+D): 100dB (-1dBfs, 48kHz)
  • Rear Connections
    • 1 IEC power connector
    • USB Type A socket (no audio, firmware updates only)
    • MADI optical input, Type SC
    • MADI optical output, Type SC
    • Power Supply, BTU, Dimensions and Weight
    • Power Supply: Switchmode, 90-264 V AC, 50/60 Hz, 35W max.
    • Thermal Units: 65 BTU/h typ., 110 BTU/h max.
    • Dimensions (HxWxD, mm): 44 x 482 x 260 (without sockets D=240)
    • Dimensions (HxWxD, inch): 1,7 x 19 x 10,2 (without sockets D=9,4)
    • Weight kg: 3,05 (3,17 with 2nd Power Supply)
    • Weight lbs: 6,72 (6,99 with 2nd Power Supply)
