Blackmagic Design Intensity Shuttle for Thunderbolt [RESTOCK ITEM]
HDMI and Analog Capture and Playback Device

OUR PART #:  INTENSITY-SHTL-RST-5

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $201.38
List Price: $239.00
You save 16%!
Be the first to review.
Blackmagic Design Intensity Shuttle for Thunderbolt [RESTOCK ITEM]
Qty:
In Stock
Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Blackmagic Design's Intensity Shuttle for Thunderbolt™ features incredibly fast Thunderbolt™ technology, with capture and playback of the highest quality SD and HD video in full 10-bit quality, as well as HDMI, analog component, composite, and S-Video connections.  Intensity Shuttle's innovative design is compact and portable, plus you can plug inline with your cables because input connections are on one side, and output connections on the other.  Intensity Shuttle is powered over the Thunderbolt™ cable so you don’t need cumbersome power supplies.  Intensity Shuttle uses the same high quality electronics as Blackmagic Design's high end capture and playback solutions.

Highest Quality Analog Connections

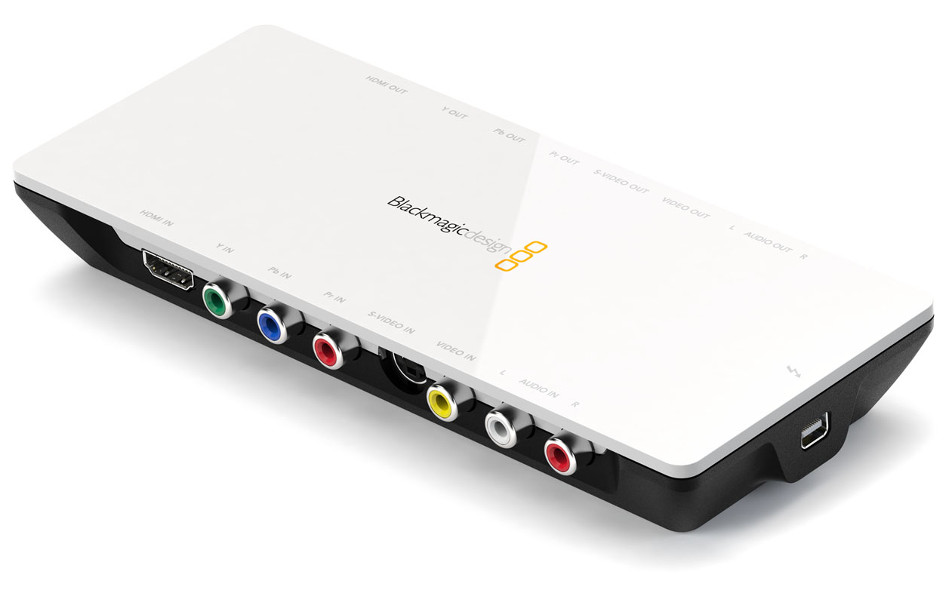

Intensity Shuttle has built-in HDMI and analog video and audio connections, with all inputs on one side and all outputs on the other.

Blackmagic Design Intensity Shuttle Specifications:

Connections:

  • Analog Video Input: Independent connections for component, composite, and S-Video
  • Analog Video Output: Independent connections for component, composite, and S-Video
  • Digital Video Input: 1x HDMI input
  • Digital Video Output: 1x HDMI output
  • Analog Audio Input: 2-channel RCA HiFi audio in 24-bit
  • Analog Audio Output: 2-channel RCA HiFi audio in 24-bit
  • HDMI Audio Input: 8 channels
  • HDMI Audio Output: 8 channels
  • S/PDIF Audio Output: None
  • Dual Rate Support: HDMI and Analog Component switches between high-definition and standard definition
  • Sync Input: None
  • Device Control: None. (FireWire may be used for controlling some cameras)
  • Supported HDMI formats: 525 NTSC, 625 PAL, 720HD, and 1080HD switchable
  • Computer Interface: Thunderbolt™

Intensity Shuttle for Thunderbolt™

Standards

  • SD Format Support:
    • 625i/50
    • 625p PAL and 525i/59.94
    • 525p NTSC, 480p
  • HD Format Support:
    • 1080i50
    • 1080i59.94
    • 1080i60
    • 1080p23.98
    • 1080p24
    • 1080p25
    • 1080p29.97
    • 1080p30
    • 1080p50
    • 1080p59.94
    • 1080p60
    • 720p50
    • 720p59.94
    • 720p60
  • HDMI Video Sampling: 4:2:2
  • HDMI Audio Sampling: Television standard sample rate of 24-bit/48kHz
  • HDMI Color Precision: 4:2:2
  • HDMI Color Space: YUV 4:2:2
  • Copy Protection: For legal reasons HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

  • Colorspace Conversion: Hardware-based, real-time
  • HD Down-Conversion: Software-based down-conversion during video playback
  • HD Up-Conversion: Real-time standard definition to 1080HD and 720HD during video capture
  • Real-Time Effects:
    • Avid Media Composer 6™ internal effects in DNxHD, XDCAM, and uncompressed
    • Apple Final Cut Pro™ internal effects in DV, DVCPRO HD, ProRes, and uncompressed on Intel MacOS X™
    • Adobe® Premiere Pro® Mercury Playback Engine effects in DV, MJPEG, DVCPRO HD, DSLR, AVCHD, XDCAM, XDCAMHD and uncompressed

Extras

  • Software Included:
    • Media Express
    • Disk Speed Test
    • Blackmagic System Preferences
    • Blackmagic driver
  • Firmware Upgrade: Firmware built into software driver. Loaded at system start, or via updater software
  • Installation: Requires Macintosh computer with Thunderbolt™ running Mac OS X 10.6.8 Snow Leopard or later, and Mac OS X 10.7 Lion or later.
  • Operating System Compatibility: Mac OS X 10.6.8 Snow Leopard or later, and Mac OS X 10.7 Lion or later
  • Product Warranty: 12 Months limited warranty
