Lex Products Corp TS600F-10-RGN
10 ft 400 Amp Cam-Type Tie-In Set with Reverse Ground and Neutral (Green/White)

OUR PART #:  TS600F-10-RGN

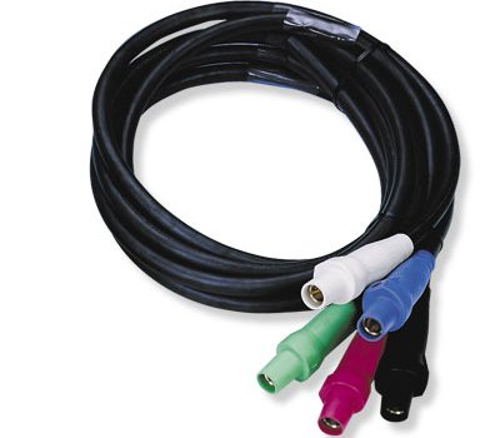

The Lex Products TS600F-10-RGN cam tail set is a 4/0 AWG Type SC cable with reverse ground and neutral (green/white).
Learn More
Our Price: $333.46
List Price: $438.50
You save 24%!
Write the first review.
Lex Products Corp TS600F-10-RGN
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Lex Products TS600F-10-RGN cam tail set is a 4/0 AWG Type SC cable with reverse ground and neutral (green/white). Featuring five 16 Series inline female connectors on end and bare cable on the other, the TS600F-10-RGN allows qualified personnel to tie-in to a lug or bus bar (ring terminal required for bus bar).

Lex Products TS600F-10-RGN Cam Tail Set Features:

  • Weatherproof type cable assemblies
  • Hard usage single layer thermoset jacket
  • Provides excellent flexibility and resistance to oil and solvents
  • Heat and flame resistant - will not melt

Lex Products TS600F-10-RGN Cam Tail Set Specifications:

  • Rating: 400 Amps
  • Cable:
    • Cable Type: Weather resistant/UV resistant type SC hard usage cable
    • Temperature rating: -50°C to 105°C
    • Industry approvals: UL/MSHA Listed, RoHS compliant
    • Annealed Stranded Copper: per ASTM-B-172
    • Nominal strand: 1320 strands of 30 gauge wire
    • Nominal cable OD: 0.665"
  • Connector:
    • Connector Type: Cam-type female series 16 inline
    • NEMA rating: Type 3R - weatherproof
    • Sleeve material: santoprene (TPE)
    • Contact: Brass
    • Strain Relief: Copper shim & wire
