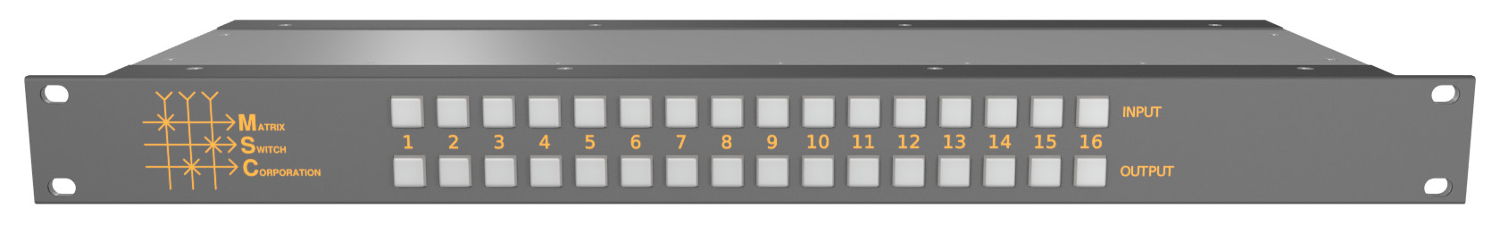

Matrix Switch Corporation MSC-DE1616L
16 Input 16 Output AES Audio Router With Button Panel

OUR PART #:  MSC-DE1616L

The Matrix Switch Corporation MSC-DE1616L uses the AES-3id standard which defines a 75-ohm BNC electrical variant of AES3.
Learn More
Our Price: $2,250.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Matrix Switch Corporation MSC-DE1616L
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Matrix Switch Corporation MSC-DE1616L uses the AES-3id standard which defines a 75-ohm BNC electrical variant of AES3. This can use the same cabling, patching and infrastructure as analog video, or it can be digital switcher designed for AES data rates and a 700mv to 1V input output interconnect. The AES-3id standard is also sometimes referred to as SMPTE 276M.

Matrix Switch Corporation MSC-DE1616L Features:

  • Supports all AES audio rates up to 192 KHz
  • Additional audio level can be connected to D25 connector (see Related Products), with break away from video support
  • Inputs can be switched to multiple outputs without restriction
  • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
  • Store and recall up to 10 preset salvos
  • Includes button control panel interface
  • Supports Matrix Switch Corporation Remote Panels
  • Ethernet port for control via built in web page interface or TCP/IP ports
  • Interactive web page interface (Interactive Demo)
  • Serial control via RS-232 port
  • Support for some common 3rd party protocols for added integration flexibility
  • System software updates over Ethernet port
  • External DC power supply
  • Complies with all relevant FCC, U/L, CE, and RoHS requirements
  • Backed by a full 2 year manufacturer parts and labor warranty

Matrix Switch Corporation MSC-DE1616L Specifications:

  • General:
    • Inputs: 16
    • Outputs: 16
    • Enclosure Type: 1RU
    • Size: 19" x 1.75" x 6"
    • Weight: 5.0 lbs
    • Power: 12 VDC 3A Adapter
    • Power Connector: 5.5mm OD 2.1mm ID coaxial
    • Panel Type: Buttons
    • Ethernet: 10 Base-T
    • Made in: USA
  • AES Audio:
    • Connector Type: BNC
    • Input Level: 200mV to 5V P-P
    • Input/Output Impedance: 75 Ohm +/- 1%
    • Output Level: 1V P-P
    • Output Impedance: 75 Ohm 1%
    • Standard: AES-3id (AES/EBU)
