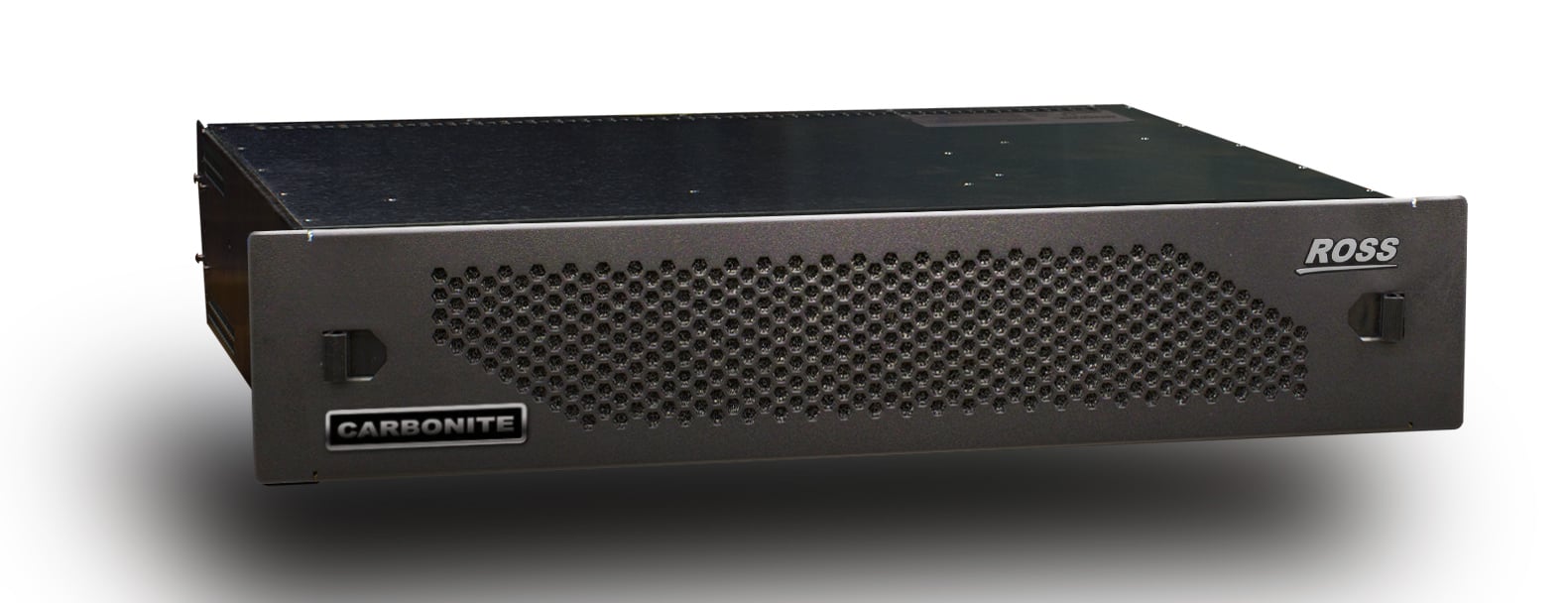

Ross Video Ltd CF-116
Carbonite Frame Only - 16 Inputs

OUR PART #:  CF116

NOTE : Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.
Learn More

Call for price! Not available online.
List Price: $14,070.00

Similar Products

NOTE: Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.

This standard frame configuration from Ross Video is the CF-116, a Carbonite Frame only, with 16 inputs that is one of their Carbonite Switcher offerings. This version of the Carbonite Frame supports either 4 or 8 channels of DVE, depending on the number of FSFCs required. Carbonite frames comes with a full 24 SDI video input BNCs. This upgrade option allows you to unlock the additional BNCs in software. Carbonite is used daily in a wide variety of production applications. Whatever your creation, Carbonite will give you all the horsepower you need to produce beautiful, crisp, clean television.

Ross Video CF-116 Features:

  • 2U rackmount
  • Suitable for 16 x 10 2ME Carbonite live production switcher
  • Supports either 4 or 8 channels of  DVE, depending on the number of FSFCs required
  • Upgrade option unlocks the additional BNCs in software

Ross Video CF-116 Specifications:

  • Model: CF-116
  • Number of ME Rows: 1
  • Number of inputs: 16
  • Number of outputs: 10
  • Frame Sync & Formate Converters: 6
  • Physical:
    • Width: 18.93" (48.08 cm)
    • Height: 3.5" (8.89 cm)
    • Depth: 17.10" (43.43 cm)
  • Connector Types:
    • Video I/O: BNC-Type
    • Serial Port: RJ-45
    • USB Port: A-Type
    • Tally Port: D-Type, 37-pin, Female
    • GPI I/O Port: D-Type, 37-pin, Female
    • Ethernet Port: RJ-45
    • Reference Out Port: BNC-Type
  • Power Consumption:
    • Consumption: 90W 7.5A 12V
    • Input Voltage:
      • 100 - 120V~
      • 220 - 240V~
      • 47-63Hz
      • 1.6A
  • Environmental:
    • Ambient Temperature Range: 32 - 104°F (0 - 40°C)
    • Frame Cooling: Active, Front-to-Back airflow
    • Control Panel Cooling: Power Supply
