Belden 1855P-1000
1000 ft 23 AWG Coaxial Sub-Miniature Plenum Cable

OUR PART #:

The Belden 1855P 23 AWG cable features a solid 0.023" bare copper conductor, gas-injected foam FEP insulation...
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

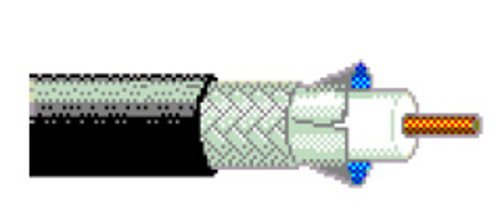

The Belden 1855P 23 AWG cable features a solid 0.023" bare copper conductor, gas-injected foam FEP insulation, Duofoil® plus a tinned copper braid shield (100% coverage), and a flexible Flamarrest® jacket.

Belden 1855P Specifications:

  • Conductor:
    • # Coax: 1
    • AWG: 23
    • Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Diameter: 0.023"
  • Insulation:
    • Insulation Material: Gas-injected FEP - Foam Florinated Ethylene Propylene
    • Diameter: 0.102"
  • Outer Shield:
    • Outer Shield Material:
      • Layer 1: Duofoil
        • Type: Tape
        • Material: Aluminum Foil-Polyester Tape-Aluminum Foil
        • Coverage: 100%
      • Layer 2: Braid
        • Material: TC - Tinned Copper
        • Coverage: 95%
  • Outer Jacket:
    • Trade Name: Flamarrest
    • Material: LS PVC - Low Smoke Polyvinyl Chloride
  • Overall Nominal Diameter: 0.159"

NOTE:For further specifications on this product, please refer to the attached Technical Data Sheet under the "Documentation" Tab.
