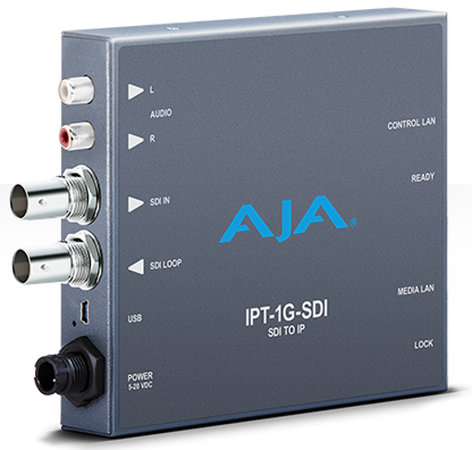

AJA Video Systems Inc IPT-1G-SDI
3G-SDI to JPEG 2000 IP Video and Audio Mini-Converter

OUR PART #:  IPT-1G-SDI

Bridging from SDI Video and Audio to TR-01 Compliant JPEG 2000 over IP...
Learn More
Our Price: $995.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc IPT-1G-SDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Bridging from SDI Video and Audio to TR-01 Compliant JPEG 2000 over IP, AJA's IPT-1G-SDI is a 3G-SDI to VSF TR-01 (and other JPEG 2000 formats) converter suited for video ingest from SDI based cameras, routers and digital recorders and players and distribution across an IP network for feeding to IPR-1G-SDI, IPR-G-HDMI or KONA IP receivers.

The IPT-1G-SDI is a 3G-SDI to VSF TR-01 (and other JPEG 2000 formats) converter suited for video ingest from SDI based cameras, routers and digital recorders and players and distribution across an IP network for feeding to IPR- 1G-SDI, IPR-G-HDMI or KONA IP receivers.

IPT-1G-SDI provides two key ports for control. The Control LAN Ethernet port enables control of the Mini-Converter from web browsers on any platform and REST clients. The USB 2.0 mini connector facilitates quick and simple firmware updates.

AJA Video Systems Inc IPT-1G-SDI Features:

  • 1 x 3G-SDI BNC input with 4:2:2 10-bits/pixel
  • 1 x 3G-SDI BNC loop through out with 4:2:2 10-bits/pixel
  • Essence support: VSF TR-01 and other JPEG 2000 MPEG-2 workflows
  • Rugged, fanless design
  • Audio input via embedded 3G-SDI or analog RCA (selectable)
  • Full 10-bit pixel processing pipeline
  • Network (LAN) control and status
  • Quick network setup with AJA eMini-Setup software
  • 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet control input
  • HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
  • Web and REST clients supported
  • 1x USB 2.0 Mini-B connector
  • AJA eMini-Setup software setup of network parameters

AJA Video Systems Inc IPT-1G-SDI Specifications:

  • Video Formats:
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080i 25, 29.97
    • (HD) 1280 x 720p 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Video Input Digital: 1 x 3G SDI BNC
    • 4:2:2 10-bits/pixel
  • Video Loop Through Digital: 1 x 3G SDI BNC
    • 4:2:2 10-bits/pixel
  • Audio Input Digital (User Selectable): 2-Channel SDI embedded audio, 24-bit per channel, 48 kHz synchronous
  • Audio Input Analog (User Selectable): 2 x RCA analog audio (2-Channel)
    • Levels at -10 dBu (nominal)
  • Essence Output:
    • 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
    • VSF TR-01 and other JPEG 2000 MPEG-2 TS workflows
  • User Controls:
    • 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
      • HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
      • Web and REST clients supported
    • 1 x USB 2.0 Mini-B (IEC 62680-1) connector
      • AJA eMini-Setup of network parameters
  • Size (WxDxH): 5.53” x 4.48” x 0.954” (140.462 x 113.792 x 24.232mm)
  • Weight: 0.6 lb (0.3 kg)
  • Power:
    • Uses AJA power supply model DWP-U-R1, included with purchase
    • 100-240V, 50/60 Hz Universal input
    • +5 to 20V DC regulated, 12 watts max
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <10,000 feet (<3,000 meters)
