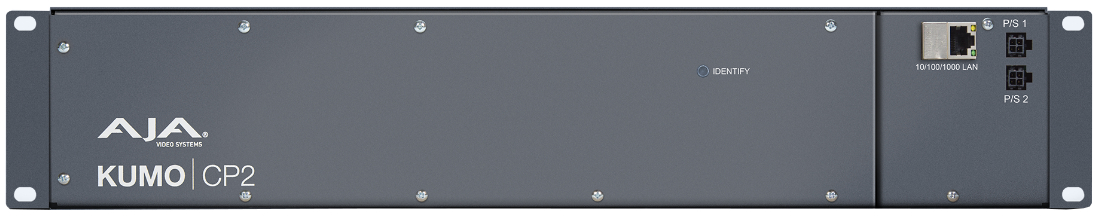

AJA Video Systems Inc KUMO-CP2
2RU Hardware Control Panel for KUMO Routers

OUR PART #:  KUMO-CP2

The AJA Video Systems Inc KUMO CP2 is a 2RU control panel that can be used in standalone or networked configurations suitable for all KUMO routers including the KUMO 6464.
Learn More
Our Price: $895.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc KUMO-CP2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Video Systems Inc KUMO CP2 is a 2RU control panel that can be used in standalone or networked configurations suitable for all KUMO routers including the KUMO 6464. Connecting via Ethernet to the same network as KUMO routers, KUMO CP2 enables full control from any location without the need for a computer. Up to four KUMO routers can be controlled from a single control panel. Supports ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for Dual Link, 4K and Ultra HD workflows. In addition to HD and SD, every KUMO can route 2 or 4 grouped 3G-SDI connections, supporting uncompressed or RAW 4K and UltraHD signals.

AJA Video Systems Inc KUMO CP2 Features:

  • 80 buttons
  • Remote router control
  • Multi-router configuration
  • Simple installation and configuration
  • Custom button labels
  • Affordable

AJA Video Systems Inc KUMO CP2 Specifications:

  • User Interface:
    • 80 buttons with removable overcap for lens chips
    • Includes factory installed lens chip set
    • High and Low button tally indication, configurable brightness
    • Controls up to four KUMO routers
    • Panel Lock feature
    • Destination Lock feature
  • Router Support:
    • KUMO 1604
    • KUMO 1616
    • KUMO 3232
    • KUMO 6464
  • Network Interface:
    • 1 x RJ-45, 10/100/1000 Ethernet
    • Embedded web server for remote control
  • Size (WxDxH): 2RU - 17.4" x 1.3" x 3.5" (482.6 x 33.0 x 89.0 mm)
  • Weight: 2.1 lb (1.0 kg)
  • Power:
    • 9-17VDC regulated, 4W typical, 9.6W max, power supply required, included with purchase
    • AC Adapter: 100-240VAC, 50/60 Hz, universal input
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <10,000 feet (<3,000 meters)
