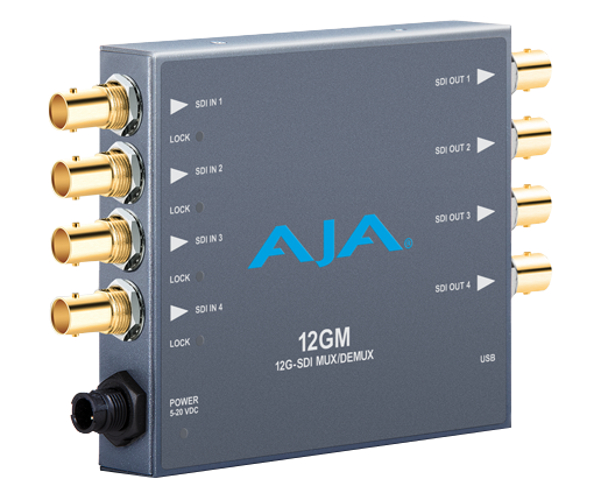

AJA Video Systems Inc 12GM
12G/6G/3G/1.5G HD/SD SDI Muxer/DeMuxer

OUR PART #:  12GM

The AJA Video Systems Inc. 12GM is a compact SDI transport converter that enables 12G-SDI to Quad 3G-SDI and Quad 3G-SDI to 12G-SDI conversion.
Learn More
Our Price: $895.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc 12GM
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Video Systems Inc. 12GM is a compact SDI transport converter that enables 12G-SDI to Quad 3G-SDI and Quad 3G-SDI to 12G-SDI conversion. The Muxer/ DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from multi-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates.

AJA Video Systems Inc. 12GM Features:

  • Compact 12G to/from 3G conversion
  • SMPTE 2082 inputs and outputs configurable to SMPTE 425 inputs and outputs
  • Converts SMPTE 425M A to/from SMPTE 425M B
  • Fully equalizing and reclocking with jitter attenuation
  • If SMPTE 292M is input, all outputs are 1.5G SMPTE 292M
  • DWP-U-R1 power supply included
  • Five Year warranty

AJA Video Systems Inc. 12GM Specifications:

  • Video Formats:
    • (4K) 4096x2160p
    • (UltraHD) 3840x2160p
    • (2K) 2048x1080p
    • (HD) 1920x1080p
    • (HD) 1920x1080i
    • (HD) 1280x720p
    • (SD) 720x576i
    • (SD) 720x480i
  • Video Input/Output Digital:
    • 4 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
    • 4:2:2 YCbCr
    • 4:4:4 YCbCr/RGB
    • 8 or 10 bit
    • Two Sample Interleave (2SI) source mapping
    • Square Division (Quadrant) source mapping
    • Single Link 12G-SDI, SMPTE 2082-10
    • Single Link 6G-SDI, SMPTE 2081-10
    • Single Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425-1
    • Dual Link 3G-SDI Level B-DS (2 x 3G), SMPTE-425-3
    • Quad Link 3G-SDI Level A or B-DL (4 x 3G), SMPTE-425-5
    • Dual Link HD-SDI (2 x 1.5G), SMPTE-372
    • Quad Link HD-SDI (4 x 1.5G)
    • Single Link HD, SMPTE-292
    • Single Link SD, SMPTE-259
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920 x 1080i 25, 29.97, 30
    • (HD) 1280 x 720p 50, 59.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Cable Equalization (Belden 1694A coax):
    • 12 Gbps, 90m
    • 6 Gbps, 125m
    • 3 Gbps, 160m
    • 1.5 Gbps, 200m
    • 270 Mbps, 470m
  • Audio Input / Output Digital: SDI embedded audio, 24-bit, 16-Channel
  • User Interface: USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows
  • Size (WxDxH): 5.76” x 4.02” x 0.90” (146mm × 102mm × 23mm)
  • Power:
    • 5-20VDC regulated, 12 watts, power supply required, included with purchase
    • AC Adapter: 100-240VAC, 50/60 Hz, universal input
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)*
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
      *12GM uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the 12GM with other Mini-Converters

NOTE: Product Specifications and feature availability subject to change without notice.
