AJA 12GDA 1x6 12G HD/SD SDI Reclocking Distribution Amplifier

OUR PART #: 12GDA MFR #: 12GDA-R0

Copied to clipboard

The AJA Video Systems Inc. 12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. ...Read more

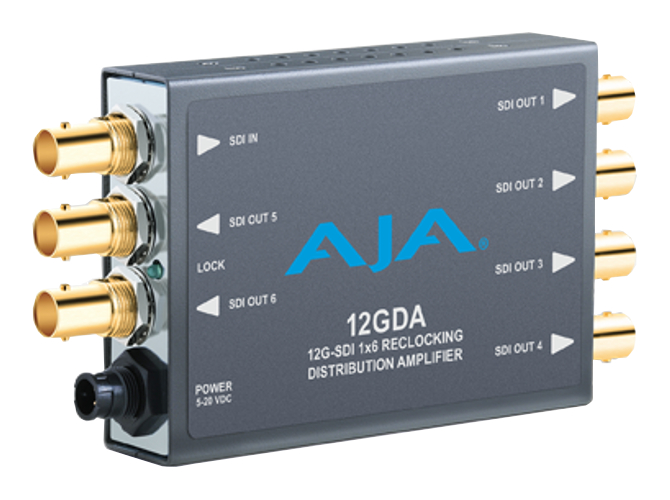

AJA 12GDA 1x6 12G HD/SD SDI Reclocking Distribution Amplifier Image 1
AJA 12GDA 1x6 12G HD/SD SDI Reclocking Distribution Amplifier Image 2
AJA 12GDA 1x6 12G HD/SD SDI Reclocking Distribution Amplifier
Our Price: $625.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The AJA Video Systems Inc. 12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.

Features

  • Compact 12G-SDI distribution
  • Six separately buffered outputs
  • Miniature size
  • 12G cable equalization (1694 coax)
  • 12 Gbps, 90m
  • 6 Gbps, 125m
  • 3 Gbps, 160m
  • 1.5 Gbps, 200m
  • 270 Mbps, 470m
  • 12G/6G/3G/HD/SD-SDI input, auto sensing
  • Passes all ancillary data
  • DWP-U-R1 power supply included
  • Five year warranty

Specifications

  • Video Formats: 100 Mbps - 12 Gbps, format agnostic
  • Video Input Digital: 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • Video Output Digital: 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • Cable Equalization (Belden 1694A coax):
    • 270 Mbps, 470m
    • 1.5 Gbps, 200m
    • 3 Gbps, 160m
    • 6 Gbps, 125m
    • 12 Gbps, 90m
  • Reclocking:
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
    • All other rates are passed through and not reclocked
  • Size (WxDxH): 5.8" x 3.1" x 1" (147 x 79 x 25mm)
  • Weight: 0.7 lb (0.3 kg)
  • Power:
    • +5-20VDC, regulated, 3 watts, power supply required, included with purchase
    • AC Adapter: 100-240VAC, 50/60 Hz, universal input
  • Environment:
    • Safe Operating Temperature: 32° to 104°F (0° to 40°C)
    • Safe Storage Temperature (Power OFF): -40° to 140°F (-40° to 60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: < 3,000 meters (< 10,000 feet)
