Eminence BETA-12A-2 12" Woofer for PA Applications

OUR PART #: BETA-12A-2 MFR #: BETA-12A-2

Copied to clipboard

Recommended for professional audio and bass guitar applications as a woofer in a vented enclosure. Also works well for PA in a sealed or bandpass enclosure. ...Read more

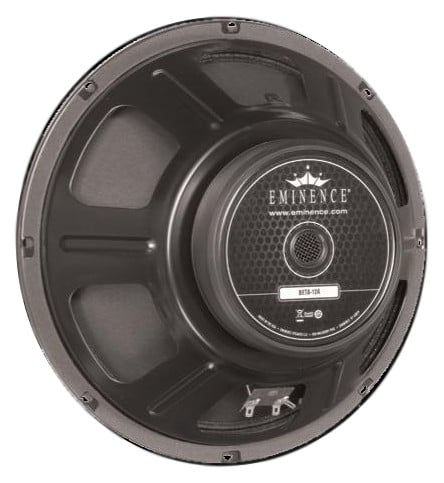

Eminence BETA-12A-2 12" Woofer For PA Applications Image 1
Eminence BETA-12A-2 12" Woofer For PA Applications Image 2
Eminence BETA-12A-2 12" Woofer For PA Applications
Our Price: $119.99
List Price: $144.99
You save 17%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Recommended for professional audio and bass guitar applications as a woofer in a vented enclosure. Also works well for PA in a sealed or bandpass enclosure.

Specification

Nominal Basket Diameter 12", 304.8mm

Nominal Impedance* 8 ohms

Power Rating**

Watts 250W

Music Program 500W

Resonance 47Hz

Usable Frequency Range 43Hz - 3.8kHz

Sensitivity*** 98dB

Magnet Weight 38 oz.

Gap Height 0.31", 7.92mm

Voice Coil Diameter 2", 50.8mm

Mounting Information

Recommended Enclosure Volume

Sealed 25.5-35.4 liters / 0.9-1.25 cu.ft.

Vented 36.8-139 liters / 1.3-4.9 cu.ft.

Driver Volume Displaced 122 cu.in. / 2 liters

Overall Diameter 12.03", 305.5mm

Baffle Hole Diameter 11.07", 281.2mm

Front Sealing Gasket Fitted as standard

Rear Sealing Gasket Fitted as standard

Mounting Holes Diameter 0.25", 6.4mm

Mounting Holes B.C.D. 11.59", 294.3mm

Depth 4.57", 116mm

Net Weight 7.5 lbs, 3.4 kg
