Product Overview
Transform your classroom into a collaborative learning space with Epson's BrightLink 695Wi ultra short-throw WXGA interactive display. Featuring 3,500 lumens of color and white brightness, the 695Wi delivers a dynamic, easy-to-read display up to 100" — from as close as 11" away. Turn almost any wall or existing whiteboard into an interactive workspace with touch-based interactivity — up to six users at once. Wirelessly display content from a variety of devices — including Chromebooks — using the Epson iProjection™ App with Moderator device management software. Plus, it includes a 1-year subscription to SMART Notebook.
Epson BrightLink 695Wi Includes:

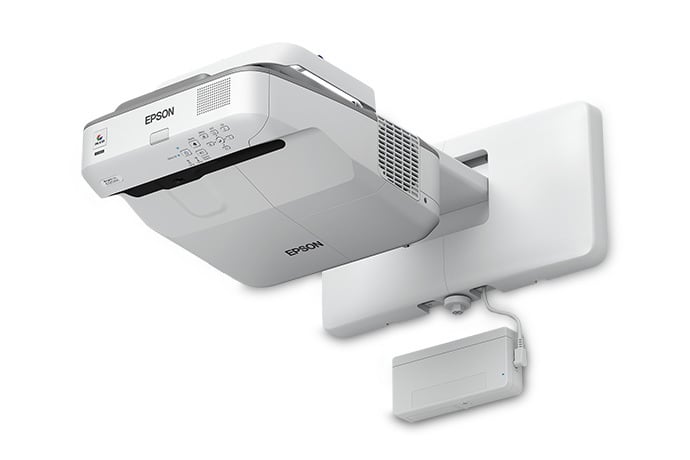

- BrightLink 695Wi ultra short-throw interactive projector
- Quick Start Guide
- 15ft power cable
- 5m USB A/B cable
- 5m USB extender cable
- Electronic user manual
- Interactive driver for Mac and PC
- Epson Easy Interactive Tools
- Network Management software
- Projector remote control
- Two (2) interactive pens
- Pen tray
- Two (2) AA batteries (for interactive pens) plus battery charger
- Two (2) AA batteries (for remote)
- Smart Notebook redemption code
- Soft pen tips (4)
- Hard pen tips (2)
- Touch module
- Touch module cable
- Touch module mounting bracket
Epson BrightLink 695Wi Features:
- Bright and Colorful: Features 3500 lumens of color brightness (color light output)1 and 3500 lumens of white brightness (whitelight output)
- WXGA Resolution: 1280 x 800 HD widescreen resolution
- Interactive: Make almost any smooth, lightly-colored surface interactive with BrightLink solutions
- Finger-Touch Enabled: Touch, draw, select and interact using intuitive and familiar gestures
- Multi-PC Projection and Moderator Function: Connect up to 50 devices over a network, and select up to 4 displays to project simultaneously – great for comparing students' work
- Ultra-Short Throw Projector: Can be mounted only 11" away from the board for a projected image as large as 100" diagonal – with no shadow interference
- Bright display: 3,500 lumens color/white brightness
- Pen- and touch-based interactivity: Touch interactivity allows up to six users to draw, share and collaborate at once using familiar gestures
- Wirelessly connect up to 50 devices: Simultaneously share and control content from up to four screens at once using Moderator software, including Chromebook, PC, Mac, iOS® and Android™ devices
- Easy content sharing: Share images between the big screen and wirelessly connected mobile devices, for individualized learning
- Seamless integration with popular curriculum software: Includes 1-year subscription and support for SMART Notebook®
- Ultra short-throw interactive display: Get a large, easy-to-read 100" image from as little as 11" away with virtually no shadow interference
- Long-life, low-cost lamps: Lasts up to 10,000 hours in ECO Mode
- DuoLink: Install two BrightLink displays side-by-side to create one seamless interactive surface6
- 3x Higher Color Brightness, and reliable performance: 3LCD, 3-chip technology
Epson BrightLink 695Wi Specifications:
- Model: V11H740522
- Projection System: Epson 3LCD, 3-chip technology
- Projection Method: Front/rear/wall mount/table mount
- Driving Method: Epson Poly-silicon TFT Active Matrix
- Pixel Number: 1,024,000 dots (1280 x 800) x 3
- Color Brightness - Color Light Output: 3,500 lumens
- White Brightness - White Light Output: 3,500 lumens
- Aspect Ratio: 16:10
- Native Resolution: 1280 x 800 (WXGA)
- Lamp Type: 250 W UHE
- Lamp Life: ECO Mode: Up to10,000 hours, Normal Mode:Up to 5,000 hours
- Throw Ratio Range: (16:10) 0.28 – 0.37, (4:3) 0.33 –0.45, (16:9) 0.28 – 0.37
- Size - projected distance: (4:3) 53" – 88"; (16:10)60" – 100"; (16:9) 59" – 97"
- Keystone Correction:
- Horizontal: ±3°
- Vertical: ±3°
- USB Plug 'n Play:
- For Mac: Mac OS® 10.7/10.8/10.9/10.10/10.11/macOS™ 10.12.x
- For Windows: Windows Vista®/Windows 7/Windows 8/Windows 10
- Contrast Ratio: Up to 14,000:1
- Color Reproduction: Up to 1 billion colors
- Interactive Color Brightness - Color Light Output:3,500 lumens
- Interactive White Brightness - White Light Output:3,500 lumens
- Projection Lens:
- Type: Manual focus
- F-number: 1.6
- Focal Length: 3.7 mm
- Zoom Ratio: Digital zoom: 1.0 – 1.35x
- Interactive Specifications:
- Interactive Connectivity: USB cable for non-networked
- Interactive Technology: Infrared, 850 nm
- Interactive Modes: Computer Interactivity/Input, PC-free with Whiteboard Annotation, Pen: Dual User, Finger Touch: Up to 6 points of touch
- Interactive Area: 60" – 100" diagonal (16:10, WXGA)
- System Compatibility: Microsoft® Windows Vista, Windows Vista SP1, Windows Vista SP2 (All editions except for Starter), Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter), Mac OS 10.7/10.8/10.9/10.10/10.11/macOS 10.12.x
- PC-Free Annotation: Two pens and two fingers
- PC-Free Annotation Tools: Document Cameras, DVD/Blu-ray Disc® player, iPod®/iPad® devices, Chromebooks
- PC-Free Annotation Sources: USB, HDMI, Computer 1, Computer 2, LAN
NOTES:
* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. The projectors used by a third-party lab for measuring color brightness were leading Epson 3LCD business and education projectors and leading 1-chip DLPprojectors, based on NPD sales data for June 2013 through May 2014 and PMAResearch sales data for Q1 through Q3 2013.
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. TheEpson iProjection App does not support all files and formats. See www.epson.com for details.
3 Moderator feature is part of EasyMP Multi-PCProjection software.
4 SMART Learning Suite combines SMART Notebook, SMART amp and SMART Lesson Activity Builder.
5 ECO Mode is up to 10,000 hours. Normal Mode is upto 5,000 hours. Lamp life will vary depending upon mode selected,environmental conditions and usage. Lamp brightness decreases over time.
6 Certain functionality is only available through Epson Interactive Tools (EIT) software. For a list of supported operating systems, visit www.epson.com
