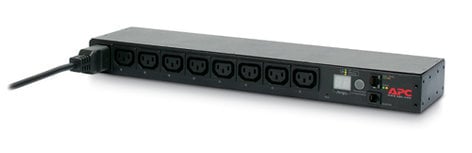

American Power Conversion AP7921B 1RU Switch Rack PDU with 8 Outlets, 16A, 208/230V

OUR PART #: AP7921B MFR #: AP7921B

Copied to clipboard

The APC AP7921B Switched Rack Power Distribution Unit (PDU) distributes power to devices in the rack. ...Read more

American Power Conversion AP7921B 1RU Switch Rack PDU With 8 Outlets, 16A, 208/230V Image 1
American Power Conversion AP7921B 1RU Switch Rack PDU With 8 Outlets, 16A, 208/230V Image 2
American Power Conversion AP7921B 1RU Switch Rack PDU With 8 Outlets, 16A, 208/230V
Our Price: $959.00
List Price: $1,230.00
You save 22%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The APC AP7921B Switched Rack Power Distribution Unit (PDU) distributes power to devices in the rack. This PDU provides advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.

APC AP7921B Switch Rack PDU Features:

  • Standards-based management via Web, SNMP, and Telnet
  • Network and visual alarms alert user of possible problems
  • Remote individual outlet control
  • Load current monitoring display
  • Flash upgradeable
  • Integrates with StruxureWare Data Center Expert
  • Load indicator LED
  • Single input power source

APC AP7921B Switch Rack PDU Specifications:

  • Electrical:
    • Input connectors: IEC-320-C20 inlet
    • Output connectors: Eight IEC-320-C13 outlets
    • Cord length: 8 ft (2.4 m)
    • Nominal input voltage: 208 –230 VAC
    • Acceptable input voltage: 200 –240 VAC
    • Input frequency: 50/60 Hz
    • Maximum current:
      • 16A max total; 12 A max/outlet (UL)
      • 12A max total; 12 A max/outlet (cUL)
      • 16A max total; 10 A max/outlet (VDE)
    • Physical:
      • Dimensions (HxWxD): 1.73" x 17.50" x 4.25" (4.45 x 44.45 x 10.80 cm)
      • Weight: 5 lbs (2.26 kg)
      • Shipping weight: 7.6 lbs (3.4 kg)
    • Environmental:
    • Elevation (above MSL):
      • Operating: 0 to 10,000 ft (0 to 3000 m)
      • Storage: 0 to 50,000 ft (0 to 15 000 m)
    • Temperature:
      • Operating: 23° to 113°F (–5° to 45°C)
      • Storage: -13° to 149°F (-25° to 65°C)
    • Humidity:
      • Operating: 5 to 95%, non-condensing
      • Storage: 5 to 95%, non-condensing
    • Compliance:
    • Safety: UL, cUL, CE, VDE
    • EMC: FCC Part 15 Class A, ICES-003, VCCI, EN55022, EN55024, AS/NZS
