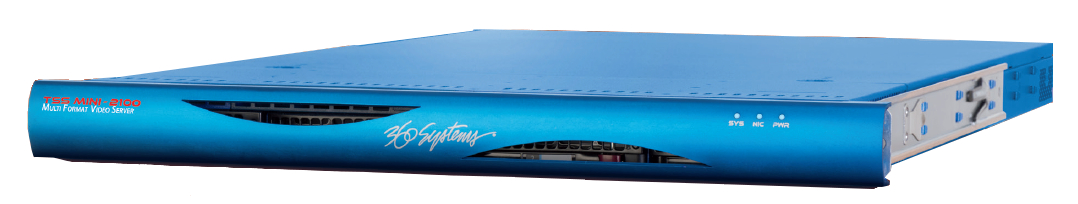

360 Systems TSS MINI-2100 Multi Format Broadcast Video Server with 4TB storage and Remote Workstation

The short, 1U chassis TSS Mini-2100 is just as powerful as the full size TSS servers, along with the same great features. That makes the TSS MINI-2100 from 360 Systems ideal for all applications – big or small. The TSS MINI-2100 offers a single bi-directional channel and a single playout channel. The TSS MINI System incorporates a graphic user interface (GUI) which provides quick access to every server function. It is controlled by a standard keyboard and mouse (supplied) and requires only a SVGA display. The full GUI is also available from remote workstations installed on a PC platform.

360 Systems’ TSS MINI Multi Format Video Server is a multi-channel, multi-format high-definition / standard-definition video recorder/server designed for broadcast, production, and Pro A/V applications. The server’s extensive feature set makes it an excellent choice for VTR replacement, broadcast automation, remote trucks, corporate, educational, house-of-worship, and live entertainment presentations. Each TSS MINI Multi Format Video Server input and output can be independently configured for standard definition or high definition at 720p or 1080i.

360 Systems TSS MINI-2100 Applications:

• Budget conscious broadcasters
• requiring multiple channels
• Broadcast trucks
• Backup systems
• Public broadcasting
• Government meetings
• Education
• Stadiums
• Record and store
• Video insertion
• Production

360 Systems TSS MINI-2100 Features:

• 2 Channels, 1 Record/Playout and 1 Playout – TSSMINI-2100
• 1U, Short Chassis Form Factor
• 16 Channels Embedded Audio
• H.264 and MPEG2 Encoding / Decoding
• Automatic Up/Down/Cross Conversion of HD or SDcontent
• Remote Control From PC’s via Ethernet
• Redundant Power / Cooling

360 Systems TSS MINI-2100 Specifications:

• VIDEO:
  • Video Input: 1 Channel
  • Video Outputs: 2 Channels
  • Simultaneous video streams: 2 (1 record 1 playout, 2 playout)
  • HD Input/Output: HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
  • Video Format: 1080i at 29.97 or 25 Hz; 720p at 59.94 or 50 fps; 525/60 NTSC; 625/50 PAL
  • Encoding Format: H.264 or MPEG2
  • HS/SD Scaling: Up, Down, and Cross Conversion of Any File Format to Selected Output
  • Jog/Shuttle: Zero to 128X, forward/reverse
  • Slow Motion Play with audio: Zero to +/- 2X, forward/reverse
  • Frame Accuracy: Frame accurate play, pause and stop
  • Genlock Input: Blackburst or tri-level
• ANCILLARY DATA:
  • Ancillary Data: HD – 608/708 in VANC; SD – Line 21 VBI
• AUDIO INPUTS / OUTPUTS (per video channel):
  • SDI Embedded Audio: 16 channels
• STORAGE:
  • Disk Storage System: SATA array, four – 1 or 2 Terabyte drives, RAID 5 controller
  • Total Capacity: 8 Terabytes (4 Terabytes standard model)
  • Drive Replacement: Hot Swappable
• CONNECTIVITY:
  • Networking: Gigabit Ethernet
  • Serial Control: VDCP or Odetics protocols, 9-pin on CXP-5 module (optional).
  • GPI Control: 12 Inputs, Outputs, Programmable on CXP-5 module (optional)
• MISCELLANEOUS:
  • Fault Monitoring LEDs: Front Panel LEDs, power, system, network
  • Fault Monitoring Output: GPI output, open collector
  • Software Updates: USB
  • Power Supply: Dual Redundant, 100-250V – 50/60 Hz. 400W, rear panel plug-in
  • Cooling: Redundant fans
  • Chassis: 1-RU x 19” Rack, Weight: approx 45 lb. (22 kg)
• EXPANSION MODULES:
  • CXP-5: Serial and GPI control module. 1 RU (optional)
