Blackmagic Design UltraStudio HD Mini TBolt 3 Capture and Playback Solution

The Blackmagic Design BDLKULSDMINHD UltraStudio HD Mini includes 3G-SDI, analog YUV and composite NTSC/PAL video inputs, two channel analog audio in, and reference as well as RS-422 for deck control. For output, you get dual link 3G-SDI with simultaneous fill and key, plus HDMI. UltraStudio Mini also features Thunderbolt 3 so you get incredible 40 Gb/s performance for capture and playback of fully uncompressed video, leaving your computer’s CPU free for more processing tasks.

Blackmagic Design UltraStudio HD Mini Includes:

• Title Software Installer
• Welcome booklet QR code
• BlackmagicDesign logo sticker
• Davinci Resolve QR code to access free download

Specifications

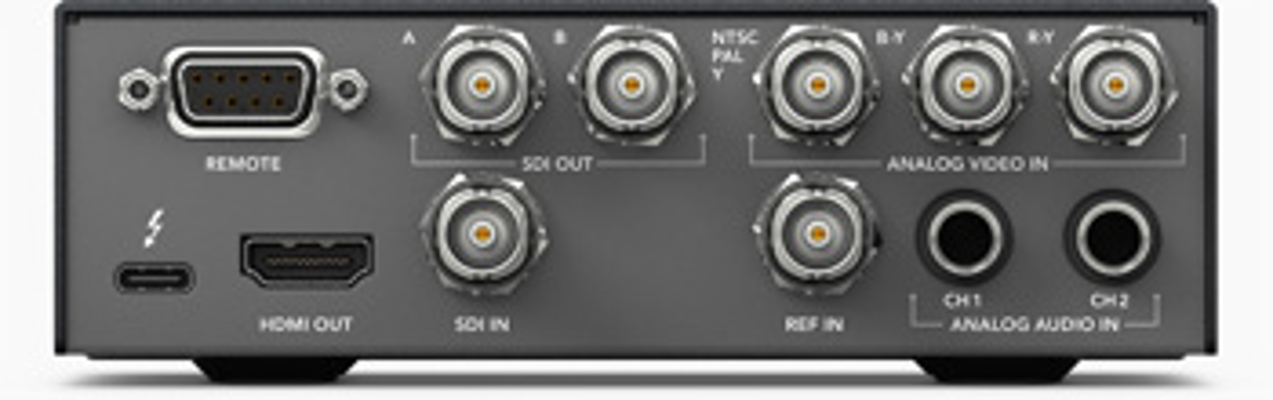

• Connections:
  • SDI Video Inputs: 1 x 3Gb/s SD/HD switchable
  • SDI Video Outputs: 2 x 3Gb/s SD/HD switchable, supports fill and key
  • SDI Rates: 270Mb, 1.5G, 3G
  • HDMI Video Outputs: 1 x HDMI 1.4b type A connector
  • Analog Video Inputs: Y, B-Y, R-Y/NTSC/PAL
  • Analog Audio Inputs: 2 x 1/4 inch jack connectors for balanced and unbalanced analog audio
  • SDI Audio Inputs: 16 Channels embedded in SD and HD
  • SDI Audio Outputs: 16 Channels embedded in SD and HD
  • HDMI Audio Outputs: 2 Channels embedded in SD and HD
  • Reference Input: Tri-Sync or Black Burst
• Video Standards:
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  • SDI Metadata Support: RP 188/SMPTE 12M-2 and closed captioning
  • Audio Sampling: Television rate of 48kHz and 24 bit
  • SDI Video Sampling: 4:2:2/4:4:4
  • Color Space: REC 601, REC 709
• Physical Installation: Requires computer with a Thunderbolt™ 3 USB-C port
• Power: Powered by Thunderbolt cable
• Dimensions (WxDxH): 5.51" x 6.69" x 1.75" (14 x 17 x 4.45 cm)
• Weight: 1.34 lbs (0.61 kg)
