Shure GLXD24R/SM86
Advanced Handheld Wireless Vocal System with SM86 Capsule

OUR PART #:  GLXD24R/SM86

Part of Shure's GLX-D® Advanced wireless systems series, the GLXD24R/SM86 Handheld Wireless System features strong RF performance, intelligent battery rechargeability...
Learn More
Our Price: $649.00
List Price: $811.00
You save 20%!
Write the first review.
Shure GLXD24R/SM86
Qty:
In Stock

Related Products

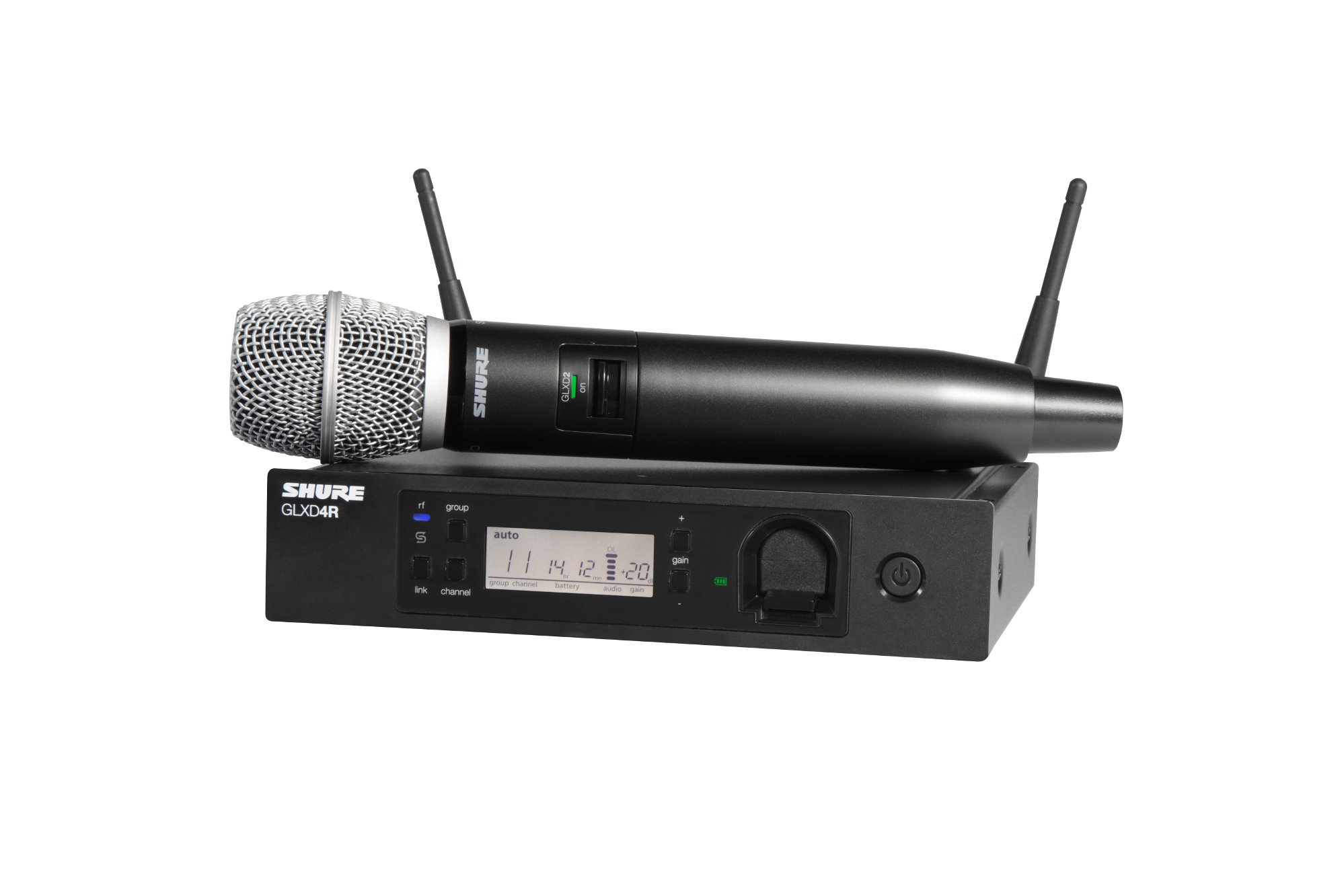

Part of Shure's GLX-D® Advanced wireless systems series, the GLXD24R/SM86 Handheld Wireless System features strong RF performance, intelligent battery rechargeability, automatic frequency management, and increased channel count with remarkable digital audio clarity along with seamless operation. The industry-standard SM86 vocal mic capsule provides warm and clear reproduction of vocals. For use with GLX-D Frequency Managers (UA846Z2, sold separately).

Shure GLXD24R/SM86 System Includes:

  • GLXD2/SM86 handheld transmitter with included SM86 cardioid condenser microphone capsule
  • GLXD4R rack-mount receiver
  • Microphone clip
  • SB902 rechargeable lithium-ion battery
  • USB charge cable
  • (2) detachable antennas
  • Rack-mount hardware
  • User guide

Shure GLXD24R/SM86 System Features:

GLXD2 Handheld Transmitter

  • Automatically links to GLXD4R receiver
  • GLXD2 integrated with quality SM86 capsule
  • Operating Range:
    • Indoors: Up to 100ft (30m) typical, with a maximum of 200ft (60m) under ideal conditions
    • Outdoors: Up to 65ft (20m) typical, with a maximum of 165ft (50m) under ideal conditions
  • Up to 16 hours of use from a full charge
  • Sophisticated design with durable, lightweight construction

GLXD4R Rack-Mount Receiver

  • Integrated battery charge port for intelligent Shure lithium-ion transmitter batteries, 2-color charge indicator LED
  • Detachable antennas for remote mounting
  • Remote adjustable transmitter gain control
  • Hi-res LCD screen status display
  • XLR and ¼" output connectors
  • Rugged metal chassis design
  • Included rack-mount hardware

Shure GLXD24R/SM86 System Specifications:

GLXD2 Handheld Transmitter

  • Dimensions (SM58, L x ø): 9.9 × 2.0 in. (252 × 51 mm)
  • Weight: (SM58, without batteries): 9.4 oz. (267 g)
  • Power Requirements: 3.7 V Rechargeable Li-Ion
  • RF Output Power: 10 mW E.I.R.P. max
  • Maximum Input Level: 145 dB SPL
  • Housing: Molded Plastic

GLXD4R Rack-Mount Receiver

  • Dimensions (H × W × D): 1.7" × 7.8" × 6.4" (42 × 197 × 163mm)
  • Weight: 32 oz. (907.2 g) without batteries
  • Housing: Steel
  • Power Requirements: 14 to 18 VDC (tip positive with respect to ring) 550 mA
  • Spurious Rejection: >35 dB, typical
  • Gain Adjustment Range: -18 to 42 dB in 1 dB steps
  • Phantom Power Protection: Yes
  • Mic/Line Switch: 30 dB Pad
  • Receiver Antenna Input:
    • Impedance 50-ohms
    • Antenna Type: ½-Wave Sleeve Dipole
    • Maximum Input Level: -20 dBm
