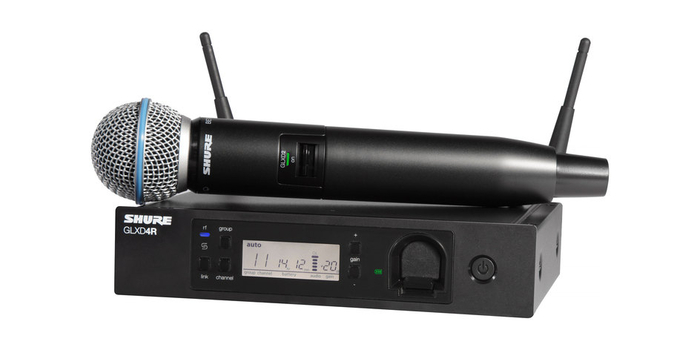

Shure GLXD24R/B58-Z2 Advanced Digital Wireless System with Beta 58A Handheld Mic

OUR PART #: GLXD24R/B58 MFR #: GLXD24R/B58-Z2

Copied to clipboard

The Shure GLXD24R/B58 Handheld Wireless System is part of the GLX-D Advanced wireless systems family. ...Read more

Shure GLXD24R/B58-Z2 Advanced Digital Wireless System With Beta 58A Handheld Mic Image 1
Shure GLXD24R/B58-Z2 Advanced Digital Wireless System With Beta 58A Handheld Mic Image 2
Shure GLXD24R/B58-Z2 Advanced Digital Wireless System With Beta 58A Handheld Mic Image 3
Shure GLXD24R/B58-Z2 Advanced Digital Wireless System With Beta 58A Handheld Mic Image 4
Shure GLXD24R/B58-Z2 Advanced Digital Wireless System With Beta 58A Handheld Mic
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Shure GLXD24R/B58 Handheld Wireless System is part of the GLX-D Advanced wireless systems family.

GLX-D Advanced Digital Wireless Systems combine Automatic Frequency Management technology with a rack mountable metal receiver, rechargeable lithium-ion batteries, world-renowned microphones, and unparalleled design and construction. New GLX-D Advanced Frequency Managers (available separately) connect multiple GLXD4R receiver systems for increased channel count and improved RF reliability, consolidating RF to one pair of antennas. New antenna accessories help improve reception by letting you mount antennas closer to transmitters, with directional reception for improved performance. Available in a variety of bodypack and handheld configurations, GLX-D Advanced Digital Wireless sets the standard for ease of operation and digital audio clarity.

The GLXD4R is a rack mount receiver that delivers exceptional digital audio clarity. In combination with the GLXD Advanced Frequency Manager (available separately) GLXD4R provides seamless operation with advanced RF performance. GLXD proprietary Lithium-Ion rechargeable batteries offer up to 16 hours of continuous use for the GLXD transmitters.

Includes

  • GLXD4R Rack Mount Receiver
  • Beta58A Handheld Microphone
  • Reverse SMA Bulkhead Adapters, lockwasher, nut
  • 0.6 m (2 ft.) Reverse SMA Cable
  • Power Supply
  • UA8-2.4 GHz 1/2 Wave Antenna
  • Rack-mounting hardware kit
  • Shure Lithium-Ion Rechargeable Battery SB902A
  • USB Cable, Type A to Micro-B

Features

  • Exceptional digital audio clarity
  • Operates in globally unlicensed 2.4 GHz spectrum
  • Optional GLX-D Frequency Manager allows operation of up to 11 systems
  • New antenna accessories for remote mounting and improved reception
  • Half-rack size and metal chassis
  • Rechargeable batteries deliver cost efficiency and up to 11.5 hours of runtime
  • Adjustable transmitter gain to optimize audio signal
  • Automatically moves away from interference without audio interruption
  • RF back-channel for remote control of transmitter functions
  • Automatic transmitter power-off to conserve battery life when transmitter is not in use

Specifications

  • Tuning Bandwidth: 2400–2483.5 MHz
  • Working Range:
    • Indoor: 30 m (100 ft) typical, up to 60 m (200 ft) maximum
    • Outdoor: 20 m (65 ft) typical, up to 50 m (165 ft) maximum
  • Transmit Mode: Shure GLX-D proprietary digital
  • Audio Frequency Response: 20 Hz– 20 kHz
  • Dynamic Range: 120 dB, A­weighted
  • RF Sensitivity: ­88 dBm, typical
  • Total Harmonic Distortion: 0.2%, typical
  • RF Output Power: 10 mW E.I.R.P. max
  • Operating Temperature Range: -18°C (0°F) to 57°C (135°F)
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low­impedance output) and the tip of the high impedance 1/4-inch output.
  • Battery Life: Up to 16 hours
  • Channel Count: 9 typical, 11 maximum
  • Transmitter Input
    • Connector: 4-Pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Maximum Input Level, 1 kHz at 1% THD: +8.4 dBV (7.5 Vp­p)
    • Antenna Type: Internal Monopole
  • GLXD2/B58
    • Dimensions (capsule end x length x connection end): 51 mm, (2.0 in.) x 252 mm, (9.9 in.) x 37 mm, (1.5 in.)
    • Weight: 221 g (7.8 oz.) without batteries
    • Housing: Molded Plastic
    • Power Requirements: 3.7 V
    • Rechargeable Li-Ion
    • RF Output Power
    • 10 mW E.I.R.P. max
    • Maximum Input Level: 147 dB SPL
