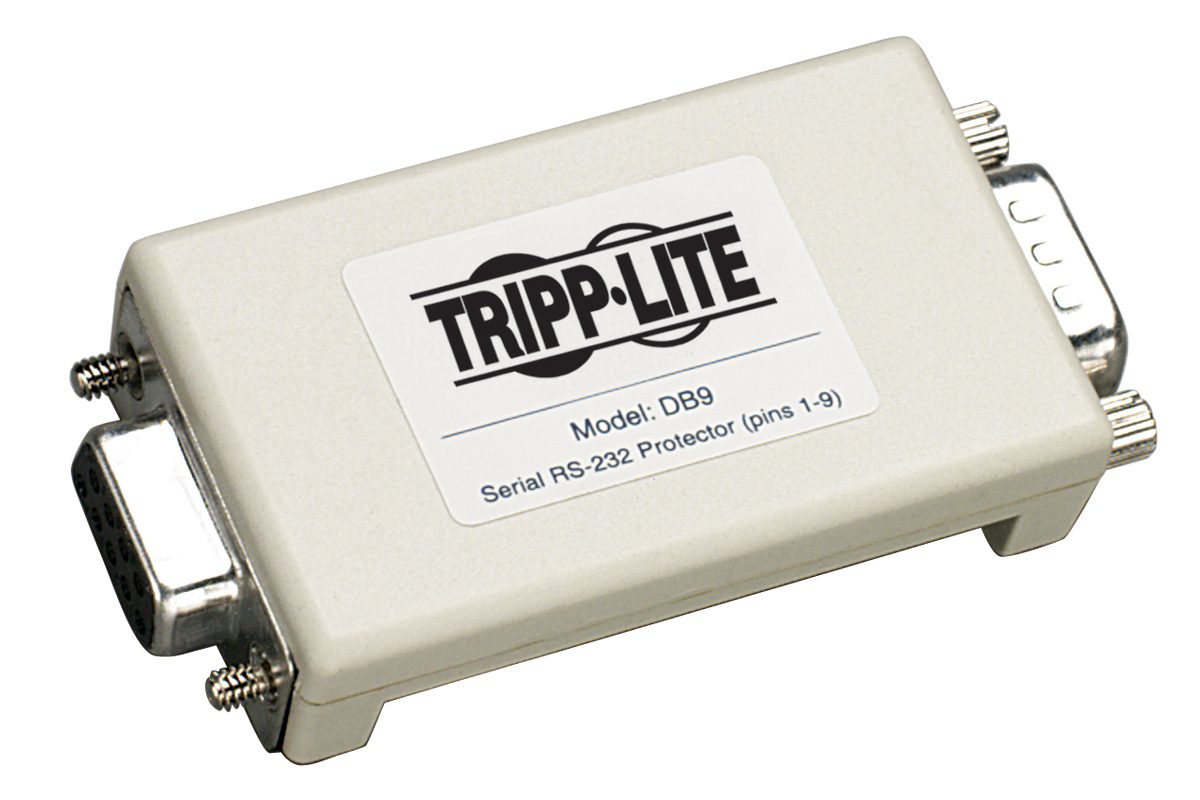

Tripp Lite DB9
Datashield Serial In-Line Surge Protector, 120V/230V

OUR PART #:  DB9

Tripp Lite's DB9 offers dataline surge suppression for DB9 serial ports of data terminal and data communications equipment, including PCs, printers, modems and more.
Learn More
Our Price: $16.58
List Price: $22.10
You save 25%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Tripp Lite DB9
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Tripp Lite's DB9 offers dataline surge suppression for DB9 serial ports of data terminal and data communications equipment, including PCs, printers, modems and more. User configurable for use with male or female captive DB9 ports, this surge protector offers protection on all 9 lines, plus D shell chassis. The convenient DB9 input and output connects directly to the protected port, obtaining a ground outlet from the computer chassis. Surge suppression is handled with balanced arrays of high-speed avalanche diodes that divert excess energies created by electrostatic discharges, faulty wiring or lightning away from network interface connections. Tripp Lite network surge suppressors reduce blown interface cards, garbled transmissions, system lock-ups and hard equipment failure by safely shunting dataline surges to ground.

Tripp Lite DB9 In-Line Surge Protector Features:

  • DB9 protects 9 pin serial connections for dataline surge suppression of data terminal, data communications equipment and PCs, printers, modems and more
  • Reversible for use with male or female captive DB9 ports
  • Offers protection on all 9 data lines, plus D shell chassis
  • Surge suppression utilizing high speed avalanche diodes divert excess energies on the network to ground

Tripp Lite DB9 In-Line Surge Protector Specifications:

  • Output:
    • Output Receptacles: (1) Network
    • Circuit Breaker: 340A
  • Input:
    • Nominal Input Voltage(s) Supported: 120V AC; 230V AC
    • Recommended Electrical Service: 120V, 230V
    • Input Connection Type: DB9
    • Right-Angle Plug: No
  • Surge/Noise Suppression:
    • AC Suppression Joule Rating: 0
    • Clamping Voltage (RMS): 18
  • Dataline Surge Suppression:
    • Telephone/DSL Protection: No
    • Cable (Coax) Protection: No
    • Network (Ethernet) Protection: No
    • Additional Dataline Protection: 1-9 & Chassis
  • Warranty:
    • Product Warranty Period (Worldwide): Lifetime limited warranty
