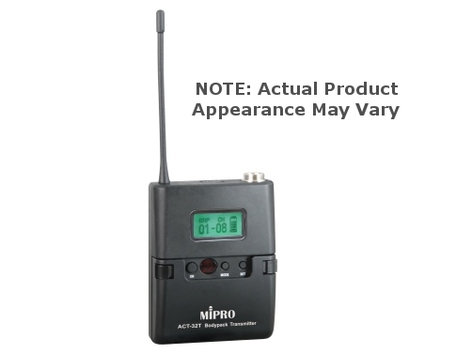

MIPRO ACT-32T
Miniature Body Pack Wireless Transmitter ONLY, 6A Version with TA4F Connector

OUR PART #:  ACT32T-6A

The MIPRO ACT-32T (6A version) is a bodypack transmitter that operates in the 620-644 MHz frequency range (Frequency Band: 6A).
Learn More
Our Price: $145.00
List Price: $165.00
You save 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

MIPRO ACT-32T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MIPRO ACT-32T (6A version) is a bodypack transmitter that operates in the 620-644 MHz frequency range (Frequency Band: 6A). This compact, lightweight transmitter has a sturdy plastic housing and features a mute switch, TA4F connector, and antenna. Note: requires a compatible microphone for functional use (sold separately - see list below. Contact your Sales Pro for more information).

Compatible MIPRO Microphones (all sold separately):

  • MU-53L
  • MU-53LS
  • MU-55L
  • MU-55LS
  • MU-53HN
  • MU-53HNS
  • MU-55HN
  • MU-55HNS

MIPRO ACT-32T Features:

  • Backlit LCD displays various parameters and status.
  • Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
  • Mute button with remote-control jack for easy activation of mute function.
  • Stable PLL circuits. Automatically synchronized with the receiver's frequency by MIPRO's patented ACT™ function.
  • Can directly match to high-low input impedance for microphone or guitar without switching.
  • Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
  • Adjustable belt clip allows wearing transmitter in up or down position.
  • High-efficiency circuitry design provides 12~14 hours of operation from 2 AA batteries (depending on the battery quality).

MIPRO ACT32T-6A Specifications:

  • Frequency Range (UHF):
    • 6A Frequency Band:
      • 620-644 MHz
      • UHF Channels 39-42
  • Bandwidth: 24 MHz
  • Oscillation Mode: PLL Synthesized
  • Channel Set-Up: ACT Sync
  • RF Output Power: 10 mW / 30 mW (switchable)
  • Deviation: < +/- 40 kHz
  • Spurious Emissions: </= -55 dBc
  • LCD Display: Group, Channel, Frequency, AF gain, Frequency band, RF power, Mute mode, Lock status, Battery status, and error codes
  • Max. Input Level: 0 dBV
  • Mute Connector: Optional MJ-70 remote mute switch (sold separately)
  • Battery Type: 2 AA alkaline
  • Operating Time: Min. 12 hours
  • Current Consumption:
    • High Power: approx. 161 mA
    • Low Power: approx. 120 mA
  • Dimensions (W×H×D): 2.5 × 3.2 ×0.9 " (63×82×22mm)
  • Net Weight Approx.: 2.9 oz (83 g)
