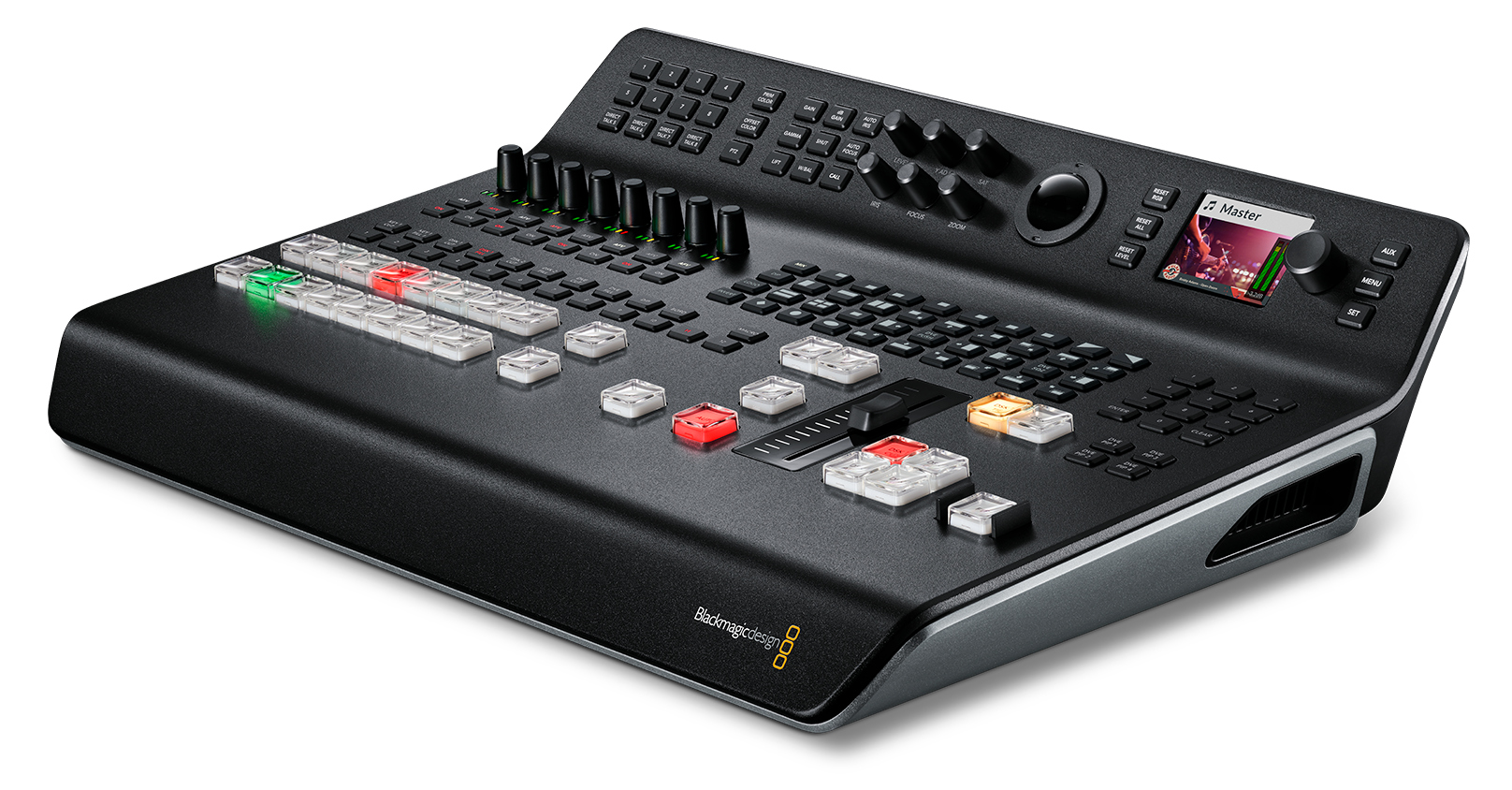

Blackmagic Design ATEM Television Studio Pro HD
Live Production Switcher with Integrated Hardware Control Panel

OUR PART #:  SWATEMTVSTU/PROHD

Our Price: $2,180.25
List Price: $2,295.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design ATEM Television Studio Pro HD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NOTE: IEC Cable is NOT Included and Must be Purchased SEPARATELY

Blackmagic Design's ATEM Television Studio Pro HD is the first production switcher designed for both broadcasters and AV professionals with a fully featured hardware control panel built in. It includes 4 SDI and 4 HDMI inputs with re-sync on all inputs so you can use it with broadcast or consumer cameras. Plus, you get multiview output so you can see all of your sources, preview and program on a single screen, aux out, built in talkback, 2 still stores, an audio mixer, camera control unit and more!

ATEM Television Studio Pro HD also has an integrated professional broadcast hardware control panel and additional CCU controls. ATEM Television Studio Pro HD is packed with high end features and is perfect for live production, episodic television programming, web shows, AV or even live coverage of gaming competitions! Simply plug in cameras, game consoles or computers and start switching live!

Blackmagic ATEM Television Studio Pro HD Includes:

  • ATEM Television Studio Pro HD
  • SD card with software and manual

Blackmagic ATEM Television Studio Pro HD Features:

  • Professional Transitions
  • Custom Macros
  • Keyer Control
  • Media Players
  • Built in LCD
  • Talkback and Remote Camera Control
  • Color Correction

Blackmagic ATEM Television Studio Pro HD Specifications:

  • Model: SWATEMTVSTU/PROHD
  • Connections:
    • Total Video Inputs: 8
    • Total Outputs: 8
    • Total Aux Outputs: 1
    • SDI Rates: 270Mb, 1.5G, 3G
    • Total Audio Inputs: 2 x XLR
    • Total Audio Outputs: None, embedded audio only
    • SDI Video Input:
      • 4 x 10-bit SD/HD switchable
      • 2 channel embedded audio
    • HDMI Video Inputs:
      • 4 x HDMI type A, 10-bit SD/HD switchable
      • 2 channel embedded audio
    • Reference Inputs: Tri-Sync or Black Burst
    • Video Input Re-Sync: On all 8 inputs
    • SDI Program Outputs: 5 x 10-bit SD/HD switchable
    • SDI Audio Outputs: 2 Ch embedded into SDI output
    • Multi View Monitoring: 1
    • Multi View Video Standard: 1 x HD-SDI and 1 x HDMI
  • Standards:
    • SD Video Standards: 525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
    • HD Video Standards: 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94
    • SDI Compliance: SMPTE 259M, 292M and 424M.
    • Video Sampling: 4:2:2 10-bit
    • Color Precision: 4:2:2 10-bit
    • Color Space: 4:2:2 YUV
    • HDMI Input Resolutions for Computers: 720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz.
    • Colorspace Conversion: Hardware based real time.
    • Processing Delay: 6 Lines.
  • Audio Mixer:
    • 10 input x 2 channel mixer.
    • Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
    • Level and Peak metering.
    • Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.
  • Multi View Monitoring:
    • Multi View Monitoring: 1 x 10 Views.
    • Multi View Video Standard: HD
  • Media Player:
    • Media Players: 2, with non volatile flash memory.
    • Channels: Fill and key for each Media Player.
    • Media Pool Still Image Capacity: 20 with fill and key.
    • Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
  • Software:
    • Software Updates: Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
    • Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
  • Operating Systems:
    • Mac:
      • Mac OS X 10.10 Yosemite,
      • Mac OS X 10.11 El Capitan or later.
    • Windows: Windows 8.1 64-bit or Windows 10 64-bit.
  • Power Requirements:
    • Power Supply: 1 x Internal 110 - 240V AC. 4 pin 12V DC.
    • Power Usage: 40W
  • Physical:
    • Size (W x D): 16.65 x 11.89 in
    • Weight: 9 lbs 4 oz
  • Environment:
    • Operating Temperature: 41° to 104° F (5° C to 40° C)
    • Storage Temperature: -4° to 140° F (-20° to 60° C)
    • Relative Humidity: 0% to 90% non-condensing
