Community DS5-B [RESTOCK ITEM]

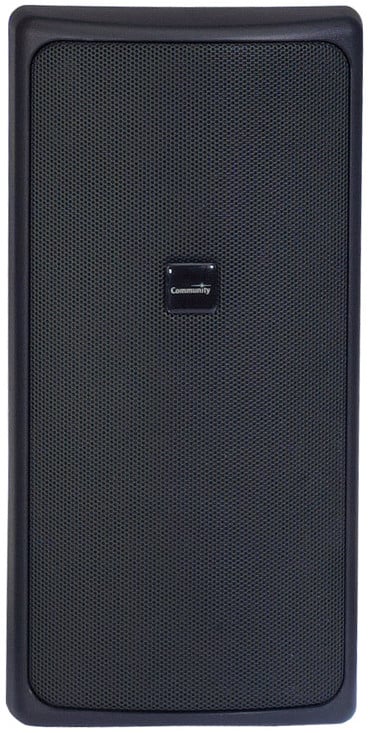

Distributed Design Series 5" Two-Way Coaxial Surface Mount Loudspeaker in Black

OUR PART #:  DS5-B-RST-01

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $120.61
List Price: $182.00
You save 34%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community DS5-B [RESTOCK ITEM]
Qty:
In Stock
Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

The Community Distributed Design Series DS5 is a full-range, compact, two-way system that is ideal for installations where space is at a premium. Easily outperforming loudspeakers of a larger size format, the DS5 provides high power handling, high sensitivity and realistic sound reproduction. With a modern architectural appearance that aesthetically merges well in most environments, combined with weather-resistant capability suitable for indirect outdoor use, the DS5 can be used in a wide variety of speech and music applications. It is equipped with a built-in autoformer, allowing the full loudspeaker output to be realized with 70V or 100V distribution lines. A convenient front-accessible power tap switch is hidden behind a rotatable logo. Installation is simple and flexible using the included Infin-A-Ball™ multi-angle wall mounting bracket which allows low profile mounting and precise positioning of the enclosure over a broad tilt-swivel range.

Community DS5 Features:

  • Same components and voicing as the Distributed Design ceiling loudspeaker family
  • High efficiency, high output, high intelligibility, low distortion
  • Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
  • Front-accessible power tap switch for selectable 8 Ohm or 70V/100V operation
  • Infin-A-Ball™ low profile mounting bracket included
  • Weather-resistant construction with treated drivers, two-layer powder coated grilles and protected wiring ingress

Community DS5 Specifications:

  • Loudspeaker Type: Two-way, full-range, coaxial surface mount loudspeaker, 8 Ohm or 70V/100V operation
  • Operating Range*: 65 Hz - 22 kHz
  • Frequency Response*: 80 Hz - 20 kHz (+/- 5.2 dB)
  • Max Input Ratings (8 Ohm):
    • 100W continuous, 250W program
    • 28 volts RMS, 63 volts momentary peak
  • Transformer Taps:
    • 70V: 60W, 30W, 15W, 7.5W and low impedance
    • 100V: 60W, 30W, 15W
  • Sensitivity (1W/1m)*:
    • 93 dB SPL (125 Hz to 12.5 kHz 1/3 octave bands)
    • 91 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output*: 113 dB SPL / 120 dB SPL (peak 8 Ohm)
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 7.5 Ohms @ 280 Hz
  • Nominal Coverage: 130º conical (+47° / -70°, 500 Hz to 6 kHz)
  • Axial Q / DI: 4.5 / 6.5, 500 Hz to 6 kHz
  • Crossover Frequency: 1.6 kHz
  • Recommended Signal Processing: 65 Hz, 24 dB/Oct high pass filter
  • Drivers:
    • LF: 1x 5" cone
    • HF: 1x 1" exit compression driver
  • Driver Protection: Self-resetting solid state circuit breaker
  • Input Connection: 4-screw Euroblock connector for two pair of 2-wire leads (uninterrupted whether the loudspeaker is connected or not) concealed in the base of the mounting bracket; and a 2-pin Euroblock connector on the loudspeaker enclosure
  • Controls: Front-accessible wattage / low impedance selector switch hidden behind the rotatable logo
  • Enclosure: ABS plastic, matte finish, paintable
  • Mounting/Rigging Provisions: Infin-A-Ball™ mounting system with hidden internal wiring
  • Grille: Dual-layer powder coated steel
  • Safety Features: Built-in safety cable attachment loop
  • Environmental: IP55 rated loudspeakers, IP56 ratedconnector cover, designed to Mil Spec 810
  • Required Accessories: Electronic high pass filter
  • Supplied Accessories: Infin-A-Ball™ mounting bracket, Hex wrench, Flathead screwdriver
  • Optional Accessories: DS-WMP Wall Mount Plate
  • Dimensions (HxWxD): 12.9" x 6.3" x 7.5" (328 x 160 x 191 mm)
  • Weight:
    • Without bracket: 10.3 lbs (4.7 kg)
    • With bracket: 10.8 lbs (4.9 kg)
  • *NOTE:  On-wall pink noise measurement at 6ft (1.8m) at 10% power; extrapolated to 1 meter and an input of 2.83 volts RMS.
