Klark Teknik KT-MADI
MADI Network Module with up to 64 Bidirectional Channels

OUR PART #:  KT-MADI

Featuring up to 64 or 32 bidirectional channels at 48 kHz or 96 kHz respectively...
Learn More
Our Price: $229.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Klark Teknik KT-MADI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

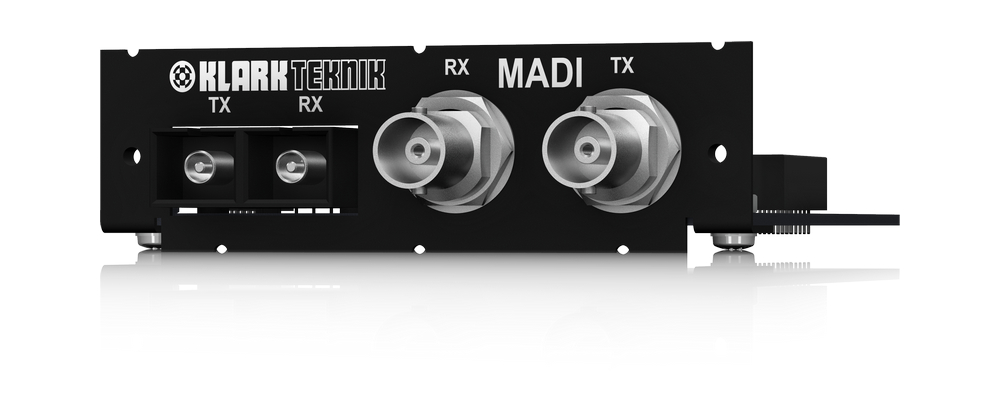

Featuring up to 64 or 32 bidirectional channels at 48 kHz or 96 kHz respectively, Klark Teknik's KT-MADI network module brings MADI compatibility to the Klark Teknik DN9650 and DN9652 Network Bridges, plus provides high-performance point-to-point links over both industry standard optical fiber as well as coaxial copper connections. It's ideally suited to interface with third-party recording and playback equipment. It features dual redundant operation with automatic failover to the coaxial copper interface in case of a failure with the optical fiber interface. It can act as MADI clock master, MADI clock slave, or can synchronize to one of the available external clock sources in either the Klark Teknik DN9650 or DN9652 host unit. Additionally, it's electrically and mechanically compatible with the industry standard Cirrus CM-1 format.

Klark Teknik KT-MADI Features:

  • MADI (AES10-compliant) network module with up to 64 bidirectional channels @ 48 kHz and 32 bidirectional channels @ 96 kHz
  • Compatible with Klark Teknik's DN9650 and DN9652 network bridges and MIDAS NEUTRON-NB expansion module
  • Operates up to 500 m over optical fiber link and 200 m over coaxial copper link
  • Optical transmission on SC-Duplex* connector
  • Copper transmission on 75 Ohm coaxial BNC connectors
  • Dual-redundant operation with failover from optical to copper connections
  • Operates as either MADI clock master, MADI clock slave, or from external clock via host unit
  • 3-Year Warranty Program*
  • Designed and engineered in the U.K.

*Notes: All third-party trademarks are the property of their respective owners. Their use neither constitutes a claim of the trademark nor affiliation of the trademark owners with MUSIC Group. Product names are mentioned solely as a reference for compatibility, effects and/or components. Warranty details can be found at music-group.com.

Klark Teknik KT-MADI Technical Specifications:

  • System:
    • Module format: Cirrus CM-1 compatible
    • Sample rates: 48 kHz, 96 kHz
    • Audio channels (48 kHz): Up to 64 bidirectional channels
    • Audio channels (96 kHz): Up to 32 bidirectional channels
    • Clock source: MADI clock master, MADI clock slave, or external word clock
  • Optical Fiber Interface Transmit, Receive:
    • Connector type: SC-Duplex
  • Coaxial copper interface Transmit, Receive:
    • Connector type: 75 Ohm BNC
  • Physical:
    • Dimensions: (HxWxD): 1.2" x 4.3" x 3.5" (31 x 110 x 89mm)
