Apogee Sound AFI-115 Subwoofer System, Black

OUR PART #: 106-0730 MFR #: 106-0730

Copied to clipboard

With a high power, long excursion, fluid treated 15" (381mm) cone driver capable of powerful... ...Read more

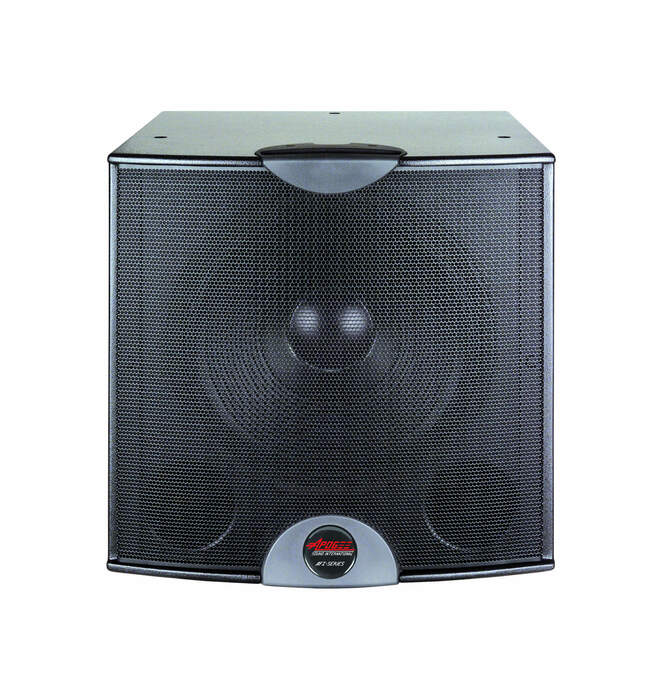

Apogee Sound AFI-115 Subwoofer System, Black Image 1
Apogee Sound AFI-115 Subwoofer System, Black Image 2
Apogee Sound AFI-115 Subwoofer System, Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

With a high power, long excursion, fluid treated 15" (381mm) cone driver capable of powerful, tight, and extremely rich bass, the Apogee Sound AFI-115 is the ideal companion to the Apogee AFI-4, AFI-3, or other smaller AFI-series full-range speaker systems. It's superb for multi-media presentations, clubs, houses of worship, discos, concert halls, and theaters.

Apogee Sound AFI-115 Features:

  • Driver Complement:
    • Low Frequency: 1 x Apogee 15" (381mm) neodymium magnet cone-type driver is treated with a waterproofing compound, providing resistance to moisture, and enabling long-term stability of cone resonance and cone mass parameters; also treated with Ferrofluid® for greater power handling capability, lower distortion, and control of short-term impedance rise
  • Input Connectors: Barrier strip, screw type #8
  • Compatible Processors: AFI Main Frame Controller Chassis (using AF I-115 Module - sold separately) or DLC24
  • Recommended Crossover: Contact your Sales Pro for full technical data on other DSP-based Processors
  • Handles: Two handles – one top, one bottom – designed as an integral part of the enclosure (no moving parts)
  • Grille: Highly durable, quality finish on perforated steel
  • Rigging Hardware: 14 rigging points; 4 each on top and bottom, 2 each on both sides and rear, all backed with 16-gauge steel; points can be type 3/8" – 16 or M10 thread
  • Finish: Textured high-strength black epoxy paint; other colors optional (available separately - contact your Sales Pro for more information)
  • Enclosure Type: Rectangular, optimally-vented bass
  • Cabinet Construction: Multi-ply hardwood with stainless steel fasteners

Apogee Sound AFI-115 Specifications:

  • Manufacturer code: 106-0730
  • Format: Front-loaded
  • Dispersion: Omni-directional
  • Frequency Response (1m on axis): 40 Hz to 125 Hz ± 3 dB
  • Max. SPL (@1m): 124 dB cont./130 dB peak
  • PTML (peak transient mechanical limit): 139 dB
  • Sensitivity (1W @ 1m): 97 dB
  • Nominal Impedance: 8 Ohms
  • Max. Power Handling: 400W cont./1600W peak
  • Dimensions (WxHxD): 21.0" x 20.9" x 22.3" (534 x 531 x 567mm)
  • Weight: 71 lbs (33 kg)
