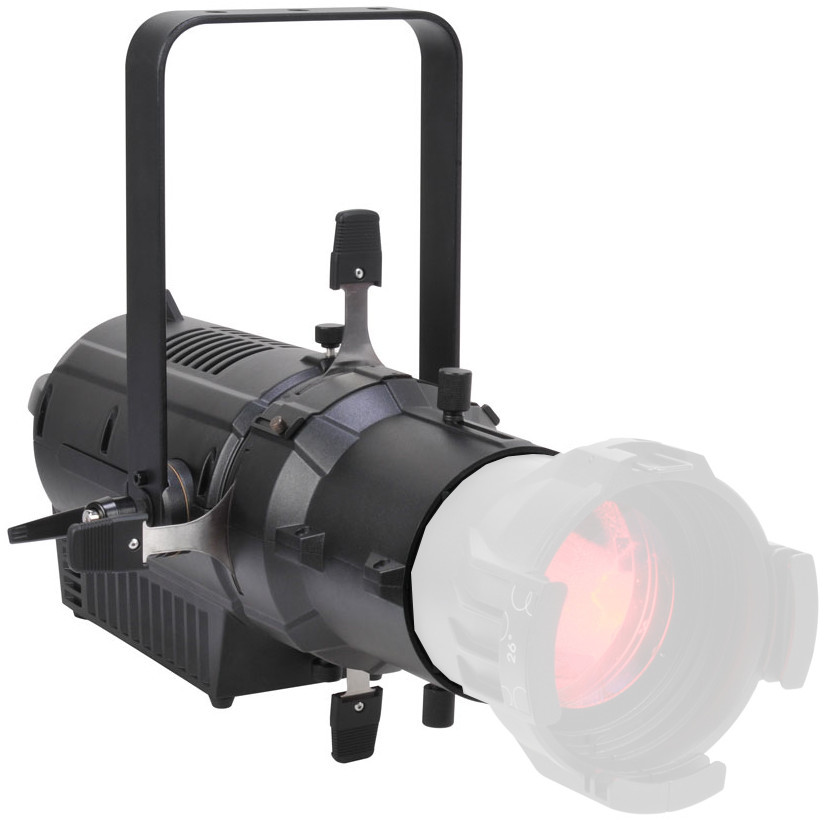

Elation Pro Lighting COLOUR 5 Profile [RESTOCK ITEM]
180W RGBAM LED Ellipsoidal Fixture

OUR PART #:

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

NOTE: Lenses for the COLOUR 5 Profile are sold separately . Please see "Recommended Accessories" above for lens options.

The Elation COLOUR 5 Profile Ellipsoidal features a 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine, >94CRI, 4,100 total lumens, with 19°, 26°, 36°, and 50° interchangeable lens options (sold separately ), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX-controlled electronic strobe, dimming, and dimming curves, flicker free operation for TV and film, 5-pin DMX and powerCON in/out connections, (4) button LCD control display panel, an integrated rigging yoke, and a multi-voltage universal auto switching power supply (100-240v).

Elation COLOUR 5 Profile Includes:

  • COLOUR 5 Profile RGBAM LED ellipsoidal
  • 1x powerCON cable
  • 1x 5-pin DMX cable
  • 1x safety cable

Elation COLOUR 5 Profile Features:

  • High CRI >94, 4,100 Total Lumens with 26° lens (sold separately)
  • Interchangeable Lens Options - 19°, 26°, 36°, 50° - all sold separately
  • 4x Blade Manual Framing Shutters
  • Variable Dimming Curve Modes

Elation COLOUR 5 Profile Specifications:

  • Source:
    • 180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
    • 50,000 Hour Average LED Life
  • Effects:
    • Electronic Strobe and Dimming
    • Variable Dimming Curve Modes
  • Gobos: Supports "B" Size Metal, HT Transparency Gobos*
    *Gobos and Holder not included.
  • Control / Connections:
    • Multiple DMX Channel Modes
    • 4-Button Control Panel
    • LED Menu Display
    • 5-pin DMX In/Out
    • powerCON In/Out
  • Dimensions (LxWxH): 24.3" (26.5" fully extended) x 12.2" x 15.7" (618 (674)  x 310 x 398 mm)
  • Weight: 21 lbs (9.5 kg)
  • Electrical / Thermal:
    • AC 100-240V - 50/60Hz
    • 225W Max Power Consumption
    • 14° to 113°F (-10° to 45°C)
  • Approvals / Ratings: CE | cETLus | IP20
  • Installation:
    • Rigging: Integrated Yoke
    • Working Position: Any (360°)
