Roland System Group VR-3EX [RESTOCK ITEM]
AV Mixer


NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Right Angled View of VR-3EX
Back Panel View of VR-3EX
Left Profile View of VR-3EX

Click a thumbnail to see more images. (5 total)

Sale Price: $1,475.67
List Price: $1,895.00
You save 22%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Roland System Group VR-3EX [RESTOCK ITEM]
In Stock

Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Roland's VR-3EX is an all-in-one AV Mixer with built-in USB port for web streaming and recording for education, presentations and special events. The VR-3EX is the next generation 4-channel SD performance mixer which features HDMI inputs/outputs, USB streaming, HDCP support, built-in touch multi-viewer, an audio mixer all in a compact portable unit. Designed to be a live production switcher the built-in audio mixer with up to four frames delay to “lip sync” your video source. Scaling on the output allows you to output up to 1080p HD Video and Audio quality.

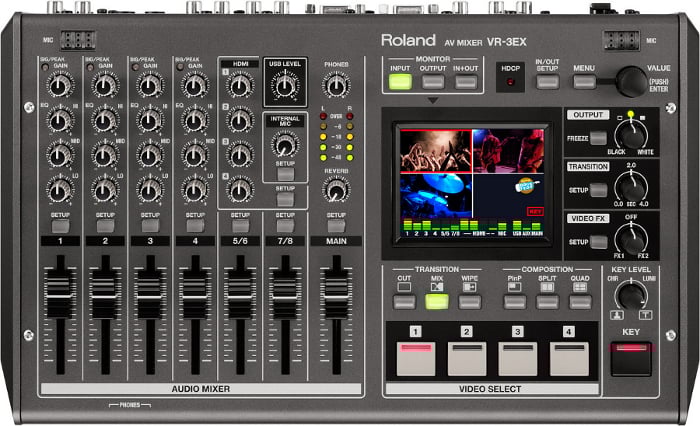

The VR-3EX features a simple interface that places the audio mixer on the left and the video mixer on the right for a design that helps ensure intuitive control of the audiovisual experience. The buttons and knobs let the operator easily accomplish all the common tasks while the touch-screen monitor displays more-advanced settings and adjustments in a visual layout that's clear and easy to understand. The VR-3EX is expressly designed for real-time operations. It makes video switching and audio mixing accessible by users with no specialized knowledge.

Roland VR-3EX Features:

  • HDMI & Composite Inputs
  • Standard Definition 16:9 Mixing Engine
  • Scaled Output up to 1080p
  • Advanced 18 Channel Audio Mixer
  • USB 2.0 for 480i Streaming
  • 2.5” Multiview Preview Monitor
  • Pnp, Key and Video Effects

Roland VR-3EX Specifications:


  • Video Processing: 4:2:2 (Y/Pb/Pr), 8 bits (Internal Processing : 480/59.94p when set to NTSC, 576/50p when set to PAL)
  • Audio Processing: Sampling Rate : 24 bits/48 kHz

Input Formats

  • HDMI Video (VIDEO IN 1–3):
      -  480/59.94p (when set toNTSC)
      -  576/50p (when set to PAL)
  • HDMI Video (VIDEO IN 4):
      -  480/59.94i, 480/59.94p,720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC)
     -  576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p (when set to PAL)
  • HDMI Audio (VIDEO IN 1–4): Linear PCM, 24 bits/48kHz, 2 ch
  • RGB/Component (VIDEO IN 4): 640 x 480/60Hz, 800 x 600/60Hz, 1024 x768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x1050/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz
    * The refresh rate is themaximum value of each resolution.
    * Conforms to VESA DMT Version 1.0Revision 11.
    * 1920 x 1200/60Hz : Reduced blanking
  • Composite Video NTSC, PAL (VIDEO IN 1–4): NTSC, PAL

Output Formats

  • HDMI and RGB/ Component Video (VIDEO OUT):
  • 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p,720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
  • 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768,1400 x 1050, 1600 x 1200, 1920 x 1200
    * The output format of HDMI and RGB/Component is always the same. When an interlaced format is selected,component signal is output from the RGB/COMPONENT connector. When anon-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector.
    *The refresh rates of RGB format is 60 Hz when set to NTSC, 75Hz when set to PAL (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 75 Hz when set to PAL.)
    * RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
    * 1920 x 1200/60Hz : Reduced blanking
  • HDMI Audio (VIDEO OUT): Linear PCM, 24 bits/48 kHz, 2ch
  • Composite Video (VIDEO OUT): NTSC, PAL
  • Preview Video (PVW OUT): 480/59.94p when set to NTSC,576/50p when set to PAL
  • Preview Audio (PVW OUT): Linear PCM, 24 bits/48 kHz,2 ch
  • USB Video: 720 x 480 when set to NTSC, 720 x 576 when set to PAL, Motion JPEG
  • USB Audio: Linear PCM, 16 bits/48 kHz, 2 ch

Input Connectors

  • Video:
      -  VIDEO IN 1–4 (HDMI : Type A 19 pins)
     -  VIDEO IN 4 (RGB/Component : HD DB-15 type)
      -  VIDEOIN 1–4 (Composite : RCA phono Type)
  • Audio:
      -  AUDIO IN 1–4 (XLR/TRS combo type, phantom power)
      -  AUDIO IN 5--6 (Stereo RCA phono type)
     -  AUDIO IN 7/8 (Stereo miniature type)
     -  MIC (Internal stereo microphones)
  • Phantom Power: DC 48V (unloaded maximum), 10 mA (maximum load)
    *Current value per channel

Output Connectors

  • Video:
      -  VIDEO OUT (HDMI: Type A 19 pins)
     -  VIDEO OUT (RGB/omponent : HD DB-15 type)
      -  VIDEO OUT(Composite : RCA phono type)
      -  PVWOUT (HDMI: Type A 19 pins)
  • Audio:
      -  AUDIO OUT L,R (Stereo RCA phono type)
     -  AUX OUT L,R (Stereo 1/4" phone type)
      -  PHONES(1/4" phone type) (headphones)
      - PHONES (Stereo miniature type) (headphones)
  • Other Connectors:
      -  MIDI : 5 pins DIN type x 2 (IN,OUT/THRU)
      -  USB : B type x 1 (for streaming and remote control)

Signal Level and Impedance

  • RGB/Component:
      -  Input/Output Signal Level : 1.0 Vp-p(luminance), 0.7 Vp-p (chroma)
      -  Input/Output Impedance : 75 ohms
  • Composite:
      -  Input/Output Signal Level : 1.0Vp-p
      - Input/Output Impedance : 75 ohms
  • XLR/TRS combo type:
     -  Input Signal Level : -60–+4 dBu (Maximum: +22 dBu)
      -  Input Impedance : 10 k ohms (GAIN 0–23dB), 5 k ohms (GAIN 24–64 dB)
  • 1/4-inch/RCA phono type:
      -  Input Signal Level : -10 dBu (Maximum: +8 dBu)
      -  Input Impedance : 15 k ohms
  • Output Signal Level : -10 dBu (Maximum: +8 dBu)
  • Output Impedance : 1 k ohms
  • Miniature type:
      -  Input Signal Level : -15 dBu (Maximum:+3 dBu)
      -  Input Impedance : 15 k ohms
  • Headphones:
      -  Output Signal Level: 25 mW + 25 mW
      - Output Impedance : 10 ohms
  • Display: Graphic Color LCD, 320 x 240 dots, touch panel
  • Video Effects:
      -  Transition : Cut, Mix (3 patterns), Wipe (250 patterns)
      -  VIDEO FX : Strobe, Negative, Colorize,Findedge, Silhouette, Monochrome, Sepia, Emboss, Posterize, Color pass, Multi (11 types)
      -  Composition : Picture in Picture, Split, Quad, Luminance Key, Chroma Key
  • Others: Output Fade, Freeze


  • Power Supply: AC Adaptor
  • Current Draw: 2.3 A
  • Accessories: AC Adaptor, Power Cord, Owner’s Manual

Size and Weight

  • Width: 13-10/16" (345 mm)
  • Depth: 8" (203 mm)
  • Height: 3-3/16" (80 mm)
  • Weight: 5 lbs. 2 oz. (2.3 kg)

NOTE: * 0 dBu = 0.775 V rms
