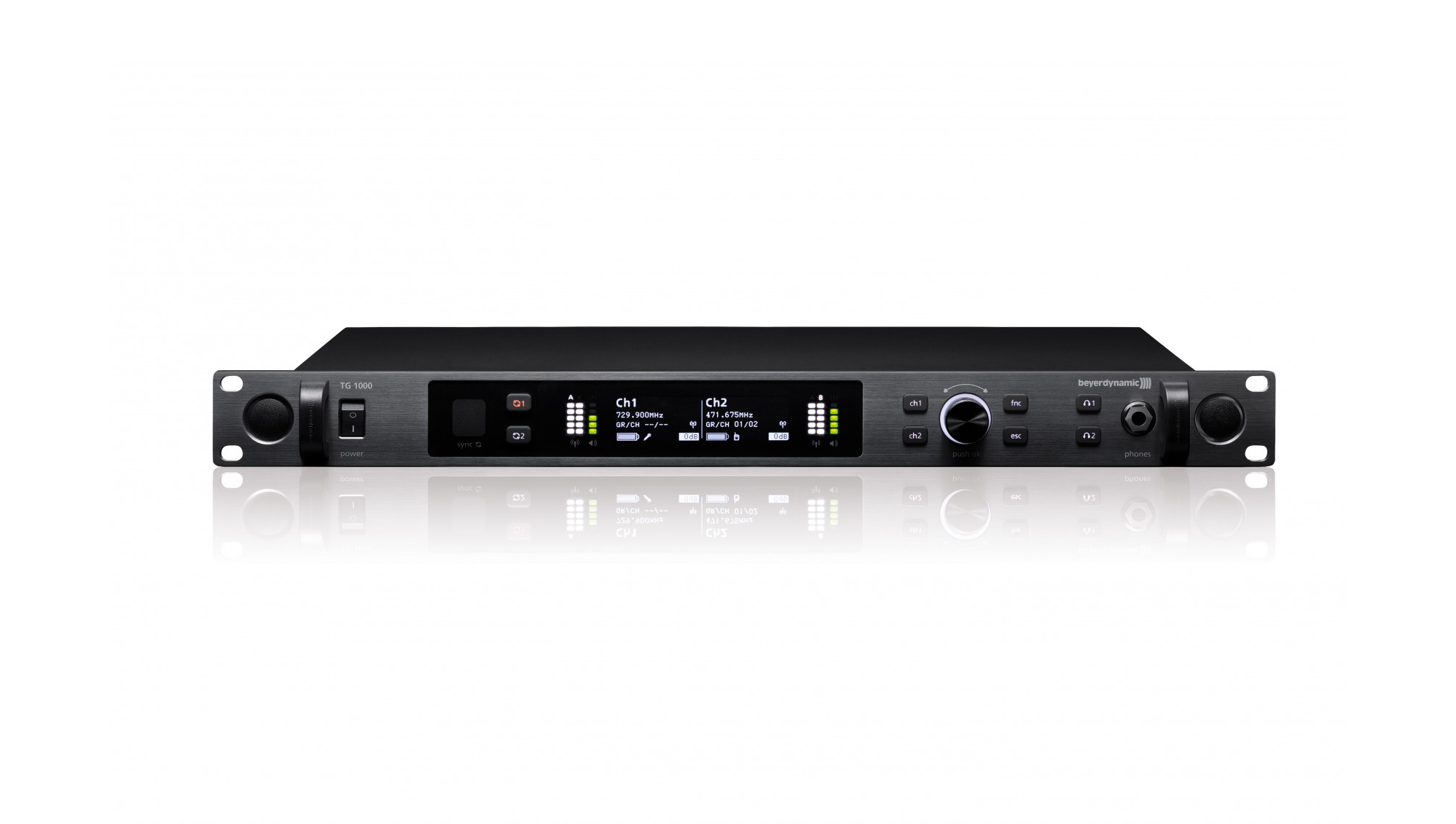

Beyerdynamic TG 1000
Dual Wireless True Diversity Receiver

OUR PART #:

Beyerdynamics' TG 1000 True Diversity Receiver is part of their TG 1000 wireless series.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

Beyerdynamics' TG 1000 True Diversity Receiver is part of their TG 1000 wireless series.

Beyerdynamics TG 1000 System
The TG 1000 series is Beyerdynamic's first 24-bit digital wireless system, covering an impressive 319 MHz of the UHF bandwidth (470–789 MHz. NOTE: bandwidth is subdivided by region - contact your Sales Pro for more information). Alone, these 2 features make the TG 1000 system hugely versatile, enabling it to be competently and reliably used in a wide variety of venues worldwide. Along with its wealth of user-friendly features designed to enhance your performance, this combination should make the TG 1000 your go-to wireless system regardless of application and/or location.

Beyerdynamic TG 1000 True Diversity Receiver Includes:

  • TG 1000 Reciever Unit
  • Power cable
  • Quick Start Guide
  • 2 x WA-ATS standard omnidirectional antennas
  • 1 x WA-CKF Connecting cable to mount the antennas on the front
  • 1 x WA-CKL Connecting cable to cascade a maximum of (12) TG 1000 receivers (additional receivers sold separately)

Beyerdynamic TG 1000 True Diversity Receiver Features:

  • Digital 2-channel UHF true diversity receiver
  • 319 MHz total bandwidth compatibility (subdivided per region - contact your Sales Pro for more information)
  • 2.1 ms total latency
  • BNC In/Outputs
  • XLR & jack outputs
  • Suitable for 19" rack mounting, 1 RU
  • "Triple-Play" Codec for low latency (1.2 ms), high error resilience and finest audio quality
  • Looping through the antenna signals of up to 6 receivers (additional receivers sold separately)
  • Status display (battery, transmitter type, microphone capsule)
  • Browser control and monitoring via integrated web server
  • Encrypted data transmission

Beyerdynamic TG 1000 True Diversity Receiver Specifications:

  • Operating principle: Digital UHF true diversity receiver
  • Frequency response: 20 – 20,000 Hz
  • Dynamic range: 116 dB (128 dB with -12 dB level decrease in the beltpack transmitter - sold separately)
  • Output level:
    • Max. + 18 dBu balanced (XLR and jack output)
    • 0 to 42 dB digital gain
    • + 12dB analogue boost
  • Output impedance:
    • Jack output: 120 Ohms
  • Antenna input: 8 VDC, 150 mA
  • Headphone output: Switchable with volume control
  • Latency: 2.1 ms (overall latency from transmitter to receiver)
  • Encryption & Audio CODED: Switchable, proprietary encryption scheme based upon a 16-bit pattern; "Triple-Play" CODEC with low latency and high error resilience
  • Display: OLED
  • Mains connection: 100 V – 240 V AC
  • Power consumption: 13.8 W (typ.)
  • Weight: approx. 7 lbs (3.2 kg)
  • Dimensions: approx. 16.5" x 9.5" x 1.7" (420 x 242 x 43mm)
  • Antenna connection: 2 x BNC input/2 x BNC output
