RCF NX L44-A
Active 2-Way 1400W (Peak) Column Array with (3) 10" Woofers

OUR PART #:  NX-L44A

With the NX L44-A, RCF has delivered a unique and powerful 2-way line source...
Learn More
Our Price: $3,399.00
List Price: $4,799.00
You save 29%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

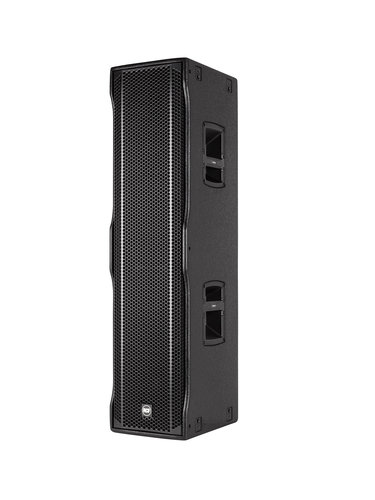

RCF NX L44-A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

With the NX L44-A, RCF has delivered a unique and powerful 2-way line source, with the sound provided by (3) 10" neodymium woofers and a 1.4" driver with 3" voice coil on an asymmetrical waveguide. All together, they are perfectly tuned to deliver remarkably uniform sonic coverage as well as an extended frequency range. An on-board DSP gives precision control and driven by a two-channel digital amp, the NX L44-A provides very natural-sounding response and high SPL for professional live sound reinforcement. The horn's design is asymmetrical, so it projects sound energy with great precision, minimizing undesired reflections. The enclosure always remains vertical - it does not have to be tilted or aimed in any way that would adversely affect its stability.

High Performance
RCF's powered line arrays' advanced technology has been delighting audiences and users for many years. Combined with state-of-the-art DSP-driven controllers and digital power amps, these systems raise the bar for reliability and performance.

Maximum Efficiency
A true active, high-power, ready-to-use 2-way array system, the NX L44-A comes equipped with a high-efficiency digital amplifier that offers superior SPL while reducing energy requirements. Its integrated processing and the cabling reduction will make for faster and easier set-up, plus thanks to its compact size, the space requirement is reduced to the minimum.

Applications:

  • Portable PA
  • Live sound
  • Performance venues
  • Houses of worship
  • Rental
  • Live Clubs

RCF NX L44-A Features:

  • Digital bi-amped amplifier with 1400 Watt peak power
  • 90° x 30° directivity (+5°, -25°)
  • 3 x 10" Neo woofer
  • 1.4" compression neo driver, 3.0" voice coil with a waveguide
  • DSP Processing with optimized phase response
  • Scalable
  • Easy to fly and install with built-in rigging points

RCF NX L44-A Specifications:

Acoustical

  • Frequency Response -3 dB: 45 Hz ÷ 20000 Hz
  • Max SPL: 134 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 30°
  • Compression Driver: 1.4" neo, 3.0" v.c.
  • Woofer: 3 x 10" neo, 2.5" v.c.

Input/Output Section

  • Input connectors: Jack- XLR male
  • Output connectors: XLR female
  • Input sensitivity: -2 dBu / + 4 dBu

Processor Section

    Crossover frequencies: 800 Hz
    Protections: thermal, rms
    Limiter: soft limiter
    Controls: Volume, EQ Shape, Mic/ Line

Amplifier

  • Total power (Peak): 1400 W
    • High frequencies: 400 W
    • Low frequencies: 1000 W
  • Total power (RMS): 700 W
    • High frequencies: 200 W
    • Low frequencies: 500 W
  • Cooling: convection
  • Connections: PowerCON® in-out

Cabinet

  • Cabinet Material: baltic birch plywood
  • Hardware: 4 x M8, 4 x quick lock, 2 x pole mount
  • Handles: 2 side
  • Pole Mount/Cap: yes
  • Color: black

Physical

  • Dimensions (HxWxD): 47.2" x 11.93" x 15.83" (1198 x 303 x 402mm)
  • Net Weight: 74.9 lbs (34.5 kg)

*Note: All information subject to change without notice.
