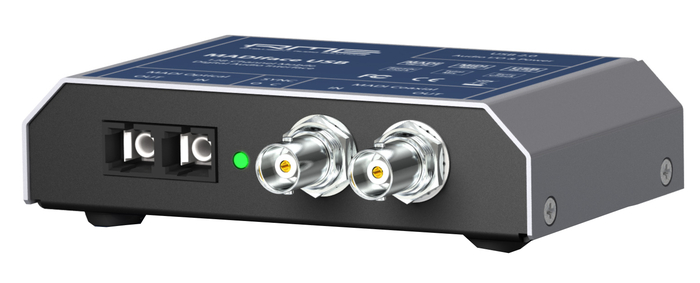

RME MADIface USB
128-Channel MADI USB Interface

OUR PART #:  MADIFACE-USB

The compact RME MADIface USB provides MADI I/O over USB 2.0 while supporting the format's full 64 channels for recording and playback, under Mac and Windows.
Learn More
Our Price: $999.00
List Price: $1,249.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RME MADIface USB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The compact RME MADIface USB provides MADI I/O over USB 2.0 while supporting the format's full 64 channels for recording and playback, under Mac and Windows. Both inputs can be used for full redundancy operation. Optionally both MADI I/Os can be operated simultaneously for full 128 channel input and output access, mixed and routed by TotalMix. Even without computer the small box delivers extraordinary bi-directional format converter and active repeater functionality.

Its sturdy and bus-powered design makes it as easy to use as reliable in operation. MADIface USB is both MADI portability at its best as also a perfect desktop solution to connect MADI equipment to any Mac and PC. A real gem in flexibility, usefullness and trouble-free operation - as you expect it from RME.

RME MADIface USB Features:

  • The option Disable TotalMix completely disables TotalMix, the unit's flexible internal mixer and routing matrix. All input and output data is going straight to record/coming from playback, with no mixing or routing involved. In this mode the outputs are mirrored, carrying the same signal.
  • In 64 Channel Mix mode TotalMix shows 64 input, playback and output channels. All settings in TotalMix use the data from one MADI input port, and send identical data to both MADI output ports. The currently active MADI input port can be configured in the Settings dialog.
  • The option AutoSelect activates an automatic input selection. Using both inputs at the same time, AutoSelect puts the device into Seamless Redundancy mode. The MADIface USB will switch to the other input in real-time if the current one fails.
  • In 128 Channel Mix mode record and playback is still limited to 64 channels, with the current input selected in the Settings dialog. But the other input is also available through TotalMix, and the output signal is not mirrored, but separated, with TotalMix having 128 output channels. Applications like independent mix output, monitoring and serial pass-through of the second source are just a few clicks away.
  • SteadyClock as well as RME's well known MADI compatibility ensurehassle-free operation with other devices. MIDI over MADI technology may beused to remote-control other MADI devices. DIGICheck, an included completeaudio analyzing suite, supports the user under Mac OS X and Windows.

RME MADIface USB Specifications:

  • Inputs/Outputs:2 x MADI I/O, optical and coaxial(BNC)
  • MIDI input and output: via virtual MIDI port
  • Clock modes: master (internal) and slave (MADI input)
  • Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz,variable (Sync/DDS)
  • Jitter: < 1 ns, internal and all inputs
  • Jitter sensitivity: PLL operates even at 100 nsJitter
  • Seamless Redundancy operation with both inputs
  • TotalMix: 2048 channel mixer with 48-bit internalresolution
  • TotalMix: latency-free submixes and perfect ASIODirect Monitoring
  • Interface: USB 2.0, bus-powered
  • Comes with DIGICheck, RME's ultimate measurement,analysis and test tool
  • Drivers:
    • Windows Vista/7/8 (Multi-Client operation of ASIO 2.3 and WDM)
    • Mac OS X (10.6 or up, Core Audio, Core MIDI)
