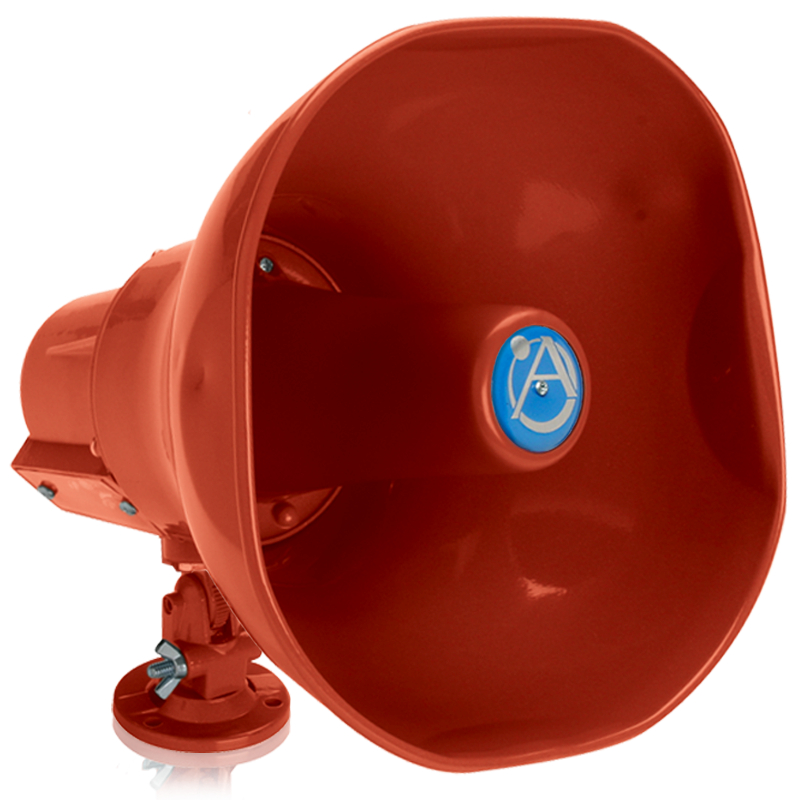

Atlas Sound AP-15TUCR
Emergency Signaling Horn

OUR PART #:  AP-15TUCR

Theh Atlas AP-15TUCR is a double re-entrant loudspeakers which delivers 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
Learn More
Our Price: $120.99
List Price: $150.99
You save 20%!
Write the first review.
Atlas Sound AP-15TUCR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Theh Atlas AP-15TUCR is a double re-entrant loudspeakers which delivers 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency. The AP-15 Series operates within a nominal frequency response range of 400Hz - 14kHz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.

The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars. A built-in, 5 mfd capacitor is provided for line supervision.

All models meet or exceed the UL Listed standards for audible signal appliances, standard 1480—Loudspeakers for Fire Protective Signaling Systems and California State Fire Marshal (Title 19). AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

Atlas AP-15TUCR Features:

  • 15-Watt High Efficiency Compression Driver
  • 5 mfd Capacitor for Line Supervision
  • Built-In Vari-Tap® Transformer for Easy Impedance Selection
  • Omni-Purpose Surface Mounting Bracket For Precise Positioning
  • Recommended for High Intelligibility Paging, Intercommunication, and Signaling
  • Vandal-Resistant, Weatherproof Construction
  • UL Certified, Safety Listed to UL1480

Atlas AP-15TUCR Specifications:

  • Frequency Response: 400Hz - 14kHz
  • Sensitivity: 106dB
  • Impedance: 1, 2, 3.8, 7.5, 15W @ 70.7V
  • Safety Listed: UL 1480
  • Dispersion: 70°
  • Operating Temperature Range: -40 to 70C
  • Height: 8 3/4" (22.23 cm)
  • Width: 7 7/8" (20.00 cm)
  • Depth: 90 5/16" (23.66 cm)
  • Shipping Weight: 5.00 lbs (2.27 kgs)
