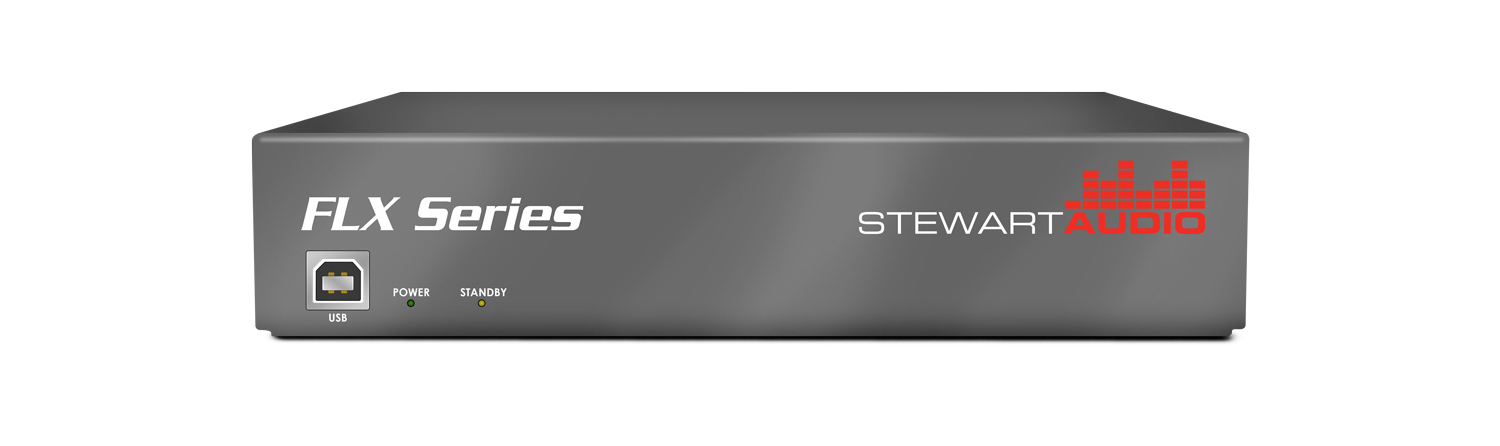

Stewart Audio FLX80-4-LZ-D
Rack-Mountable 80W x 4-Channel DSP-Enabled Analog Amplifier @ 4 Ohms with Dante

OUR PART #:  FLX80-4-LZ-D

Part of Stewart Audio's FLX (pronounced FLEX) Series of amplifiers, the most versatile 1/2-rack amplifier series Stewart has ever produced...
Learn More
Our Price: $1,459.00
List Price: $1,729.00
You save 16%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Stewart Audio FLX80-4-LZ-D
Qty:
In Stock

Similar Products

Part of Stewart Audio's FLX (pronounced FLEX) Series of amplifiers, the most versatile 1/2-rack amplifier series Stewart has ever produced, the FLX80-4-LZ-D delivers 80 watts from each of its (4) four output channels into a 4 Ohm load. At its heart you'll find a potent internal full-function DSP that's made to solve a multitude of your audio problems, all within just one enclosure. The onboard DSP includes a full cross-point mixer, EQ, filters, limiters, and much more. A USB port makes for easy, fast, and repeatable programming when used in large installations. The RVC and RS232 control allow volume control from a wide variety of devices. Additionally, the Dante™ network functionality provides 4 network input audio channels and 4 network output audio channels. You won't find a more versatile combination of power output and processing in a comparable package on the market today.

Applications:

  • Hospitality Installations
  • Classrooms
  • Conference Rooms
  • Houses of Worship
  • Room combining
  • Dante ™ Network Audio

Stewart Audio FLX80-4-LZ-D Features:

  • Onboard DSP for signal routing and filtering
  • USB and RS232 available for configuration
  • 1/2-rack package
  • (4) analog inputs (4 line/mic; 2 w/ phantom power)
  • 4x4 Break in/Break out Dante channels

Made in the USA

Stewart Audio FLX80-4-LZ-D Specifications:

  • Output Power: 80W x 4 @ 4 Ohms
  • Frequency Response (+0, -3dB): 20 Hz—20 kHz
  • THD+N: <0.05% @ 6dB below clipping
  • Signal-to-Noise Ratio: >95dB
  • Input Sensitivity: 1V (0 dBV)
  • Input impedance (Balanced/Unbalanced/Phantom): 7.2 kOhms/3.6 kOhms/2.4 kOhms
  • Current Draw - Standby, 1/8 Power: 12W, 65W
  • Amplifier Class: D
  • Remote Volume: 0-10V
  • Channel to Channel Isolation: >60dB
  • Input Connectors: 3.5mm Euroblock; 24V Phantom Power on 2 channels
  • Output Connectors: 5mm Euroblock
  • LED Indicators: Power
  • Controls: USB & RS-232
  • Network Audio Port: Dante
  • Power Supply Input: 100-240 VAC 50/60Hz (PFC Universal Input)
  • Construction: Aluminum Chassis
  • Mounting: Rack-mountable, single & dual
  • Cooling: Convection–Cooling (No Fans)
  • Dimensions (HxWxD): 1.7" x 8.3" x 11.25" (44 x 212 x 272mm)
  • Weight: (approx.) 6.2 lbs (2.8kg) (max - varies by model)
  • Warranty: 3 years
