Product Overview
The Teradek Bolt 2000 is a zero delay wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2000ft over the unlicensed 5GHz band. Bolt 2000 is multicast capable up to 4 receivers and comes in 3G-SDI, HDMI, and dual input/output varieties. All Bolt systems include the GRAB engine, which allows users to output over USB 3.0 directly into a DIT cart or laptop.

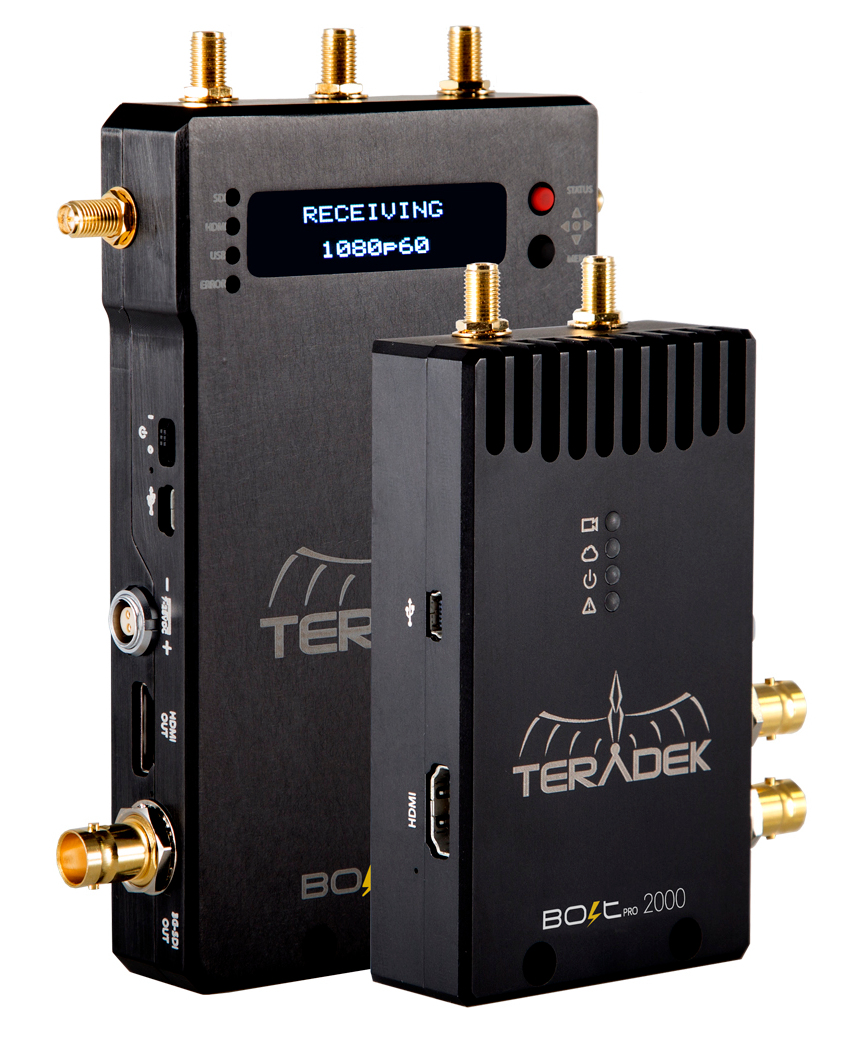

Teradek Bolt 2000 Includes:
- Bolt Pro 2000 3G-SDI/HDMI Transmitter
- Bolt Pro 2000 3G-SDI/HDMI Receiver
- Case
Teradek Bolt 2000 Specifications:
- Part Number: 10-0990
- 3G-SDI/HDMI TX:
- Video:
- Video Inputs:
- 1 x SD/HD/3G-SDI (75 Ohm BNC)
- 1 x Type A receptacle HDMI
- Video Outputs: 1 x HD/SD/3G-SDI Loop-out (75 Ohm BNC)
- SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers.
- Color Sampling:
- SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
- HDMI: RGB 4:4:4, 8-bit
- Delay Tx To Rx:
- Supported Resolutions:
- 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080 psf23.98/24/25/29.97/30
- 1080i 50/59.94/60
- 720p 50/59.94/60
- 480p 59.94/576p50 (via HDMI ports only)
- 480i (NTSC)/576i(PAL)
- Video Processing:
- Video Compression: visually lossless
- Color Correction:
- CDL/1024 1D LUT (supports 10-bit color)
- 33x33x33 3D LUT (supports 10-bit color)
- Audio Processing:
- Audio Compression: 48kHz 24-bit PCM
- Physical:
- Dimensions: 4.3” x 2.6” x 1.0” (109.2 x 66.0 x 26.8 mm)
- Weight: 9.5oz (270g)
- Construction:
- Milled Aluminum (Chassis) and regulation-compliant PCB
- Plastic Cap
- Interfaces:
- Switches: On/Off and Reset Switch
- Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
- USB Interface Functionality: Upgrade via Mini-USB
- Network:
- Wireless:
- Non-DFS Frequencies:
- US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
- EU & JP: 5.19 ~ 5.23 GHz
- DFS Frequencies:
- US: 5.27 ~ 5.55 GHz and 5.67 GHz
- EU & JP: 5.27 ~ 5.67 GHz
- RF Channel Selection:
- Auto
- Configurable Channel selection
- Encryption: AES-128
- RF Power: 22dbm EIRP (with two RP-SMA 5dbi TX antennas)
- Range: Up to 2000ft line of sight
- Unicast Multicast: Unicast / Multicast
- Noise Rejection: Can coexist with WiFi and 5GHz cordless phones
- Power:
- Power Input: 2-Pin Connector 7-28 VDC
- Battery: None
- Nominal Power Consumption: 7.7 Watts (Measured at 1080p 60)
- Operating Temperature: 32 ~ 122° F (0 ~ 50° C)
- 3G-SDI/HDMI RX:
- Video:
- Video Outputs:
- 1 x SD/HD/3G-SDI (75 Ohm BNC)
- 1 x HDMI Type-A receptacle
- 1 x USB 3.0 micro B receptacle
- SDI Ancillary Data Support: Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers.
- Color Sampling:
- SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled)
- HDMI: RGB 4:4:4, 8-bit
- Delay Tx To Rx:
- Supported Resolutions:
- 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080psf 23.98/24/25/29.97/30
- 1080i 50/59.94/60
- 720p 50/59.94/60
- 480p 59.94/576p50 (via HDMI ports only)
- 480i (NTSC)/576i (PAL)
- Video Processing:
- Video Compression: visually lossless
- Test Pattern Generator Support: Custom output formatted test pattern over HDMI and SDI.
- Color Correction:
- CDL/1024 1D LUT (supports 10-bit color)
- 33x33x33 3D LUT (supports 10-bit color)
- Audio Processing:
- Audio Compression: 48kHz 24-bit PCM
- Physical:
- Dimensions: 5.8” x 3.5” x 1.0” (147.3 x 88.5 x 25 mm)
- Weight: 13.8oz (390g)
- Construction:
- Milled Aluminum (Chassis) andregulation-compliant PCB
- Plastic Cap
- Interfaces:
- Configuration Interfaces: OLED Screen with Menu Joystick Navigation
- Switches: On/Off and Reset Switch
- Desktop App: Feature-rich Bolt Manager Application for OSX & Windows
- USB Interface Functionality: Upgrade via Mini-USB
- Network:
- Wireless:
- Non-DFS Frequencies:
- US: 5.19 ~ 5.23 GHz and 5.755 ~ 5.795 GHz
- EU & JP: 5.19 ~ 5.23 GHz
- DFS Frequencies:
- US: 5.27 ~ 5.55 GHz and 5.67 GHz
- EU & JP: 5.27 ~ 5.67 GHz
- RF Channel Selection:
- Auto
- Configurable Channel selection
- Encryption: AES-128
- RF Power: 17dbm EIRP (with one 2dbi TX antenna)
- Range: Up to 2000ft line of sight
- Unicast Multicast: Unicast / Multicast
- Noise Rejection: Can coexist with WiFi and 5GHz cordless phones
- Power:
- Power Input: 2-Pin Connector 7-28 VDC
- Nominal Power Consumption: 8.0 Watts (Measured at 1080p 60)
- Operating Temperature: 32 ~ 122° F (0 ~ 50° C)
