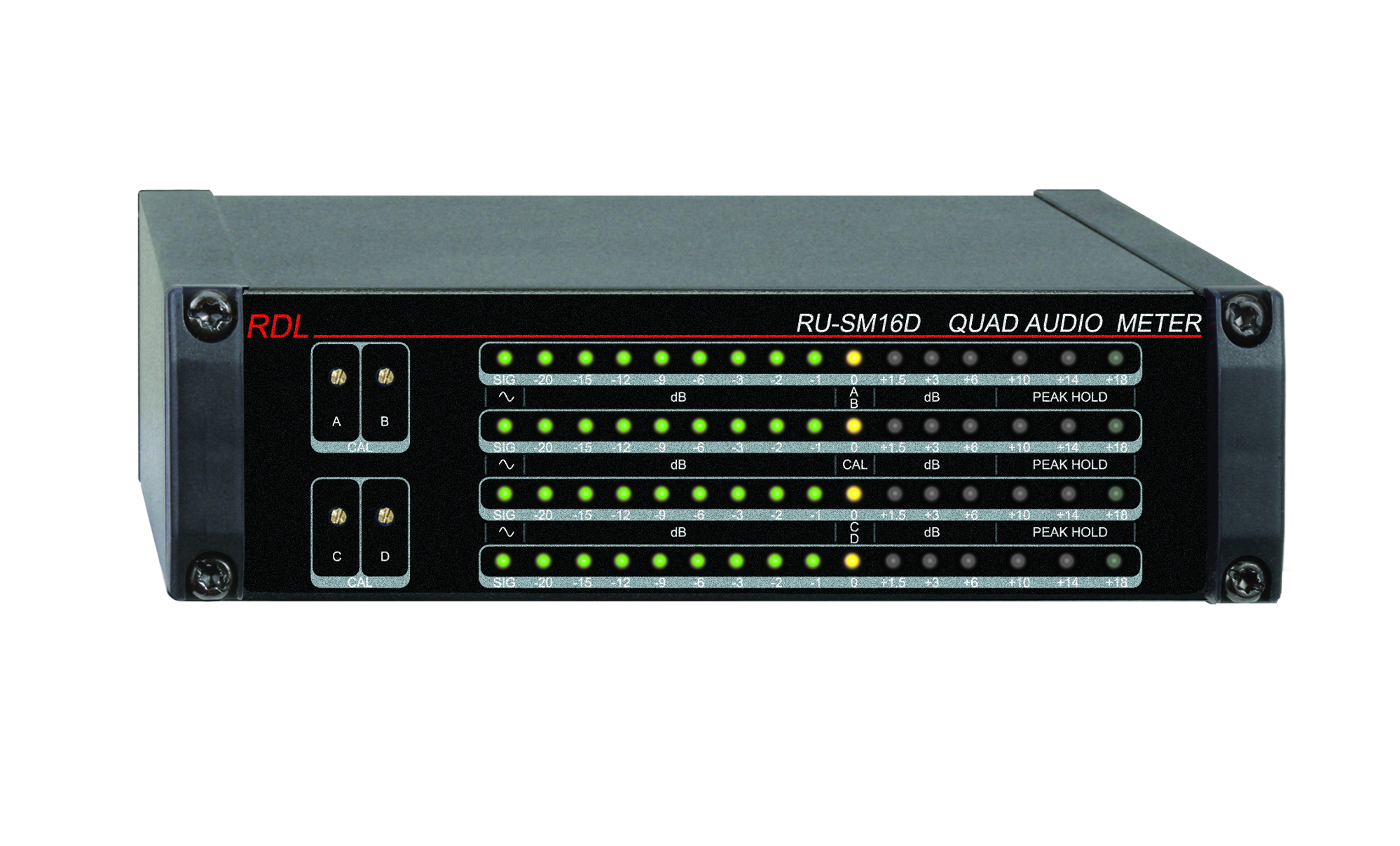

Radio Design Labs RU-SM16D
4 Channel Audio Meter - Average/Peak/Hold

OUR PART #:  RU-SM16D

RDL's RU-SM16D is the ideal choice in most situations where multiple audio level metering is to be designed into a new system or added to existing equipment.
Learn More
Our Price: $553.87
List Price: $615.35
You save 10%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs RU-SM16D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RDL's RU-SM16D is the ideal choice in most situations where multiple audio level metering is to be designed into a new system or added to existing equipment. It has 4 separate inputs, and each may be individually calibrated for unbalanced consumer, balanced professional, 8 Ohm speaker line, or constant voltage speaker lines (25 V, 70 V, or 100 V) with all connections made using detachable terminal blocks. A rear-panel switch selects variable or fixed calibration for 25V, 70V, 100V, and +4 dBu sources. In the "variable" position, front-panel multi-turn trimmers adjust the calibrated meter levels. Rear-panel switches let the installer set each meter individually for either peak or average audio level display. In monaural installations, it may be advantageous to feed the mono source to 2 meters, setting one meter for peak and the other meters for average. In either mode, the upper 3 LEDs (+10, +14, +18) remain in the PEAK HOLD mode. In stereo applications, each left and right channel, can display both peak and average values. Each of theRU-SM16D's 4 meters may be operated separately to monitor 4 different sources. The RU-SM16D uses bright LEDs for good visibility, and each input has a label area for easy identification of the metered source or function.

Recommended Power Supply (sold separately): PS-24AS

RDL RU-SM16D Features:

  • Precision Audio Level Metering
  • Digital 16 LED String Display Indication
  • (4) Mono Meters or Dual Stereo Metering
  • Line-Level, Speaker-Level or 25/70/100 V Audio Input
  • Selectable Fixed or Variable Calibration
  • Individual Channel Calibration Controls
  • Selectable Peak or Average Metering
  • Peak-Hold Display for +10, +14, +18 dB

RDL RU-SM16D Specifications:

  • Inputs (4): Line level or Amplified speaker level
  • Input Impedance: > 40 kO balanced or unbalanced
  • 0 dB Calibration: Fixed or Variable (switch-selectable)
  • Fixed Input Level:
    • +4 dBu (+4 switch settings, for 0 dB reading)
    • 25 V* (25 V switch settings, for 0 dB reading)
    • 70 V* (70 V switch settings, for 0 dB reading)
    • 100 V* (100 V switch settings, for 0 dB reading)
      *Constant-voltage or low-impedance (4 Ohms, 8 Ohms) amplifier output
  • Variable Input Level Range:
    • -24 dBu to +12 dBu (+4 switch settings, for 0 dB reading)
    • 2 V to 90 V* (25 V switch settings, for 0 dB reading)
    • 4 V to 90 V* (70 V switch settings, for 0 dB reading)
    • 5 V to 100 V* (100 V switch settings, for 0 dB reading)
      *Constant-voltage or low-impedance (4 Ohms, 8 Ohms) amplifier output
  • Metering Freq. Response: 20 Hz to 20 kHz
  • Indicators: 16 LEDs per channel: SIG, -20, -15, -12, -9, -6, -3, -2, -1, 0, +1.5, +3, +6, +10, +14, +18 (+10, +14, +18 are PEAK HOLD indicators only)
  • Metering Response:
    Each channel individually selectable PEAK or AVG (switch-selectable)
    • Rise Time (10% to 90%):
      • Peak Mode: 50 us
      • Average Mode: 130 ms
    • Rise Time (0% to 100%):
      • Peak Mode: 60 us
      • Average Mode: 300 ms (VU Characteristic)
    • Fall Time (90% to 10%):
      • Peak Mode: 65 us
      • Average Mode: 185 ms (VU Characteristic)
    • Fall Time (100% to 0%):
      • Peak Mode: 100 us
      • Average Mode: 300 ms (VU Characteristic)
    • Ambient Operating Environment: 0° C to 55° C
    • Power Requirement: GROUND-REFERENCED, 24 Vdc @ 450 mA (Power supply #PS-24AS sold separately)
    • Package Dimensions: 6" x 6" x 2.625"
    • Shipping Weight: 1.325 lbs
    • WEEE weight: 1.09 lbs
    • Product Dimensions Illustration:

RU-SM16D
