Antelope Audio ORION-STUDIO-2017 Orion Studio 2017 Thunderbolt and USB Audio Interface, 2017 Model

OUR PART #: ORION-STUDIO-2017 MFR #: ORION-STUDIO-2017

Copied to clipboard

The Antelope Audio Orion Studio Rev. 2017 is a Thunderbolt ™ and USB studio interface. ...Read more

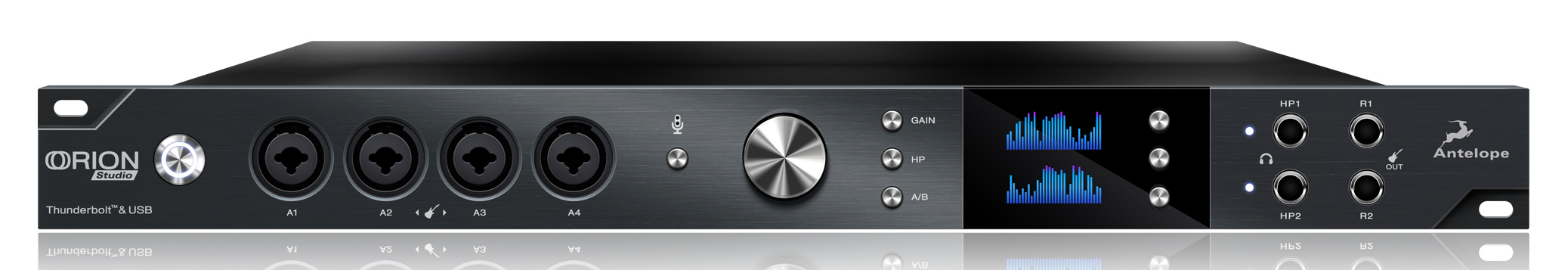

Antelope Audio ORION-STUDIO-2017 Orion Studio 2017 Thunderbolt And USB Audio Interface, 2017 Model Image 1
Antelope Audio ORION-STUDIO-2017 Orion Studio 2017 Thunderbolt And USB Audio Interface, 2017 Model Image 2
Antelope Audio ORION-STUDIO-2017 Orion Studio 2017 Thunderbolt And USB Audio Interface, 2017 Model Image 3
0EiW3MkZ-P8
1 Video
Antelope Audio ORION-STUDIO-2017 Orion Studio 2017 Thunderbolt And USB Audio Interface, 2017 Model
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Antelope Audio Orion Studio Rev. 2017 is a Thunderbolt ™ and USB studio interface. Through a unique sampling technique for vintage gear modeling we have provided Orion Studio with the finest selection of hardware-quality audio effects, among which legendary EQ and compressor hardware plus our very own and extremely versatile AuraVerb reverb.

With 12 Class-A Mic Pres make it’s one and only piece of gear you’ll need to record a full band and do it like a pro. For 2017 Orion Studio got brand new AD converters, raising its dynamic range to an industry best 124 dB and features superior low latency performance. Now coming in a gorgeous carbon grey faceplate, Orion Studio has a ton of new features inside its powerful Control panel and FPGA engine.

Orion Studio features the full array of real-time FPGA powered vintage FX. This interface also includes Antelope’s traditionally stunning AD/DA conversion, powered by our very own, world-renowned 64-bit Acoustically Focused Clocking (AFC) technology for jitter management.

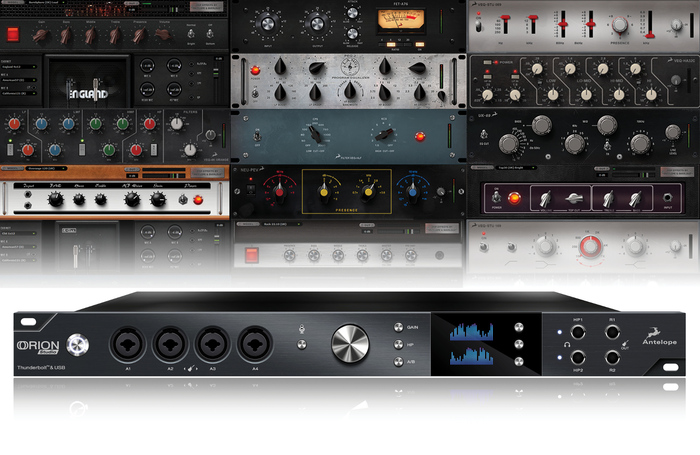

Orion Studio 2017 includes the full Antelope Audio arsenal of hardware-based FPGA FX for a variety of authentic zero latency Vintage EQs, Compressors and Guitar Amp & Cabinet Models. Use them for real time tracking or mixing, then easily save preset setups to be recalled at your convenience.

Antelope Orion Studio 2017 Includes:

  • Orion Studio – Thunderbolt™ and USB AD/DA Interface with 12 mic pres
  • Owner’s Manual
  • Warranty Card
  • (1) DC Power supply
  • (1) USB cable
  • Included Antelope Vintage FX Models:
    • EQUALIZER LEGENDS: VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE1023, BAE 1084, NEU-W492, NEU-W495, VEQ-4K Black, VEQ-4k Brown, VEQ-4K Pink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ – 1A, VMEQ-5, LANG PEQ2, VEQ-55A,UK-69, NEU-PEV, INTEGRATED EQ
    • VINTAGE COMPRESSORS: X160, Tube176, X903, Gyratec X, Grove Hill Liverpool, ANTELOPE FEEDFORWARD COMPRESSOR, FET-A76
    • AURAVERB™: New Reverb Leveraging Unique Algorithms and Proprietary FPGA Chip for “Smooth and Clear” Sound
    • THE GUITAR CLASSICS:
    • Cabinets: Darkface 65 2x12, Top30 2x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper50 1x10, Clst 1x12, England4x12, Modern 4x12, Bluelux 1x12.
    • Guitar Amps: Darkface 65 US, Top32 UK, Modern US, Plexi 59 UK, Rock 22.10 UK, Rock 75 UK, Marcus II US, Tweed, Deluxe US, Overange 120 UK, BurnSphere DE.

Antelope Orion Studio 2017 Features:

  • 12 CLASS-A MIC PRES: Hi-Z, mic & line compatible preamps with phantom power
  • 64-BIT ACOUSTICALLY FOCUSED CLOCKING: AD/DA enhanced by our world-renowned jitter management algorithm
  • VINTAGE GUITAR FX: Hardware-based, FPGA powered effects for guitar amp modeling
  • STUNNING AD/DA: 24-bit, 192 kHz audio and Antelope’s signature flawless conversion
  • THUNDERBOLT™ and USB: 32 channels via Thunderbolt™ and 24 on USB for zero-latency audio streaming
  • ADVANCED CONTROL: Control Orion Studio via user-friendly desktop and mobile apps

Antelope Orion Studio 2017 Specifications:

  • Analog
    • Analog Inputs
      • 4 x Mic / Line Instrument on XLR combos on the front
      • 8 x Mic / Line on XLR combos on the rear
      • Analog Inserts: 2 x Inserts on TRS (inputs 1,2)
    • Analog Outputs
      • 16 x Lines on 2 x DB25 (16 channels Line Out)
      • 2 x Stereo Monitor out on TRS (4 channels, only 1 active pair at a time)
      • 2 x Stereo Headphone outs on TRS (4 channels)
      • 2 x ReAmp outs on TRS (2 channels)
    • D/A Monitor Converter
      • Dynamic Range: 129 dB
      • THD + N: -108 dB
    • A/D Converter
      • Dynamic Range: 124 dB
      • THD + N: -112 dB
    • D/A Converter
      • Dynamic Range: 120 dB
      • THD + N: -107dB
    • Mic Preamp
    • Gain: 0,10 – 65 dB
    • THD + N: -108 dB
  • Digital
    • Digital Inputs
      • 2 x ADAT (up to 16 depending on the sample rate)
      • 1 x S/PDIF
    • Digital Outputs
      • 2 x ADAT
      • 1 x S/PDIF
    • USB I/O
      • USB 2.0 Hi-Speed
      • Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
    • Thunderbolt™ I/O: 1 x Thunderbolt, 32 channels I/O
  • Other
    • Operating Temperature: 0-50°C, 32-122°F
    • Dimensions (Approx)
      • Width: 483 mm / 19”
      • Height: 44 mm / 1.7”
      • Depth: 220 mm /8.6”
    • Electrical specs
      • DC Universal input: 18V
      • Power Consumption: 25 Watts Max
    • Weight: 3.1 kg/ 6.83 lbs ( approx )
