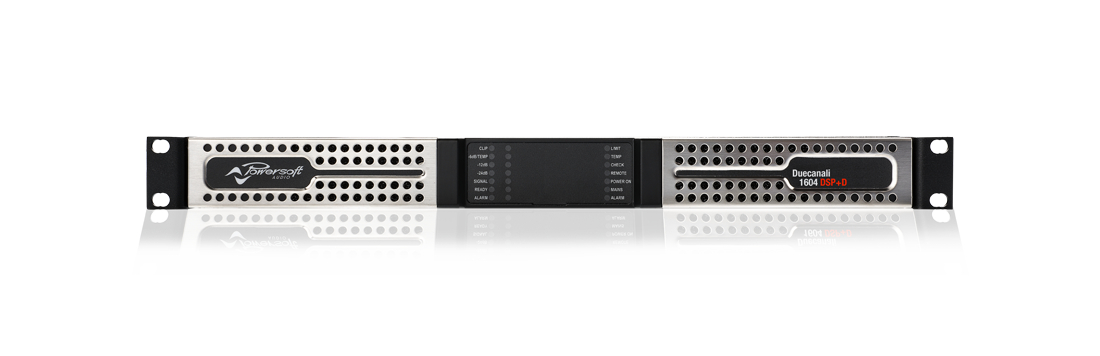

Powersoft Advanced Tech Duecanali 1604 DSP+DANTE
2-Channel High-Performance Amplifier Platform with DSP and Dante

OUR PART #:  DUECANALI-1604-DSP

The Duecanali 1604 is part of Powersoft's Duecanali series providing access to all functions, yet easy to set up, and versatile use.
Learn More
Our Price: $2,100.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Powersoft Advanced Tech Duecanali 1604 DSP+DANTE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Duecanali 1604 is part of Powersoft's Duecanali series providing access to all functions, yet easy to set up, and versatile use. Powersoft's legendary efficency delivers valuable energy savings, minimizing both operational cost and 'carbon footprint'. It's designed to work with lo-Z (from 2 Ohms) and with 70V/100V distributed lines: any mixed impedance output loads can be realized. It includes a fully integrated state-of-the-art DSP yielding extensive system management functionality. Along with sound-shaping and limiter functions in unique Powersoft style, the DSP hardware and Armonía Pro Audio Suite™ software enables compliance with IEC 60849 for the crucial requirements of sound systems used for emergency purposes.

Applications:

  • Small- to Medium-scale venues
  • Main systems, central or distributed, subwoofers, hi-Z/lo-Z
  • Emergency systems (IEC 60849)
  • Business centers
  • Theaters, concert halls
  • Houses of worship
  • Convention centers
  • Amusement parks, themed entertainment
  • Cruise ships

Powersoft Duecanali 1604 DSP+DANTE® Features:

Power supply

  • Universal switch mode power supply up to 400VAC tolerant with Power Factor Correction (PFC)
  • Patented output filter with ripple cancellation network
  • Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
  • Detachable AC mains cable with IEC C19/22.2 (16 A for EU, 20 A for USA) socket

Protections

  • Fully protected circuit design with:
    • AC protection
      Shuts down power supply when AC mains voltage is outside operating range
    • Clip limiter
      Prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
    • VHF protections
      Protects the loudspeakers against non audible, strong, non musical high frequency signals
    • Short circuit protection
      Protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
    • Long term limiter
      Protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
    • Thermal protection
      Output stages operating temperature up to 176 °F (80 °C)
    • Temperature-controlled continous variable-speed fan, front-to-back airflow

General

  • Fixed-frequency switchmode output stage for high grade sound accuracy
  • Compact 1 RU for reduced rack cost and space
  • Light weight - for easier racking and shipping: 15.4 lbs (7 kg)
  • Standard Phoenix connectors: analog and digital input, audio outputs, alarms, and GPIO
  • Remotely dimmable inputs per channel

Loudspeaker system configuration

  • Direct drive either low impedance loads or 70V / 100V Hi-Z distributed lines
  • Switchable 35Hz / 70Hz high pass filter per channel
  • Mixed configuration with Lo-Z/Hi-Z systems possible
  • Bridged mode low impedance per channel pair

Alarms and GPI/O

  • General Purpose Input/Output alarm interfaces:
    • Dangerous DC in the output power signal
    • Thermal stress
  • Configurable alarm contact NC/NO per channel
  • Remote ON/OFF switch

Digital Signal Processing

  • TI C6000 DSP platform
  • AD/DA converter: dual 24-bit @ 48 kHz Tandem® architecture
  • Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters, as well as custom output FIR filters
  • Delay up to 100 ms for time alignment
  • Active DampingControl™ for cable compensation
  • Peak, RMS voltage, RMS current, TruePower™ limiters

Remote management

  • Control and monitoring through Armonía Pro Audio Suite™
  • Dedicated Web App

Powersoft Duecanali 1604 DSP+DANTE Specifications:

General

  • Number of channels: 2

Output power

  • Single channel mode:
    • 2 Ohms: 1000 W
    • 4 Ohms: 800 W
    • 8 Ohms: 800 W
  • Distributed line:
    • 70V: 800 W
    • 100V: 800 W
  • Bridge mode:
    • 4 Ohms: 900W
    • 8 Ohms: 1000W
  • Max output voltage / current:
    • Single channel mode (@ 2/4/8 Ohms): 115 Vpeak/45 Apeak

AC Mains Power

  • Power supply: Redundant, universal, regulated switch mode with PFC
  • Nominal power requirement: 100-240 V ±10% @ 50-60 Hz
  • Operating voltage: 90 V - 264 V
  • Power consumption:
    • 115 V:
      • Idle: 23.1 W, 0.40 A
      • 1/8 of max output power @ 4 Ohms: 258.4 W, 2.7 A
      • 1/4 of max output power @ 4 Ohms: 554.4 W, 5.24 A
    • 230 V:
      • Idle: 24 W, 0.28 A
      • 1/8 of max output power @ 4 Ohms: 283.3 W, 1.78 A
      • 1/4 of max output power @ 4 Ohms: 549.2 W, 2.84 A

Thermal

  • Operating temperature range: 32° - 113° F (0° - 45° C)
  • Thermal dissipation:
    • 115 V:
      • Idle: 78.9 BTU/h, 19.9 kcal/h
      • 1/8 of max output power @ 4 Ohms: 291.6 BTU/h, 73.5 kcal/h
      • 1/4 of max output power @ 4 Ohms: 527.1 BTU/h, 132.8 kcal/h
    • 230 V:
      • Idle: 81.9 BTU/h, 20.6 kcal/h
      • 1/8 of max output power @ 4 Ohms: 291.2 BTU/h, 73.4 kcal/h
      • 1/4 of max output power @ 4 Ohms: 509.4 BTU/h, 128.4 kcal/h

Audio

  • Gain/Input Sensitivity (@ 8 Ohms):
    • 26dB / 4.0 V
    • 29 dB/ 2.84 V
    • 32 dB/ 2.0 V
    • 35 dB/ 1.42 V
  • Max input level: 20 dBu
  • Frequency Response ( ±0.5 dB , 1 W @ 8 Ohms): 20 Hz - 20 kHz
  • Crosstalk (1 kHz) typical: -70 dB
  • S/N (20 Hz - 20 kHz A-Weighted @ 8 Oms): > 109 dB
  • Input impedance: 20 kOhms balanced
  • THD+N (from 0.1 W to Full Power): < 0.1% (typical < 0.05%)
  • DIM (from 0.1 W to Full Power): < 0.05%
  • Slew Rate (input filter bypassed @ 8 Ohms): > 50 V/µs
  • Damping Factor @ 8 Ohms, 20 Hz - 100 Hz: > 500

DSP

  • DSP architecture: TI C6000 DSP platform
  • A/D Converter: 24-bit @ 48 kHz Tandem® architecture, 125 dB dynamic range
  • D/A Converter: 24-bit @ 48 kHz Tandem® architecture, 117 dB dynamic range
  • Internal precision: 32-bit floating point
  • Latency: 2.5 ms fixed latency architecture
  • Input equalizer: Raised-cosine, custom FIR, param. IIR: peaking, hi/lo-shelving, all-pass, band-pass, band-stop hi/lo-pass
  • Output equalizer: Linear phase (FIR), hybrid (FIR-IIR), Bessel: 6 dB/oct to 48 dB/oct (IIR)
  • Crossover: Butterworth, Linkwitz-Riley
  • Delay: up to 100 ms per output
  • Limiters: Peak, RMS voltage, RMS current, TruePower™
  • Damping control: Active DampingControl™, LiveImpedance™ measurement

Front panel

  • Indicators and Controllers:
    • (1) LED - Status
    • (1) LED - Over-temperature protection
    • (1) LED bar - Signal level + CLIP
    • (1) LED bar - Signal level and over-temperature protection
    • (1) Knob - Level attenuator (continuous)
    • (1) Push-button - Setting operating parameters
    • (1) Push-button - Preset selector
    • (1) DIP switch - Toggle energy save on/off per channel pair
    • (1) Power switch

Connectors

  • AC main: (1) IEC C20 connector - 20 A max (region-specific power cord provided)
  • Audio signal input: (2) 3-pin Phoenix MC 1.5/3-ST-3.81 - Signal input – MAIN
  • Alarm: (1) 12-pin Phoenix MC 1.5/12-ST-3.81 - Alarm connector
  • Remote command:(1) x 4 pin Phoenix MC 1.5/4-ST-3.81 - Remote on/off switch and aux voltage
  • Network/data:(1) USB plug - USB connection
  • (1) Rj45 socket - RS485 data connection (non-DSP version)
  • (1) Rj45 socket - DANTE

Rear panel

  • Indicators and Controllers:
    • (1) DIP switch - Toggle lo/hi impedance connection
    • (1) DIP switch - Toggle 70V/100V distributed line nominal voltage
    • (1) DIP switch - Toggle High Pass Filter
    • (1) DIP switch - Toggle 35Hz/70Hz HPF cutting frequency

Audio

  • Amplifier: Highly efficient Powersoft Class D circuitry

Communication

  • Wireless:
    • Standard IEEE 802.11 a,b,g,n,d, 2.4 and 5 GHz
    • Bluetooth
  • Wired: Ethernet 100 Mbit/s, PoE, via internal RJ45 port

GUI

  • Web Browser: On-board web server for mobile clients via Wi-Fi connection

Physical

  • Dimensions (LxHxW): 19.0" x 1.8" x 14.2" (483 x 44.45 x 360mm)
  • Weight: 15.4 lbs (7 kg)


*Note: All information, specifications, and data is subject to change without notice.
