Pathway Connectivity P9016
Front 5-pin XLR 8-way DMX Repeater

OUR PART #:  P9016

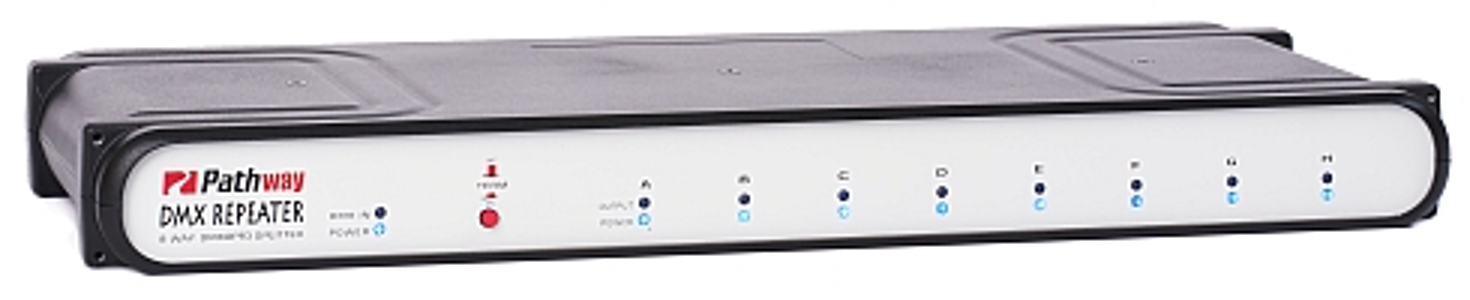

NOTE:  Image is for Illustrative Purposes Only!  The Pathway Connectivity 9016 is an 8 way DMX Repeater with a front 5-pin XLR.
Learn More
Our Price: $916.84
List Price: $990.00
You save 7%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Pathway Connectivity P9016
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

NOTE: Image is for Illustrative Purposes Only!

The Pathway Connectivity 9016 is an 8 way DMX Repeater with a front 5-pin XLR. It is an essential component of any DMX512 distribution system, permitting star wiring configurations while isolating and protecting connected equipment from harmful electrical faults, ground loops and common mode voltages.

Pathway Connectivity 9016 Features:

  • Silent operation
  • 8 outputs
  • Multiple connector options including RJ45
  • No fuses - we use self resetting data links
  • Field-serviceable - a spare transceiver and opto-coupler ships with every unit
  • Replacement transceivers and opto-couplers easily sourced from major electronic component suppliers
  • Passive DMX through
  • Termination switch2500V Opto isolation between input and output signals
  • 250V fault protection on inputs and outputs
  • Wide range power supply
  • DMX present indicator
  • E1.11 DMX512A compliant
  • Gold plated XLR contacts
  • Rugged cast aluminum housing
  • Ships with rack ears

Pathway Connectivity 9016 Specifications:

  • 85-250VAC 50/60 Hz wide-ranging power input
  • Operating Conditions: -10 to +50°C, 5-95% relative humidity, non-condensing
  • 0.75A power consumption
  • 2500V opto-isolation between all ports
  • 250V fault protection per port
  • Weight: 5.2 lb (2.4 kg)
  • Dimensions: 17" x 6" x 1.7" (432 x 150 x 40mm)
  • Compliance:
    • USITT DMX512 –1990 ANSI E1.11 DMX512-A R2013
    • ETL
    • CE
    • RoHS 2002/95/EC
