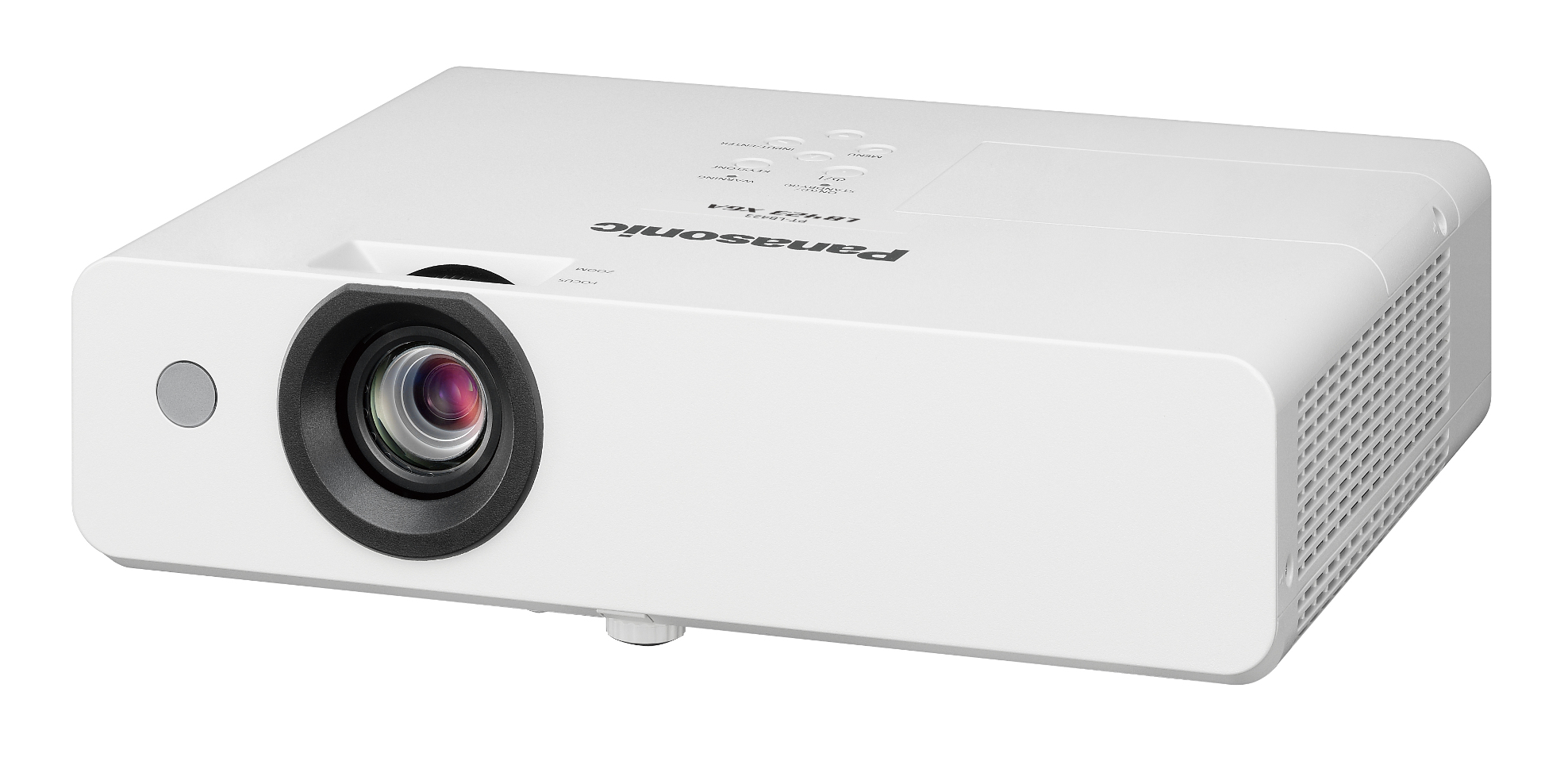

Panasonic PT-LB423U
4100 Lumen XGA LCD Portable Projector in White

OUR PART #:  PTLB423U

A portable projector with power that delivers low total cost of ownership is what you'll find with Panasonic's PT-LB423U portable projector.
Learn More
Our Price: $920.85
List Price: $1,199.00
You save 23%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Panasonic PT-LB423U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A portable projector with power that delivers low total cost of ownership is what you'll find with Panasonic's PT-LB423U portable projector. With maintenance-free lamp and filter replacement extended to a class-leading 10,000 hours*1, business professionals and educators can depend on this member of Pansonic's PT-LB423 Series for bright and clear visual communication wherever their day takes them. Weighing a little over 6 pounds (3 kg), and with set-and-project functionality, this wireless-ready*2 unit is built to impress.

NOTES:
*1 Lamp and filter life depends on environment and usage conditions.
*2 Requires optional ET-WML100 Wireless Module.

Panasonic PT-LB423U supplied accessories include: Wireless remote control unit, Power cord (Number and size of cords depends on region), CD-ROM (Instruction manual, Multi Monitoring Control Software), Instruction manual (Basic guide), Batteries for remote control (R03/LR03/AAA type battery x 2), RGB signal cable.

Panasonic PT-LB423U Features:

  • Brilliant Performance in a Compact Body:
    • High Brightness and Contrast for Clear, Comfortable Viewing
    • Bright Pictures in Artificial Light
    • Lower Maintenance Reduces TCO
    • Quiet 28 dB*6 Operation for Distraction-free Viewing (NOTE: *6 With lamp mode set to Eco2.)
  • Easy Setup and Management:
    • Corner Keystone Correction for Angled Projection
    • Curved Screen Correction
    • 1.2x Zoom Versatility
    • Simple Lamp and Filter Replacement
    • Multi-Projector Monitoring Capability
  • Pratical Features to Simplify Daily Usage:
    • Project Wirelessly with Optional Module
    • Memory Viewer Function
    • USB Display Function Projects Media Over USB Cable
    • HDMI and PC Inputs
  • Additional Features:
    • Multi Monitoring & Control Software
    • Startup Logo Function
    • Supports PJLink™ Protocol
    • Built-in 10 W* Speaker
    • Color-board and Blackboard Modes
    • Built-in Closed Caption Decoder
  • Eco-friendly Design:
    • No halogenated flame-retardants used in cabinet
    • Lead-free lens glass
    • Coating-free cabinet for recycling and end of life
    • Switchable lamp mode conserves energy

Panasonic PT-LB423U Specifications:

  • Power supply: AC 100–240 V, 3.5 A, 50 Hz/60 Hz
  • Power consumption: 300 W (6 W with Standby mode set to Normal, 0.5 W with Standby mode set to Eco*1)
  • LCD Panel:
    • Display method: Transparent LCD panel (x3, R/G/B)
    • Drive method: Active matrix method
    • Panel size: 0.63 in (16.0 mm) diagonal (4:3 aspect ratio)
    • Pixels: 786,432 (1024 x 768) pixels
  • Lens: Manual zoom (1.2x), manual focus lens F=1.6–1.76, f=19.16–23.02 mm, throw ratio: 1.48–1.78:1
  • Screen size (diagonal): 30-300 in (0.76–7.62m) diagonally, 4:3 aspect ratio
  • Resolution: 1024 x 768 pixels *3
  • Supported RGB signal: XGA–WUXGA
  • Supported video signal: NTSC/PAL/SECAM, 480p/i, 720p,1080p/i
  • Brightness*2: 4,100 lm (Lamp power: Normal)
  • Lamp: 230 W x 1 lamp
  • Lamp replacement cycle*4: Normal: 5,000 hours, Eco1: 6,000 hours, Eco2: 10,000 hours
  • Contrast*2: 16,000:1 (all white/all black, Iris: On, Image Mode: Dynamic, Lamp Control: Normal)
  • Keystone correction range: Vertical: ± 30 ° (Auto, Manual), Horizontal: ± 15 ° (Manual)
  • Installation: Ceiling/floor, front/rear
  • Operation noise*2: Normal: 37 dB, Eco1: 33 dB, Eco2: 28 dB
  • Cabinet materials: Molded plastic (PC)
  • Dimensions (W x H x D): 13 3/16" x 3 25/32" *6 x 9 29/32" (335 x 96 *5 x 252 mm)
  • Weight: Approx. 6.4 lbs (2.9 kg)
  • Operating environment: Operating temperature: 41–104 °F (5–40 °C) [Altitude: below 4,593 ft (1,400 m), High Land Mode: OFF]; 41–95 °F (5–35 °C) [Altitude: 4,593–8,858 ft (1,400–2,700 m), High Land Mode: On1]; 41–86 °F(5–30 °C) [Altitude: 8,858–9,843 ft (2,700–3,000 m), High Land Mode: On2], Operating humidity: 20–80 % (no condensation).

NOTES:
*1 When Standby Mode is set to Eco, network functions such as power on over LAN will not operate. Additionally, only certain commands can be received for external control A42 using the serial terminal.
*2 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards.
*3 Input signals that exceed supported resolution will be converted.
*4 The value for the recommended lamp replacement cycle is the maximum value, at which luminance will become 50 %. Usage environment affects the lamp replacement cycle.
*5 With legs at shortest position.
*6 Not supplied with PT-LB303.
